Acrel ADW210 Multi-circuit Power Meter Din Rail Electricity Meter For Remote Monitoring And Data Acquisition

Contact Now

Acrel ADW210 Multi-circuit Power Meter Din Rail Electricity Meter For Remote Monitoring And Data Acquisition

Minimum Order Quantity :	1	Price :	280USD
Delivery Time :	3-5	Supply Ability :	9999+

Place of Origin:	China	Brand Name:	Acrel
Model Number:	ADW210

Detail Information

Highlight:

Remote Monitoring Din Rail Electricity Meter

Data Acquisition Din Rail Electricity Meter

multi-circuit Din Rail Electricity Meter

Product Description

Product Description

ADW210 Multi Circuit energy Meter

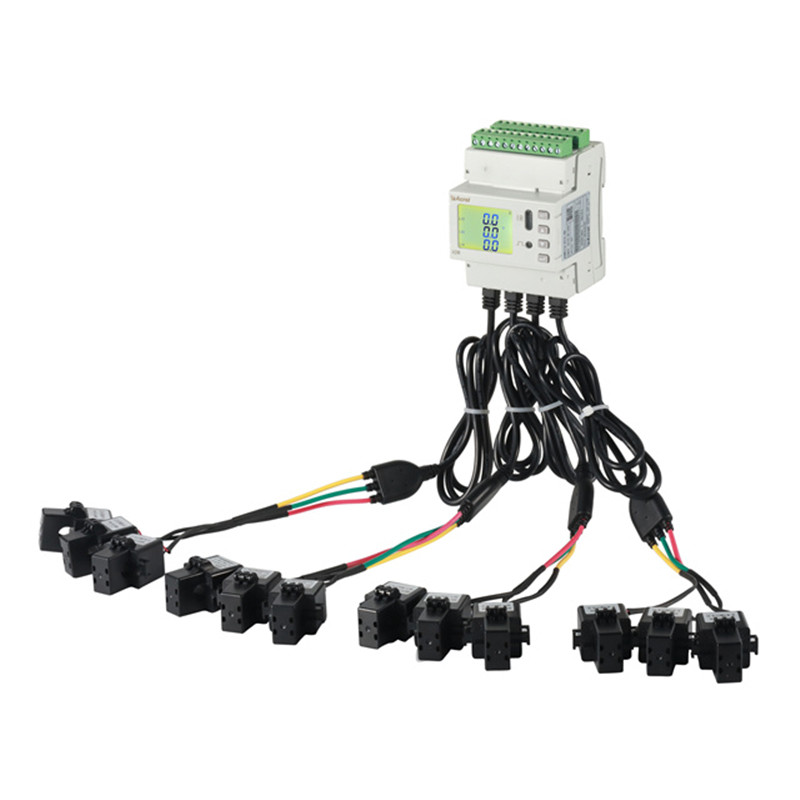

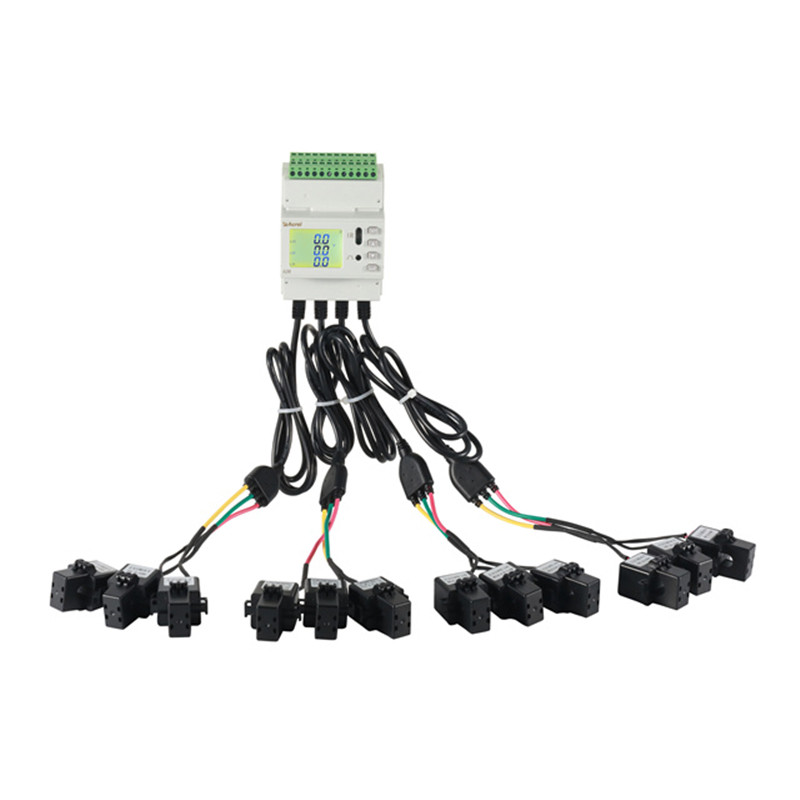

ADW210 series multi-loop power meter is mainly used for the measurement of all electric parameters of three-phase circuit.
Colleagues can select the current input of the maximum four circuits.

Auxiliary power		AC/DC 85～265V; Consumption≤10VA;
Input	Frequency	45～65Hz;
	Voltage	AC 3×220V/380V; Overload: 1.2 times of rated value (continuous); 2 times of rated value / 1s; Power consumption: ≤ 0.5VA;
	Current	AC 5A,100A,400A,600A;(External opening transformer); Power consumption: ≤ 0.5VA; Overload: 1.2 times of rated value (continuous); 10 times of rated value / 1s;
Measurement Accuracy		Frequency 0.05Hz, voltage,current Class 0.5; 2-31st harmonic accuracy: ± 1%; Active electric energy level 1, reactive electric energy level 2;
Features	Pulse Output	Output mode: optocoupler pulse with open collector;
	Communication	RS485,Modbus-RTU; Baud rate 1200～38400;
	Switching Input	Dry contact input,Built in power supply;
	Switching Output	Output mode: Relay normally open contact output; contact rating: AC 250V/3A DC 30V/3A;

Customized service

Main part dimension(L×W×H): 87.8*72*71.5mm
35mm Din rail installation; Tolerance: ±1mm

Module dimension(L×W×H): 87.8*36*71.5mm35mm Din

rail installation; Tolerance: ±1mm

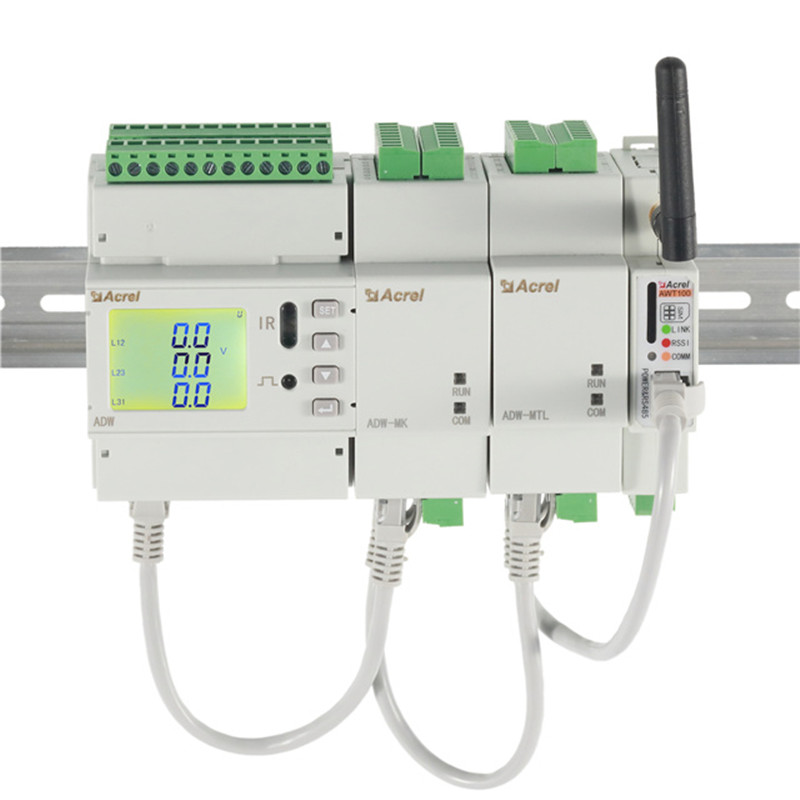

Optional Module

External Module (MTL)
12 External NTC Temp. Measurement
4 Channels Residual Current Measurement

External Wireless Module(AWT100)
Downlink RS485; Uplink 4G, 2G, NB, Lora, LoraWAN, Ethernet, WiFi, GPS, Profibus

External Module(MK)
12 Channels DI + 4 Channels DO

Certifications

Packaging & Shipping

Company Profile

Acrel Electric Co., Ltd. [Stock Code: 300286.SZ]

Founded in 2003, one of the few leading companies in China who provides various systematic solutions of power monitoring,powercontrol, energy management and electrical safety for smart grid users. Substation automation system, power quality managementsystem, energy management system, electrical fire monitoring system, IT distribution system for medical locations,precisedistribution management system, FEPS power supply monitoring system, fire emergency lighting and evacuate indicating system, smart lighting control system and electric vehicle charging system.

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory. Warmly welcome you to visit and investigate our factory.

Q: How long is your delivery time?
A: Generally it is 3-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to
quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for lower price. If you place the order, all or part of the sample charge will be deducted from
the goods. Please contact us.

Q: What is your terms of payment ?
A: Usually, 100%TT in advance. If you have projects for another payment terms, please feel free to contact us as below:
