CE Approved Three Phase Electronic Energy Meter RS485 Modbus For EV Charging
CE Approved Three Phase Electronic Energy Meter RS485 Modbus For EV Charging CE Approved Three Phase Electronic Energy Meter RS485 Modbus For EV Charging CE Approved Three Phase Electronic Energy Meter RS485 Modbus For EV Charging CE Approved Three Phase Electronic Energy Meter RS485 Modbus For EV Charging CE Approved Three Phase Electronic Energy Meter RS485 Modbus For EV Charging
Contact Now

CE Approved Three Phase Electronic Energy Meter RS485 Modbus For EV Charging

Minimum Order Quantity : >=1 Pieces Price : $76.30
Packaging Details : It is packed in a crash bag and then put into a cardboard box. Supply Ability : 100000 Piece/Pieces per Month
Place of Origin: Jiangsu, China Brand Name: Acrel
Model Number: ADL3000-E/C

Detail Information
Display Type: Analog And Digital Phase: Three Phase
Measuring Energy Range: 0-999999.99 KWh Accuracy Class: 0.5S
Output Voltage: AC100V/220V/380V Operating Temperature: -20~60℃
Dimensions: 127*88*70 Mm Communication: RS485 Modbus-RTU
Reference Frequency: 50Hz Port: Shanghai
High Light:

CE Three Phase Electronic Energy Meter

,

RS485 Modbus Three Phase Electronic Energy Meter

,

RS485 Modbus 3 phase digital energy meter

Product Description

din rail three phase electricity energy meter RS485 Modbus for EV charging CE approved





Product Description

ADL3000-E/C three phase electric meter is designed for three phase energy measurement on low voltage system.The meter meet the related technical requirement of electronic meter in the IEC62053-21, IEC62053-22standards.
CE Approved Three Phase Electronic Energy Meter RS485 Modbus For EV Charging 0
CE Approved Three Phase Electronic Energy Meter RS485 Modbus For EV Charging 1
CE Approved Three Phase Electronic Energy Meter RS485 Modbus For EV Charging 2
Function & Parameter
Model
ADL3000-E/C
Phase
Three phase
Rated voltage
AC100V/220V/380V
Consumption
<10VA
Reference frequency
50HZ
Maximum current
6A 80A
Starting current
0.0041b
Consumption
<1VA

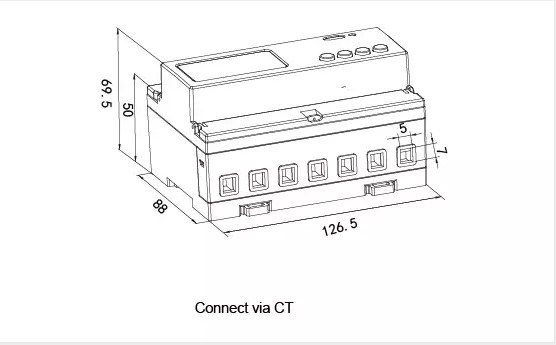

L*W*H(mm)
127*88*70 mm
Accuracy
Class 0.5S
Mounting
Din rail 35mm
Communication
RS485-MOBUS
Working temperature
-20℃~+60℃
Storage temperature
-30℃~+70℃
Humidity
≤95%(without condensation)
Altitude
<2000m
Wiring
CE Approved Three Phase Electronic Energy Meter RS485 Modbus For EV Charging 3
CE Approved Three Phase Electronic Energy Meter RS485 Modbus For EV Charging 4
Related Products
CE Approved Three Phase Electronic Energy Meter RS485 Modbus For EV Charging 5
CE Approved Three Phase Electronic Energy Meter RS485 Modbus For EV Charging 7
CE Approved Three Phase Electronic Energy Meter RS485 Modbus For EV Charging 9
CE Approved Three Phase Electronic Energy Meter RS485 Modbus For EV Charging 11
Packing & Delivery
CE Approved Three Phase Electronic Energy Meter RS485 Modbus For EV Charging 13
CE Approved Three Phase Electronic Energy Meter RS485 Modbus For EV Charging 14
It is packed in a crash bag and then put into a cardboard box.
Company Profile

CE Approved Three Phase Electronic Energy Meter RS485 Modbus For EV Charging 15
CE Approved Three Phase Electronic Energy Meter RS485 Modbus For EV Charging 16
CE Approved Three Phase Electronic Energy Meter RS485 Modbus For EV Charging 17
CE Approved Three Phase Electronic Energy Meter RS485 Modbus For EV Charging 18
CE Approved Three Phase Electronic Energy Meter RS485 Modbus For EV Charging 19
CE Approved Three Phase Electronic Energy Meter RS485 Modbus For EV Charging 20
Jiangsu Acrel Electric Co.,LTD [Stock Code:300286.SZ ] is one of the few leading companies in China who provides various systematic of power monitoring, power control, energy management and electrical safety for smart grid users. Since June2003, we have always been focused on the research, production and sales of intelligent electric meters. We concentrate on providing products and services to help customers improve electricity and safety. So far we had the following comprehensive solutions for different applications: 35(10)/0.4KV substation automation system, building mounted photovoltaic(BMPV)system, power quality management system, energy management system, electrical fire monitoring system, IT distribution system for medical locations, precise distribution management system, power supply monitoring system for fire protection equipment, fire emergency lighting and evacuate indicating system, fire resistant doorsets monitoring system, smart lighting control system, Lithium battery management system and electric vehicle charging system.
Certifications
CE Approved Three Phase Electronic Energy Meter RS485 Modbus For EV Charging 21
FAQ
1. Where is your factory located ?
Our production base is located in Jiangyin City, Jiangsu Province, China;

2. How long would your equipment be used?
Generally, more than 10 years.

3. How long could I get my order?
Stock Products: shipping within 5 days.
Customized products: usually 10-15 days. It depends on your design and quantity.

4. What certificate do you have?
We have ISO9001, CE, IEC and so on.

5. Can I get a sample to check the quality?
Samples are no problem. We are glad to offer you some for test.

6. What's your MOQ?
At least one pcs.
