KWh Class 1 ADL200 Din Rail Energy Meter With Digital LCD Display
Contact Person : Dina Huang
Phone Number : 18761502682
WhatsApp : +8618761502682
| Minimum Order Quantity : | 1 | Price : | USD 5-9 PCS |
|---|---|---|---|
| Packaging Details : | 28X25X20 cm | Delivery Time : | 5-8 work days |
| Payment Terms : | L/C, T/T | Supply Ability : | 2000000 per year |
| Place of Origin: | Jiangsu, China | Brand Name: | ACREL |
|---|---|---|---|
| Certification: | ISO/CE | Model Number: | ADL |
|
Detail Information |
|||
| Phase: | Single Phase | Communication: | RS485 (Modbus-RTU) |
|---|---|---|---|
| Accuracy: | KWh Class 1,Kvarh Class 2 | Installation: | Din 35mm |
| High Light: | MODBUS RTU din rail single phase energy meter,220V 50HZ din rail single phase energy meter,ADL10-E Electronic Energy Meter |
||
Product Description

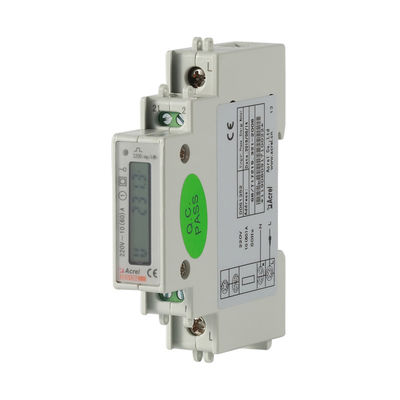

ADL10-E Single Phase Electric Energy Meter
● AC 220V
● 10(60)A
● RS485,MODBUS-RTU
● LCD display
● kWh Class 1,Kvarh Class 2
● U,I,P,Q,S,PF,kWh,kvarh
● DIN 35mm
Characteristic
Communication
RS485
(Modbus-RTU)
Display
8 digits LCD display U, I, P, Q, PF, kWh, Power measure (999999.99kWh)
Rated U and I
AC220V
10(60)A
Function
| Accuracy kWh Class 1,Kvarh Class 2 Frequency 50HZ Auxiliary power supply(self supply) AC 220V(L-N),range:154~264Vac Consumption <10VA(Single phase) |
|
|
Installation |
LCD Display
Wiring
Typical connection
