KWh Class 1 ADL200 Din Rail Energy Meter With Digital LCD Display

Contact Now

Detail Information

Highlight:

ADL200 Din Rail Energy Meter

KWh Class 1 Din Rail Energy Meter

ADL200 kwh energy meter

Product Description

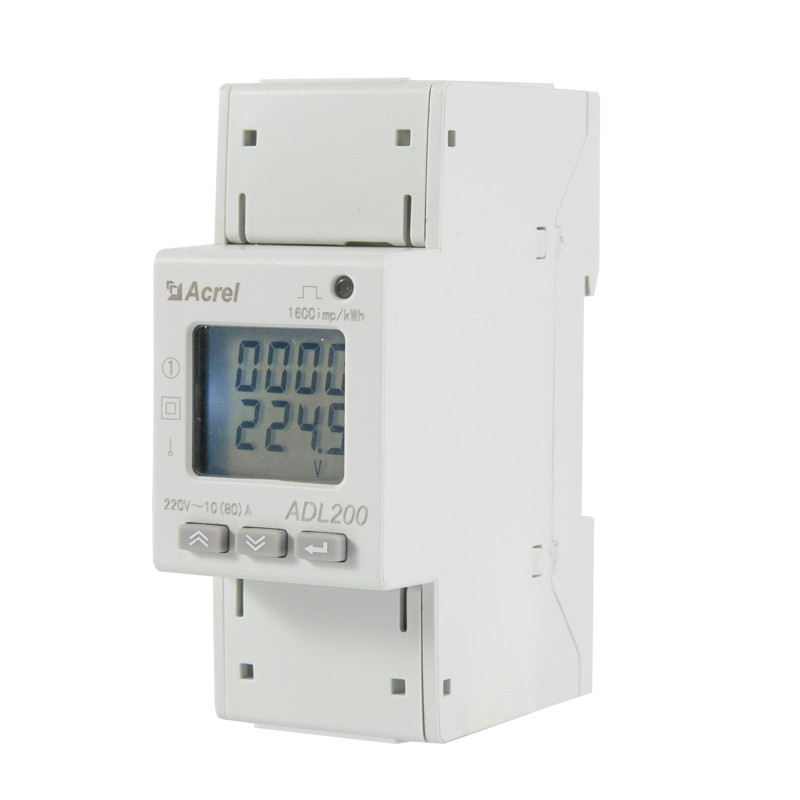

ADL200 Din Rail Energy Meter

● AC220V

● 10(80)A

● RS485(MODBUS-RTU)

● Set parameters

● LCD display

● kWh Class 1

● DIN 35 mm

Characteristic

Communication	Display	Rated U and I
RS485 (Modbus-RTU)	8 digits LCD display U, I, P, Q, PF, kWh, Power measure (999999.99kWh)	AC220V 10(80)A

Function

Accuracy kWh

Class 1

Frequency

45~65Hz

Power Supply

(self suppy) 154~264Vac

Pulse output

kWh

Input consumption

<4VA

KWh Class 1 ADL200 Din Rail Energy Meter With Digital LCD Display 3

KWh Class 1 ADL200 Din Rail Energy Meter With Digital LCD Display 4

Dimension(LWH)

90*36*65mm

Installation

DIN 35 mm

Clock Error

≤0.5s/d

Starting current

0.04A

LCD Display

KWh Class 1 ADL200 Din Rail Energy Meter With Digital LCD Display 5

Wiring

KWh Class 1 ADL200 Din Rail Energy Meter With Digital LCD Display 6

Typical Connection

KWh Class 1 ADL200 Din Rail Energy Meter With Digital LCD Display 7
