KWh Class 1 ADL200 Din Rail Energy Meter With Digital LCD Display
Contact Person : Dina Huang
Phone Number : 18761502682
WhatsApp : +8618761502682
| Minimum Order Quantity : | 1 Piece | Price : | $60.90 / Piece |
|---|
| Place of Origin: | Jiangsu, China | Brand Name: | Acrel |
|---|---|---|---|
| Model Number: | ACR10R-D16TE |
|
Detail Information |
|||
| Display Type: | Digital Only | Phase: | Single Phase |
|---|---|---|---|
| Measuring Energy Range: | 0-999999 | Accuracy Class: | Class 0.5 |
| Output Voltage: | 220V | Operating Temperature: | -10~+55℃ |
| Dimensions: | 54mm*74mm*85mm | Product Name: | Din Rail Single Phase Power Energy Meter |
| Brand: | OEM ODM | Power Supply: | AC85~265V Or DC100~350V; |
| Rated Voltage: | AC 100V, 400V | Rated Frequency: | 45-65HZ |
| Display: | LCD | Communication: | RS485 Modbus-rtu |
| Appilicaiton: | Single Phase | Rated Current: | 10A,20A,40A,80A,120A,200A Etc. |
| Certificate: | CE ROHS LVD EMC | Selling Units: | Single Item |
| Single Package Size : | 10X10X15 Cm | Single Gross Weight: | 0.600 Kg |
| Package Type: | Products Are Packed In Carton Box With Air Bubble Fim | ||
| High Light: | Acrel Din Rail Energy Meter,Acrel 1 phase energy meter,300286.SZ Din Rail Energy Meter |
||
Product Description

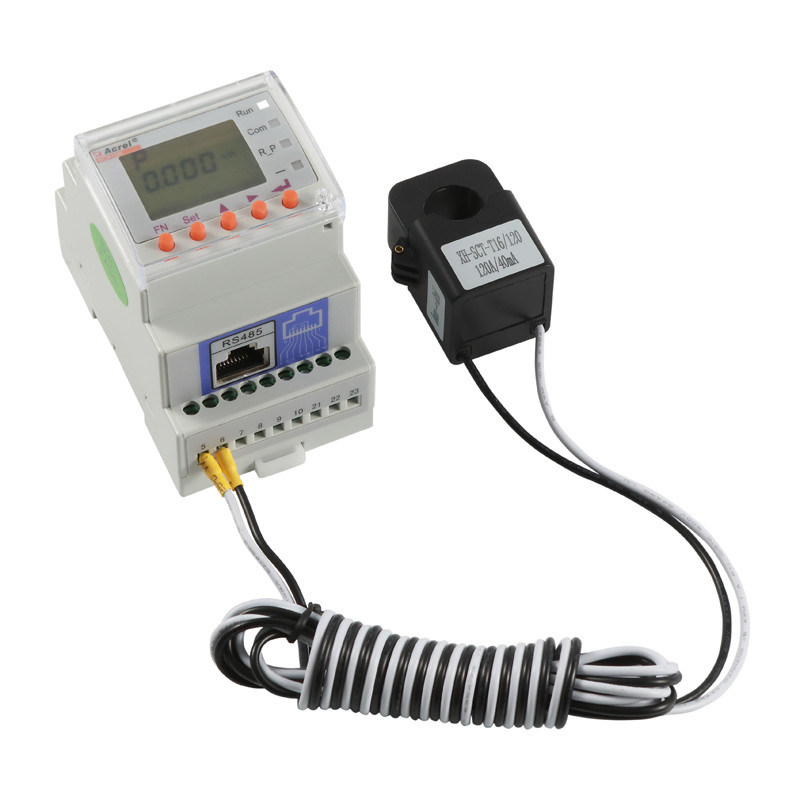

single phase energy meter with one CT for solar energy storage system
The rail-type multifunction electrical instrument with external Rogowski coil and split-core current transformer is applicable for the energy-saving reconstruction project in high energy consumption industries including the smelting, iron and steel, welding and semi-conductor industry.
It is also suitable for applications such as the power monitoring of grid-connected cabinet for distributed photovoltaic power cabinet and energy demand management. It boasts of no need of bus removal, easy connection and safe construction, saving reconstruction cost and raising efficiency for the user.
It integrates the measurements of all electric parameters (including single-phase or three-phase current, voltage, active power, reactive power, apparent power, frequency and power factor)and comprehensive energy monitoring and examination management. Meanwhile, it also has various peripheral interfaces for the user to choose: the RS485 communication interface with MODBUS-RTU protocol can meet the need of online communication management; the interfaces with switch input and relay output can realize the remote signalling and remote control of the circuit breaker switch. It is very suitable for real-time power monitoring system with an LCD display and the panel buttons to realize the setting and control of parameters.
|
Technical parameters |
Indicators |
|
Phase |
Single-phase |
|
Frequency |
45~65Hz |
|
Rated voltage |
AC 100V, 400V |
|
Overload |
1.2 times the rated voltage(continuous); 2 times the rated voltage lasting for 1 second |
|
Power consumption |
less then 0.2VA |
|
Rated current |
10A,20A,40A,80A,120A,200A etc. (for details see product specifications) |
|
Overload |
1.2 times the rated current(continuous);10 times the rated current lasting for 1 second |
|
Communication |
RS485 interface, Modbus-RTU |
|
Display |
LCD |
|
Measurement precision |
Voltage: 0.2 level, current, power Active energy: 0.5 level,0.01Hz |
|
Power supply |
AC85~265V or DC100~350V; power consumption ≤10VA |
|
Power frequency |
AC2kV 1 min |
|
Insulating |
>100MΩ |
|
Working temperature |
-10℃~+55℃ |
|
Storage temperature |
-20℃~+70℃ |
(Note: The connection diagram on the instrument housing shall prevail in case of any discrepancies
with it)
It is recommended to use 0.5A or 3A for the fuse in the connection diagram;
RS485 communication terminal connection can use either RJ45 female or normal connector
