KWh Class 1 ADL200 Din Rail Energy Meter With Digital LCD Display
Contact Person : Dina Huang
Phone Number : 18761502682
WhatsApp : +8618761502682
| Minimum Order Quantity : | 1 | Price : | USD+15-80+pcs |
|---|---|---|---|
| Packaging Details : | 48*45.5*20 | Delivery Time : | 5-8 work days |
| Payment Terms : | L/C, T/T | Supply Ability : | 6000000+pcs+per year |
| Place of Origin: | Jiangsu, China | Brand Name: | Acrel |
|---|---|---|---|
| Certification: | ISO/CE | Model Number: | ADL400 |
|
Detail Information |
|||
| Phase: | 3 | Accuracy Class: | 0.5S |
|---|---|---|---|
| Communication: | RS485(MODBUS-RTU) | Display: | LCD |
| High Light: | KWh Class 0.5 Din Rail Energy Meter,Din Rail Energy Meter ADL400,KWh Class 0.5 three phase energy meter |
||
Product Description

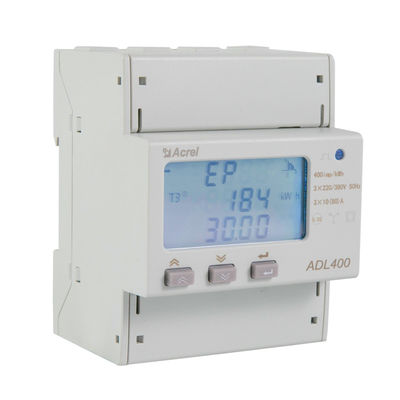

ADL400 din rail energy meter
● AC 3×220/380V,3×380V,3×57.7/100V,3×100V
● 3×1(6)A,3×10(80)A
● U,I,P,Q,S,PF,kWh,kvarh
● RS485(MODBUS-RTU)
● LCD display
● kWh Class 0.5S,kVarh Class 2
Characteristic
|
|
|
| Communication | Display | Rated U and I |
| RS485 (Modbus-RTU) |
12 digits LCD display U, I, P, Q, PF, kWh and other energy consumption Power measure (999999.99kWh) |
AC 3×100V, 3×380V, 3×57.7/100V 3×220/380V; 3×1(6)A, 3×10(80)A |
LCD Display
Function
|
Accuracy kWh: Class 0.5S,kVarh:Class 2
Frequency 50/60HZ(Optional),range: 45~65HZ
Pulse output Pulse output kWh/kvarh
Consumption <1VA(Single phase) |
|
|
Installation DIN 35mm
Dimension(L*W*H) 90*72*65mm
Switch relay Magnetic latching relay(ADL3000-E build-in)
Clock ≤0.5s/d
Starting current Direct connect: 0.01 Connect via CT: 0.001 |
Wiring
Typical connection
Parameters
