KWh Class 1 ADL200 Din Rail Energy Meter With Digital LCD Display
Contact Person : Dina Huang
Phone Number : 18761502682
WhatsApp : +8618761502682
| Minimum Order Quantity : | 1 | Price : | USD 5-9 PSC |
|---|---|---|---|
| Packaging Details : | 28X25X20 cm | Delivery Time : | 3 work days |
| Payment Terms : | L/C, T/T | Supply Ability : | 2000000 per year |
| Place of Origin: | Jiangsu,China | Brand Name: | Acrel |
|---|---|---|---|
| Certification: | ISO/CE | Model Number: | ADL100-ET |
|
Detail Information |
|||
| Phase: | Single Phase | Communication: | RS485 (Modbus-RTU) |
|---|---|---|---|
| Display: | LCD | Accuracy: | KWh Class 1,Kvarh Class 2 |
| Installation: | Din 35mm | ||
| High Light: | ADL100-ET Single Phase Digital Energy Meter,AC220V Single Phase Digital Energy Meter,ADL100-ET Multi Function Energy Meter |
||
Product Description

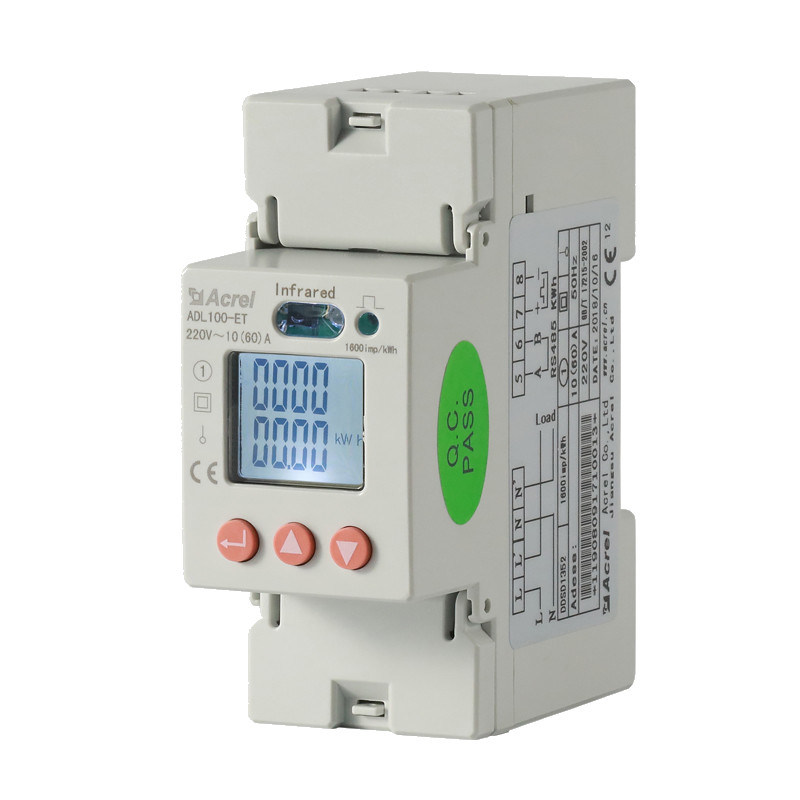

ADL100-ET Single Phase Multi-Function Energy Meter
● AC220V
● 10(60)A,20(100)A
● RS485(MODBUS-RTU)
● Set parameters
● LCD display
● kWh Class 1
● DIN 35 mm
Characteristic
Function
| Accuracy kWh Class 1,Kvarh Class 2 Frequency 50HZ Auxiliary power supply(self supply) AC 220V(L-N),range:154~264Vac Consumption <10VA(Single phase) |
|
|
Installation
DIN 35mmDimension(L*W*H) 18*88*70 mm Starting current 0.004Ib |
Parameters
|
Voltage
|
Reference voltage
|
AC 220V
|
||
|
Reference frequency
|
45-65 Hz
|
|||
|
Consumption
|
<10VA( Single phase)
|
|||
|
Current
|
Maximum
|
60A
|
||
|
Starting current
|
0.004 Ib
|
|||
|
Consumption
|
<4VA(Maximum current)
|
|||
|
Measurement performance
|
Accuracy of active kWH
|
Class 1
|
||
|
Standards complicant
|
IEC 62053-21:2003
|
|||
|
Pulse
|
Pulse width
|
80+20 ms
|
||
|
Pulse constant
|
3200 imp/kWH
|
|||
|
Communication
|
Interface
|
RS485
|
||
|
Protocol
|
Modbus-RTU
|
|||
|
Outling
|
L*W*H(mm)
|
36*88*70
|
||
|
Environment
|
Temperature
|
Operating:-25℃~55℃；Storage:-40℃~70℃
|
||
|
Humidity
|
≦95% (No condensation)
|
|||
|
Altitude
|
<2000m
|
|||
LCD Display
Wiring
Typical connection
