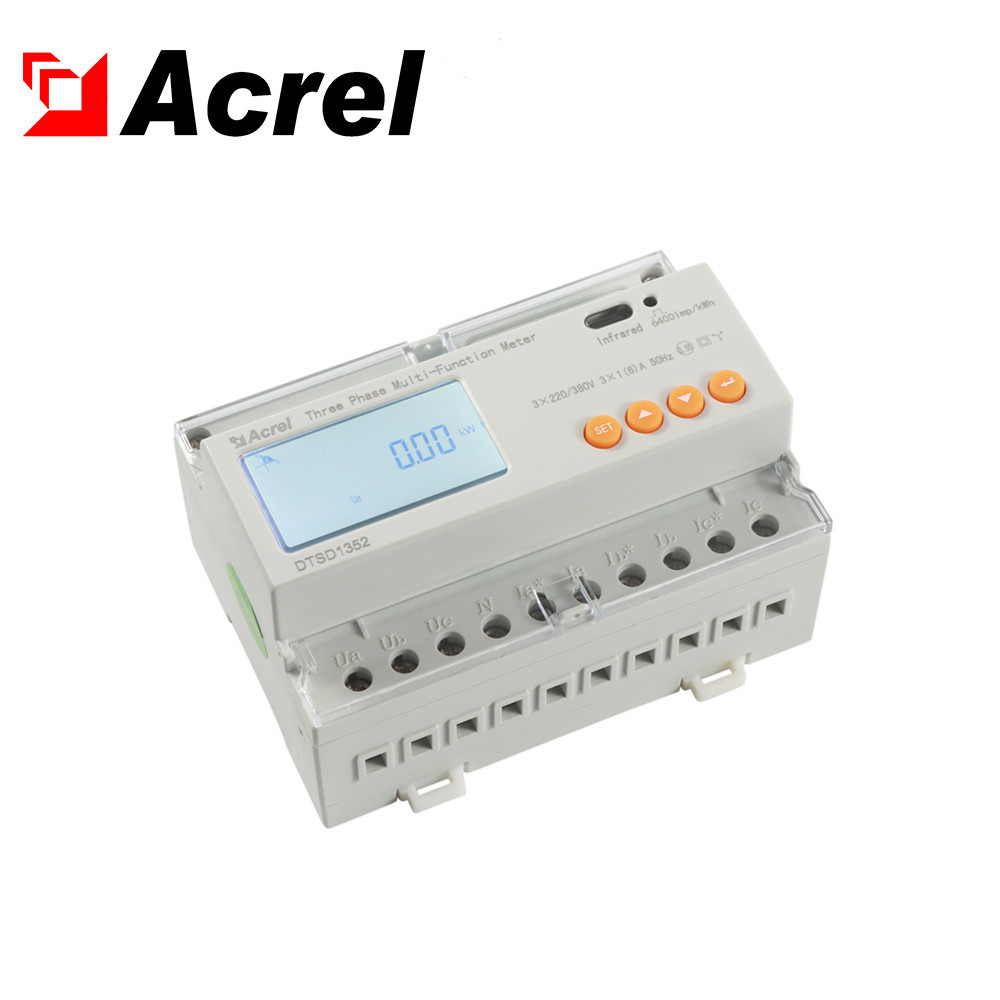

ADL3000-E Three Phase Multi-Function Din Rail Energy Meter



General:



ADL3000-E is a smart meter designed for power supply system, industrial and mining enterprises and utilities to calculate the electricity consumption and manage the electric demand. It features the high precision, small size and simple installation. It integrates the measurement of all electrical parameters with the comprehensive electricity metering and management provides various data on previous 12 months, checks the 31st harmonic content and the total harmonic content, realizes the remote communication and the remote control with switching input and relay output and boasts the alarm output. It is fitted with RS485 communication port and adapted to MODBUS-RTU. ADL3000-E can be used in all kinds of control systems, SCADA systems and energy management systems.





Features:



● AC 3×220/380V, 3×380V, 3×57.7/100V, 3×100V;
● 3×1(6)A,3×10(80)A;
● U,I,P,Q,S,PF,kWh,kvarh;
● RS485(MODBUS-RTU);
● LCD display;
● Frozen data;
● 2-31st Harmonics;
● Alarm;
● kWh Class 0.5S, kVarh Class 2;

Technical parameters


Specification 3 phase 3 wires, 3 phase 4 wires
Voltage Reference voltage 3×100V, 3×380V,3×57.7/100V, 3×220/380V
Consumption <10VA(Each phase)
Impedance >2MΩ
Accuracy class Error±0.2%
Current Input current 3×1(6)A,3×1(6)A(Outlay transformer),3×10(80)A,3×10(100)A(Outlay transformer)
Consumption <1VA(Each phase rated current)
Accuracy class Error±0.2%
Power Active, reactive, apparent power, error±0.5℅
Frequency 45~65Hz, Error±0.2%
Temperature -40℃~99℃
Energy Active energy(Accuracy class:0.5, 1), reactive energy(Accuracy class 2)
Clock ≤0.5s/d
Energy pulse output 1 active optocoupler output, 1 reactive optocoupler output
Switching output 1 Switching output, Maximum allowed voltage: DC/AC 220V
Switching input 1 optocoupler input,Maximum allowed voltage: DC/AC 220V
Width of pulse 80±20ms
Pulse constant 6400imp/kWh,400imp/kWh(Correspond with the basic current)
Interface and communication RS485:Modbus RTU
Range of communication address Modbus RTU:1~ 247;
Baud rate 1200bps~19200bps
Relative temperature -25℃~+55℃
Relative humidity ≤95℅(No condensation)



Description


1. Functions:
