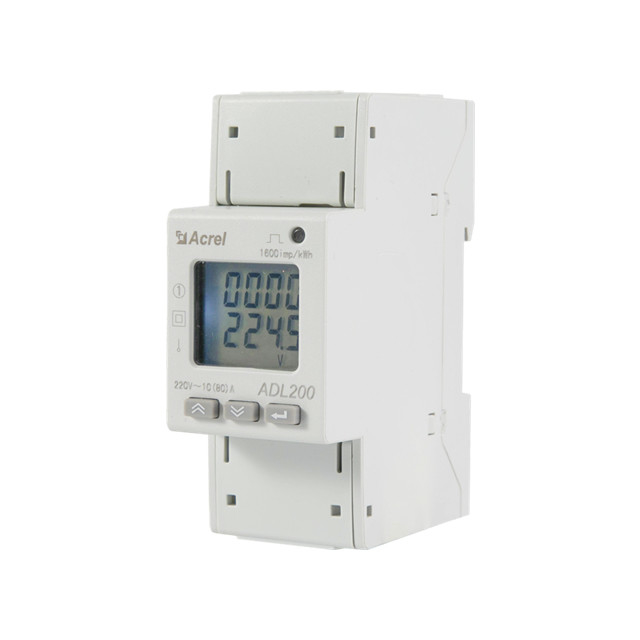

ADL200 DIN Rail Energy Electric Meter

Minimum Order Quantity : 1 Pieces Price : 5usd/pc
Delivery Time : 2-3 days Payment Terms : T/T
Supply Ability : 5000pcs/day
Place of Origin: China Brand Name: Acrel
Certification: MID Model Number: ADL200

Detail Information

Measurement: 1-phase AC KWh, Active Power, Current, Voltage Accuracy: 1.0% (kWh)
Frequency: 45~65Hz Rated Voltage: 220~264Vac (direct Connect)
Rated Current: 10(80)A AC (direct Connect) Communication: RS485 (MODBUS-RTU)
Dimension: 90*36*65mm (L*W*H) Installation: 35mm DIN Rail
High Light:

DIN Rail electric Meter

,

electric Meter ADL200

,

DIN Rail Energy electric Meter

Product Description

General


Acrel Din Rail Single Phase AC Energy Meter is designed for power supply system, industrial and mining enterprises and utilities to calculate the electricity consumption and manage the electric demand. It features the high precision, small size and simple installation. It integrates the measurement of all electrical parameters with the comprehensive electricity metering.



Features




Diverse Electricity Parameters Measurement

● U (Voltage)

● I (Current)

● P (Power)

● Q (Reactive power)

● S (Apparent power)

● PF (Power factor)

● kWh (Kilowatt-hours)

● kVarh (Kilovar-hours)

ADL200 DIN Rail Energy Electric Meter 0



Multi-rate/Flexible Tariff

● 4 Time zone

● 4 Tariff rate (Spike, Peak, Flat, Valley)

● 2 Time period list

● 14 Time period by day

ADL200 DIN Rail Energy Electric Meter 1



HMI for Parameters Setting

● Code

● Protocol

● Address

● Baud rate

● Parity

● All Display

ADL200 DIN Rail Energy Electric Meter 2



LCD Display

● 8 digits

ADL200 DIN Rail Energy Electric Meter 3



Technical parameter


Input voltage

Reference voltage

AC 220V
Reference frequency 50Hz
Power consumption <10VA
Input current Basic current

10A

Maximum current 80A
Starting current 4‰Ib
Consumption <4VA
Measurement performance

Accuracy of measuring

1 class
Range of measuring 000000.00~99999999kWh
Clock accuracy Error≤0.5s/d
Active pulse Pulse width

80±20ms

Pulse constant 1000imp/kWh
Communicati on

Interface

RS485(A+,B-)
Connection mode

Shielded twisted pair conductors

Protocol MODBUS-RTU

Wiring


ADL200 DIN Rail Energy Electric Meter 4

Dimension


ADL200 DIN Rail Energy Electric Meter 5

Certification


ADL200 DIN Rail Energy Electric Meter 6

Network


ADL200 DIN Rail Energy Electric Meter 7
