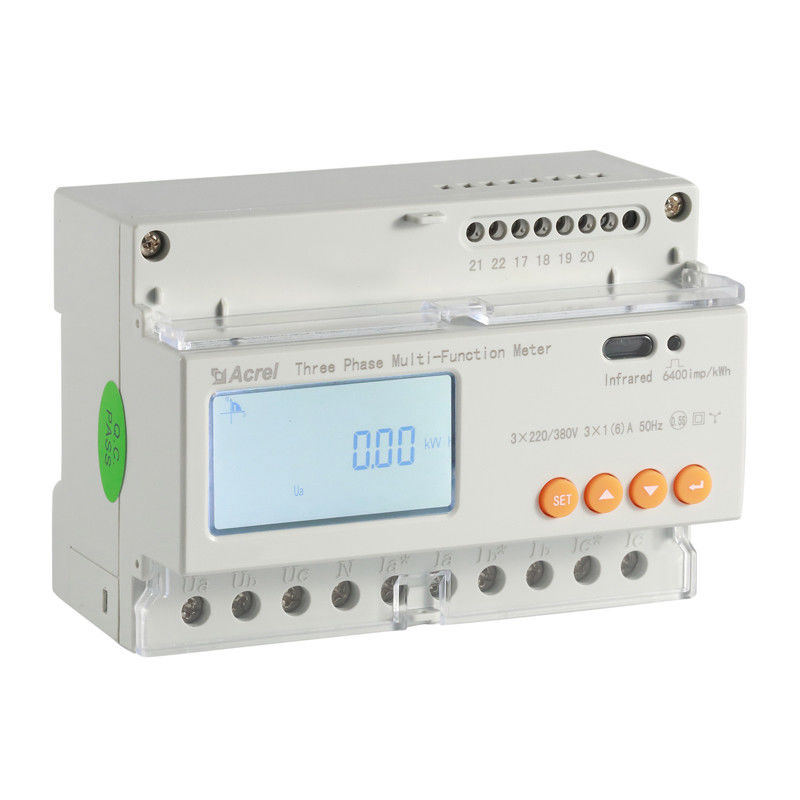

Acrel DTSD1352-CT 3 Phase Kwh Meter Din Rail Multifunction Power Meter Multi Tariff Kwh Meter With External Cts

Minimum Order Quantity : 1pc Packaging Details : carton
Delivery Time : 5-8 work days Payment Terms : T/T
Supply Ability : 5000pc/day
Place of Origin: China Brand Name: Acrel
Certification: CE Model Number: DTSD1352-CT

Detail Information

Accuracy Class:: 0.5S Reference Frequency: 80-99A
Maximum Current: 6A,80A
High Light:

multi tariff kwh meter

,

Multifunction Power Meter

,

3 phase kwh meter

Product Description

DTSD1352 Three Phase Multi-Function Energy Meter



General



DTSD1352 power analyzer specializes in measuring the data of all kinds of AC networks. It can be used for local display, or it is connected with the control equipment in measuring and controlling system. They comply EN 61326:2006 and EN 61010-1:2001.

They are a kind of programmable analyzer. With the 2 key on the front, we can choose to read the data that we need. They can be equipped RS-485 communication Modbus-RTU.
They are a kind of analyzer with excellent cost performance, since they regroup the functions of traditional electric transmitter and digital meters. Therefore they are widely being used in kinds of control system, SCADA system and power management system.



Features



● AC 3×220/380V,3×380V,3×57.7/100V,3×100V
● 3×1(6)A,3×10(80)A
● U,I,P,Q,S,PF,kWh,kvarh
● RS485(MODBUS-RTU)
● LCD display
● Frozen data
● 2-31st Harmonics
● Alarm
● kWh Class 0.5S,kVarh Class 2

Technical parameters


Specification 3 phase 3 wires, 3 phase 4 wires
Voltage Reference voltage 3×100V, 3×380V,3×57.7/100V, 3×220/380V
Consumption <10VA(Single phase)
Impedance >2MΩ
Accuracy class Error±0.2%
Current Input current 3×1(6)A,3×1(6)A(Outlay transformer),3×10(80)A,3×10(100)A(Outlay transformer)
Consumption <1VA(Single phase rated current)
Accuracy class Error±0.2%
Power Active, reactive, apparent power, error±0.5℅
Frequency 45~65Hz, Error±0.2%
Temperature -40℃~99℃
Energy Active energy(Accuracy class:0.5, 1), reactive energy(Accuracy class 2)
Clock ≤0.5s/d
Energy pulse output 1 active optocoupler output, 1 reactive optocoupler output
Switching output 1 Switching output, Maximum allowed voltage: DC/AC 220V
Switching input 1 optocoupler input,Maximum allowed voltage: DC/AC 220V
Width of pulse 80±20ms
Pulse constant 6400imp/kWh,400imp/kWh(Correspond with the basic current)
Interface and communication RS485:Modbus RTU
Range of communication address Modbus RTU:1~ 247;
Baud rate 1200bps~19200bps
Relative temperature -25℃~+55℃
Relative humidity ≤95℅(No condensation)



Functions


Acrel DTSD1352-CT 3 Phase Kwh Meter Din Rail Multifunction Power Meter Multi Tariff Kwh Meter With External Cts 0Acrel DTSD1352-CT 3 Phase Kwh Meter Din Rail Multifunction Power Meter Multi Tariff Kwh Meter With External Cts 1





Frontal panel


Acrel DTSD1352-CT 3 Phase Kwh Meter Din Rail Multifunction Power Meter Multi Tariff Kwh Meter With External Cts 2



With WEB/Platform


Acrel DTSD1352-CT 3 Phase Kwh Meter Din Rail Multifunction Power Meter Multi Tariff Kwh Meter With External Cts 3





Contact us


Acrel DTSD1352-CT 3 Phase Kwh Meter Din Rail Multifunction Power Meter Multi Tariff Kwh Meter With External Cts 4
