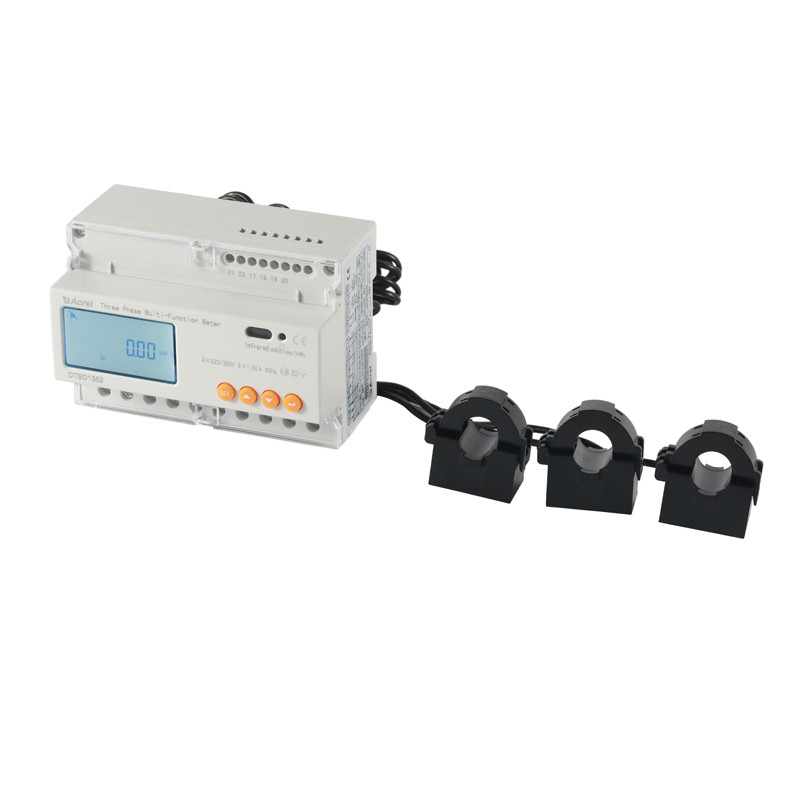

Acrel DTSD1352-CT Three Phase DIN Rail Mounting Energy Meter LCD Display 3 CT Current Under 5A

Minimum Order Quantity : 1pc Packaging Details : carton
Delivery Time : 5-8 work days Payment Terms : T/T
Supply Ability : 5000pc/day
Place of Origin: China Brand Name: Acrel
Certification: CE Model Number: DTSD1352-CT

Detail Information

Accuracy Class:: 0.5S Reference Frequency: 80-99A
Maximum Current: 6A,80A
High Light:

5A Three Phase Energy Meter

,

LCD Display Three Phase Energy Meter

Product Description

DTSD1352 Three Phase Multi-Function Energy Meter

Acrel DTSD1352-CT Three Phase DIN Rail Mounting Energy Meter LCD Display 3 CT Current Under 5A 0

General



DTSD1352 power analyzer specializes in measuring the data of all kinds of AC networks. It can be used for local display, or it is connected with the control equipment in measuring and controlling system. They comply EN 61326:2006 and EN 61010-1:2001.

They are a kind of programmable analyzer. With the 2 key on the front, we can choose to read the data that we need. They can be equipped RS-485 communication Modbus-RTU.
They are a kind of analyzer with excellent cost performance, since they regroup the functions of traditional electric transmitter and digital meters. Therefore they are widely being used in kinds of control system, SCADA system and power management system.



Features



● AC 3×220/380V,3×380V,3×57.7/100V,3×100V
● 3×1(6)A,3×10(80)A
● U,I,P,Q,S,PF,kWh,kvarh
● RS485(MODBUS-RTU)
● LCD display
● Frozen data
● 2-31st Harmonics
● Alarm
● kWh Class 0.5S,kVarh Class 2

Acrel DTSD1352-CT Three Phase DIN Rail Mounting Energy Meter LCD Display 3 CT Current Under 5A 1

Acrel DTSD1352-CT Three Phase DIN Rail Mounting Energy Meter LCD Display 3 CT Current Under 5A 2Acrel DTSD1352-CT Three Phase DIN Rail Mounting Energy Meter LCD Display 3 CT Current Under 5A 3Acrel DTSD1352-CT Three Phase DIN Rail Mounting Energy Meter LCD Display 3 CT Current Under 5A 4

Acrel DTSD1352-CT Three Phase DIN Rail Mounting Energy Meter LCD Display 3 CT Current Under 5A 5

Acrel DTSD1352-CT Three Phase DIN Rail Mounting Energy Meter LCD Display 3 CT Current Under 5A 6

Acrel DTSD1352-CT Three Phase DIN Rail Mounting Energy Meter LCD Display 3 CT Current Under 5A 7
