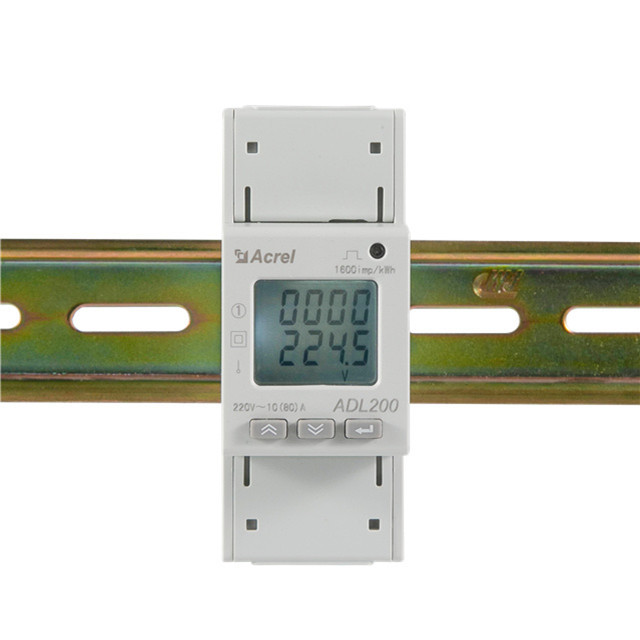

Acrel ADL200 single phase din rail meter voltage and current meter modbus din rail single phase energy meter data logger
Acrel ADL200 single phase din rail meter voltage and current meter modbus din rail single phase energy meter data logger
Contact Now

Acrel ADL200 single phase din rail meter voltage and current meter modbus din rail single phase energy meter data logger

Minimum Order Quantity : 1pc Packaging Details : carton
Delivery Time : 2-3 work days Payment Terms : T/T
Supply Ability : 5000pc
Place of Origin: China Brand Name: Acrel
Certification: CE Model Number: ADL200

Detail Information
Rated Current: 10(80)A Certificate: CE ROHS MID
Accuracy Class:: Class 1 Display: LCD Display
Standard: IEC62052-11/IEC62053-21

Product Description

ADL 200



Functions

  • Single phase active kWh, 3 months historical energy data frozen storage;
  • Measuring electrical parameters such as voltage, current, apparent power, power factor, frequency, active power, reactive power, etc.;
  • LCD display;
  • Communication protocol: MODBUS-RTU, Communication interface: RS485;
  • Multiple tariffs can be set.

Parameters



Input voltage Reference voltage AC220V
Reference frequency 50Hz
Power consumption <10VA
Input current Basic current 10A
Maximum current 80A
Starting current 4‰lb
Consumption <4VA
Measurement performance Accuracy of measuring 1 class
Range of measuring 000000.00~99999999kWh
Clock accuracy Error≤0.5s/d
Output Pulse width 80±20ms
Pulse constant 1000imp/kWh
Auto-reclosing brake Interface RS485(A+,B-)
Connection mode Shielded twisted pair conductors
Protocol MODBUS-RTU
  Length×Width×Height 90mm×36mm×65mm
Strong current terminal Torque <1.8Nm







Acrel ADL200 single phase din rail meter voltage and current meter modbus din rail single phase energy meter data logger 0





Dimension



Acrel ADL200 single phase din rail meter voltage and current meter modbus din rail single phase energy meter data logger 1





Installation





Acrel ADL200 single phase din rail meter voltage and current meter modbus din rail single phase energy meter data logger 2





Certification





Acrel ADL200 single phase din rail meter voltage and current meter modbus din rail single phase energy meter data logger 3





Our company

Acrel ADL200 single phase din rail meter voltage and current meter modbus din rail single phase energy meter data logger 4





Contact us

Acrel ADL200 single phase din rail meter voltage and current meter modbus din rail single phase energy meter data logger 5









Tag:

MID din rail energy meter

Single phase din rail meter

Din mounted power meter
