Acrel Adl 3000 3 Phase Kilowatt Hour Meter / 220v Kwh Meter 3200 Imp/KWH

Minimum Order Quantity : 1 piece Price : $74.00 / Piece
Packaging Details : carton box Delivery Time : 5-7 days
Supply Ability : 6000 pieces/day
Place of Origin: China Brand Name: Acrel
Certification: CE Model Number: ADL3000

Detail Information

Reference Voltage: AC 220V Reference Frequency: 50 Hz
Consumption: <10VA( Single Phase) Maximum: 80A
Pulse Constant: 3200 Imp/kWH Interface: RS485
Certification: ICE Protocol: Modbus-RTU
Humidity: ≦95% (No Condensation) Altitude: <2000m
High Light:

acrel adl 3000

,

220v Kwh Meter 3200 Imp/KWH

,

Adl 3000 3 Phase Kilowatt Hour Meter

Product Description

din rail power meter/kilowatt hour meter 3 phase/3 phase energy meter price

ADL3000 is a smart meter designed for power supply system, industrial and mining enterprises and utilities to calculate the electricity consumption and manage the electric demand. It features the high precision, small size and simple installation. It integrates the measurement of all electrical parameters with the comprehensive electricity metering and management provides various data on previous 12 months, checks the 31st harmonic content and the total harmonic content, realizes the remote communication and the remote control with switching input and relay output and boasts the alarm output. It is fitted with RS485 communication port and adapted to MODBUS-RTU. DTSD1352 can be used in all kinds of control systems, SCADA systems and energy management systems.

Acrel Adl 3000 3 Phase Kilowatt Hour Meter / 220v Kwh Meter 3200 Imp/KWH 0

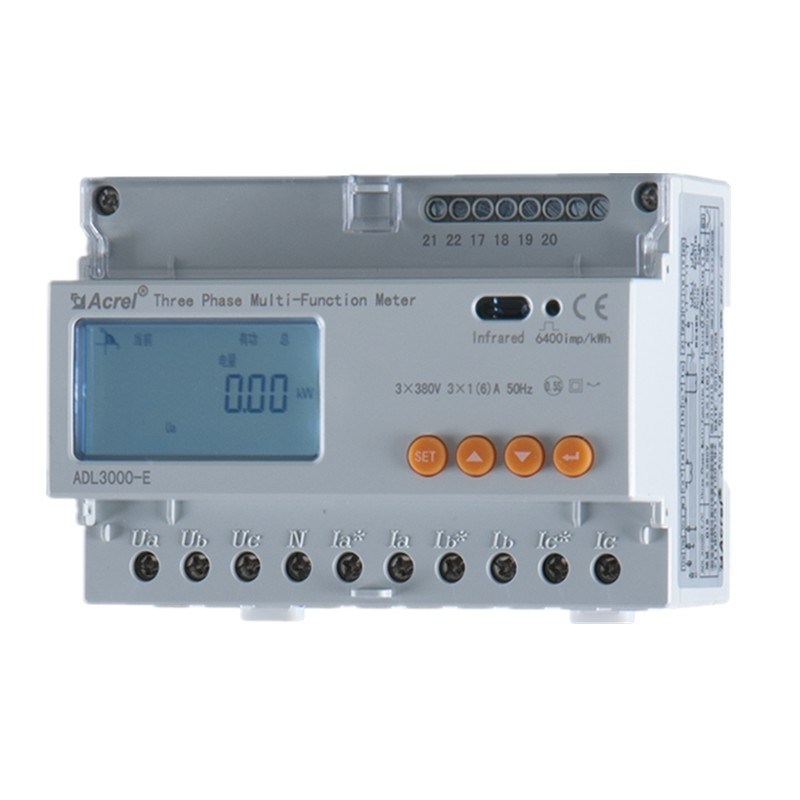

ADL3000 Three Phase Multi-function Energy Meter

● AC 3×220/380V,3×380V,3×57.7/100V,3×100V

● 3×1(6)A,3×10(80)A

● U,I,P,Q,S,PF,kWh,kvarh

● RS485(MODBUS-RTU)

● LCD display

● Frozen data

● 2-31st Harmonics

● kWh Class 0.5S,kVarh Class 2



Technology parameter

Voltage Reference voltage3* 3*57.7/100V,3*220/380V,3*100V,3*380V
Reference frequency 50 Hz
Consumption <10VA( Single phase)
Current Maximum 80A
Starting current

direct connect:0.004lb

connect via:0.001ln

Consumption <1VA
Measurement performance Accuracy of active kWH Class 0.5
Standards complicant IEC 62053-21:2003
Pulse Pulse width 80+20 ms
Pulse constant 400 imp/kWH,6400imp/kWH
Communication Interface RS485
  Protocol Modbus-RTU
Environment Temperature Operating:-25℃~55℃;Storage:-40℃~70℃
Humidity ≦95% (No condensation)
Altitude <2000m





Typical connection-Din rail energy meter



Acrel Adl 3000 3 Phase Kilowatt Hour Meter / 220v Kwh Meter 3200 Imp/KWH 1

Accuracy

kWh: Class 0.5S,kVarh:Class 2

Frequency

50/60HZ(Optional),range: 45~65HZ

Pulse output

Pulse output kWh/kvarh

Consumption

<10VA(Single phase)

Dimension(L*W*H):

127*88*70mm



Acrel Adl 3000 3 Phase Kilowatt Hour Meter / 220v Kwh Meter 3200 Imp/KWH 2



Certification

Acrel Adl 3000 3 Phase Kilowatt Hour Meter / 220v Kwh Meter 3200 Imp/KWH 3



Company profile

Acrel Adl 3000 3 Phase Kilowatt Hour Meter / 220v Kwh Meter 3200 Imp/KWH 4

ACREL CO., Ltd. was founded in 2003 and successfully listed on GEM in 2012. ACREL is a high-tech enterprise that integrats R&D, production, sales and service. since its establishment, it committed to provide users with energy efficiency management and power security system solutions. Acrel Electric has a complete production line from cloud platform software to sensors.

Acrel Adl 3000 3 Phase Kilowatt Hour Meter / 220v Kwh Meter 3200 Imp/KWH 5

Since the listing in 2012, our company has maintained steady growth. The company will adhere to the concept of "innovation, efficiency, unity, integrity", adhere to steady operation and continuous innovation, and provide more high-quality products, services and solutions for power system users and micro-grid.



Acrel Adl 3000 3 Phase Kilowatt Hour Meter / 220v Kwh Meter 3200 Imp/KWH 6Acrel Adl 3000 3 Phase Kilowatt Hour Meter / 220v Kwh Meter 3200 Imp/KWH 7



At Vietnam Power Equipment and Technology Exhibition, many customers from all over the world, our Acrel team has carried out detailed analysis and explanation of a series of difficult problems raised by customers. Under the enthusiasm of our technical team and sales team, the customer gave us a high evaluation of our products and services.

Acrel Co.,LTD [Stock Code:300286.SZ ] attended HANNOVER MESSE, is one of the few leading companies who provides various systematic of power monitoring, power control, energy management and electrical safety for smart grid users. Since 2003, we have been focused on the research, production and sales of intelligent electric meters and current sensors.

Acrel Adl 3000 3 Phase Kilowatt Hour Meter / 220v Kwh Meter 3200 Imp/KWH 8

If you have any special requirements, for example another current ratio or special size ,please feel free to Contact Us.



FAQ

Q: Are you trading company or manufacturer ?

A: We are factory. Warmly welcome you to visit and investigate our factory.

Q: How long is your delivery time?

A: Generally it is 3-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for lower price. If you place the order, all or part of the sample charge will be deducted from the goods. Please

contact us.

Q: What is your terms of payment ?

A: Usually, 100%TT in advance. If you have projects for another payment terms, please feel free to contact us.
