KWh Class 1 ADL200 Din Rail Energy Meter With Digital LCD Display
Contact Person : Dina Huang
Phone Number : 18761502682
WhatsApp : +8618761502682
| Minimum Order Quantity : | 1 piece | Price : | $44.00 / Piece |
|---|---|---|---|
| Packaging Details : | carton box | Delivery Time : | 5-7 days |
| Supply Ability : | 6000 pieces/day |
| Place of Origin: | China | Brand Name: | Acrel |
|---|---|---|---|
| Certification: | CE | Model Number: | ADL200 |
|
Detail Information |
|||
| Reference Voltage: | AC 220V | Reference Frequency: | 45-65 Hz |
|---|---|---|---|
| Consumption: | <10VA( Single Phase) | Maximum: | 80A |
| Pulse Constant: | 3200 Imp/kWH | Interface: | RS485 |
| Certification: | CE | ||
| High Light: | KWh Class 1 Din Rail Energy Meter,Din Rail Energy Meter MID Certification,KWh Class 1 din rail power meter |
||
Product Description
ADL200 single-phase electric meter is designed for single-phase energy measurement on low voltage system.The meter meet the related technical requirements of electronic meter in the IEC62053-21,IEC62053-22 standards.Energy consumption awareness is key to reduce energy costs and improve energy efficiency on your machines and electrical assets. Energy meters allow to identify areas for improvement and to generate benefits for owners, facility managers and users. They enable to run smarter buildings in a more energy and cost efficient manner.
Digital single phase LCD din rail energy meter with /dual source energy meter
● AC220V
● 10(80)A
● RS485(MODBUS-RTU)
● Set parameters
● LCD display
● kWh Class 1
● DIN 35 mm
Technology parameter
| Voltage | Reference voltage | AC 220V |
| Reference frequency | 45-65 Hz | |
| Consumption | <10VA( Single phase) | |
| Current | Maximum | 80A |
| Starting current | 0.004 Ib | |
| Consumption | <4VA(Maximum current) | |
| Measurement performance | Accuracy of active kWH | |
| Standards complicant | ||
| Pulse | Pulse width | Class 1 |
| Pulse constant | IEC 62053-21:2003 | |
| Pulse | Pulse width | 80+20 ms |
| Pulse constant | 3200 imp/kWH | |
| Communication | Interface | RS485 |
| Protocol | Modbus-RTU | |
| Environment | Temperature | Operating:-25℃~55℃；Storage:-40℃~70℃ |
| Humidity | ≦95% (No condensation) | |
| Altitude | <2000m | |

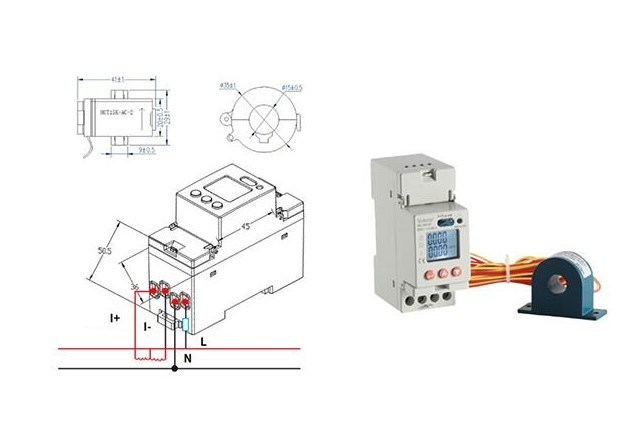

Typical connection-Din rail energy meter
Certification
Company profile
ACREL CO., Ltd. was founded in 2003 and successfully listed on GEM in 2012. ACREL is a high-tech enterprise that integrats R&D, production, sales and service. since its establishment, it committed to provide users with energy efficiency management and power security system solutions. Acrel Electric has a complete production line from cloud platform software to sensors.
Since the listing in 2012, our company has maintained steady growth. The company will adhere to the concept of "innovation, efficiency, unity, integrity", adhere to steady operation and continuous innovation, and provide more high-quality products, services and solutions for power system users and micro-grid.
At Vietnam Power Equipment and Technology Exhibition, many customers from all over the world, our Acrel team has carried out detailed analysis and explanation of a series of difficult problems raised by customers. Under the enthusiasm of our technical team and sales team, the customer gave us a high evaluation of our products and services.
Acrel Co.,LTD [Stock Code:300286.SZ ] attended HANNOVER MESSE, is one of the few leading companies who provides various systematic of power monitoring, power control, energy management and electrical safety for smart grid users. Since 2003, we have been focused on the research, production and sales of intelligent electric meters and current sensors.
If you have any special requirements, for example another current ratio or special size ,please feel free to Contact Us.
