KWh Class 1 ADL200 Din Rail Energy Meter With Digital LCD Display
Contact Person : Dina Huang
Phone Number : 18761502682
WhatsApp : +8618761502682
|Reference Voltage:||AC 220V||Reference Frequency:||45-65 Hz|
|Consumption:||<10VA( Single Phase)||Maximum:||80A|
|Pulse Constant:||3200 Imp/kWH||Interface:||RS485|

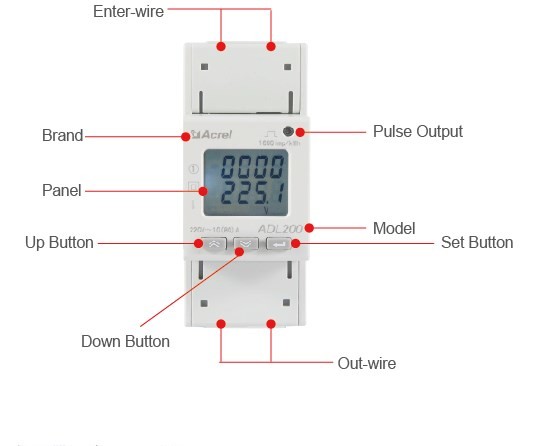

Digital single phase LCD din rail energy meter
ADL rail- installation Electricity meters is a new generation electricity meter developed by Acrel Co,.Ltd, resulting from many years experience in designing Electricity meters. LCD display and electricity pulse output function is installed in the power meter; clock, rate period parameters can be set also. Data swap with the super ordination machine via RS485 communication interface greatly facilitate the power automated administration. This power meter has advantages of smaller volume, high precision, good EMC, easy installation etc, meet the related technical requirements of electronic power meter in the IEC 62053-21,IEC 62053-22 standard.
ADL200 Din Rail Energy Meter
●kWh Class 1
●DIN 35 mm
|Voltage||Reference voltage||AC 220V|
|Reference frequency||45-65 Hz|
|Consumption||<10VA( Single phase)|
|Starting current||0.004 Ib|
|Measurement performance||Accuracy of active kWH|
|Pulse||Pulse width||Class 1|
|Pulse constant||IEC 62053-21:2003|
|Pulse||Pulse width||80+20 ms|
|Pulse constant||3200 imp/kWH|
|Humidity||≦95% (No condensation)|
Typical connection-Din rail energy meter
ACREL CO., Ltd. was founded in 2003 and successfully listed on GEM in 2012. ACREL is a high-tech enterprise that integrats R&D, production, sales and service. since its establishment, it committed to provide users with energy efficiency management and power security system solutions. Acrel Electric has a complete production line from cloud platform software to sensors.
Since the listing in 2012, our company has maintained steady growth. The company will adhere to the concept of "innovation, efficiency, unity, integrity", adhere to steady operation and continuous innovation, and provide more high-quality products, services and solutions for power system users and micro-grid.
At Vietnam Power Equipment and Technology Exhibition, many customers from all over the world, our Acrel team has carried out detailed analysis and explanation of a series of difficult problems raised by customers. Under the enthusiasm of our technical team and sales team, the customer gave us a high evaluation of our products and services.
Acrel Co.,LTD [Stock Code:300286.SZ ] attended HANNOVER MESSE, is one of the few leading companies who provides various systematic of power monitoring, power control, energy management and electrical safety for smart grid users. Since 2003, we have been focused on the research, production and sales of intelligent electric meters and current sensors.
If you have any special requirements, for example another current ratio or special size ,please feel free to Contact Us.
Q: Are you trading company or manufacturer ?
A: We are factory. Warmly welcome you to visit and investigate our factory.
Q: How long is your delivery time?
A: Generally it is 3-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for lower price. If you place the order, all or part of the sample charge will be deducted from the goods. Please
Q: What is your terms of payment ?
A: Usually, 100%TT in advance. If you have projects for another payment terms, please feel free to contact us.
