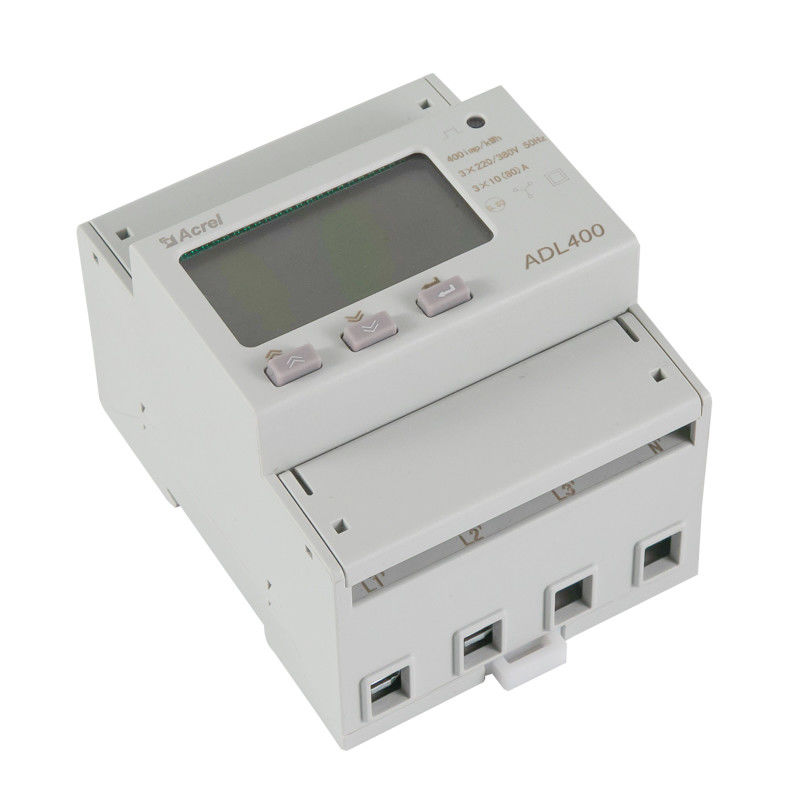

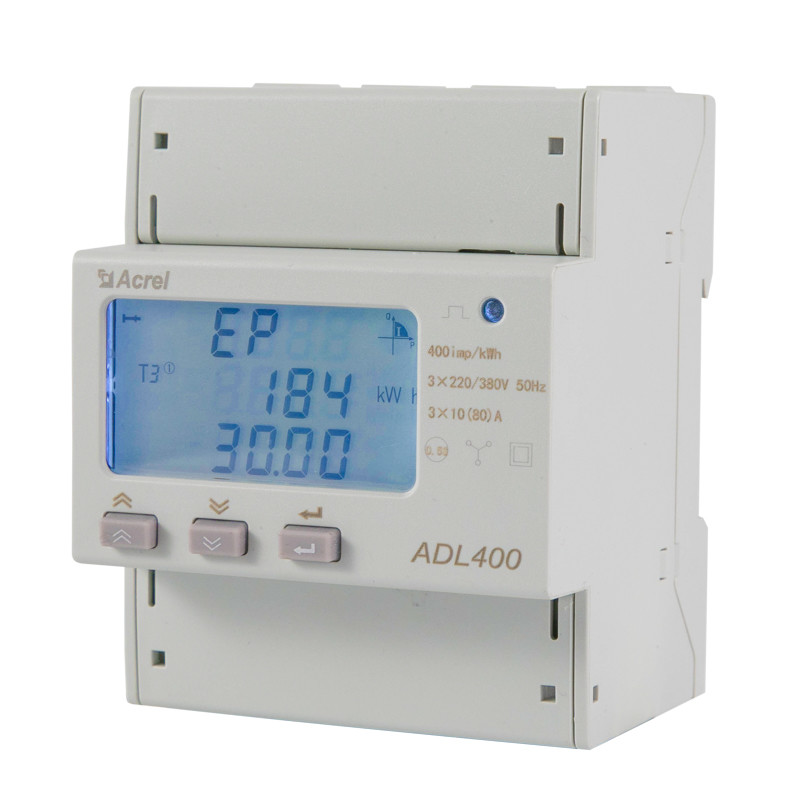

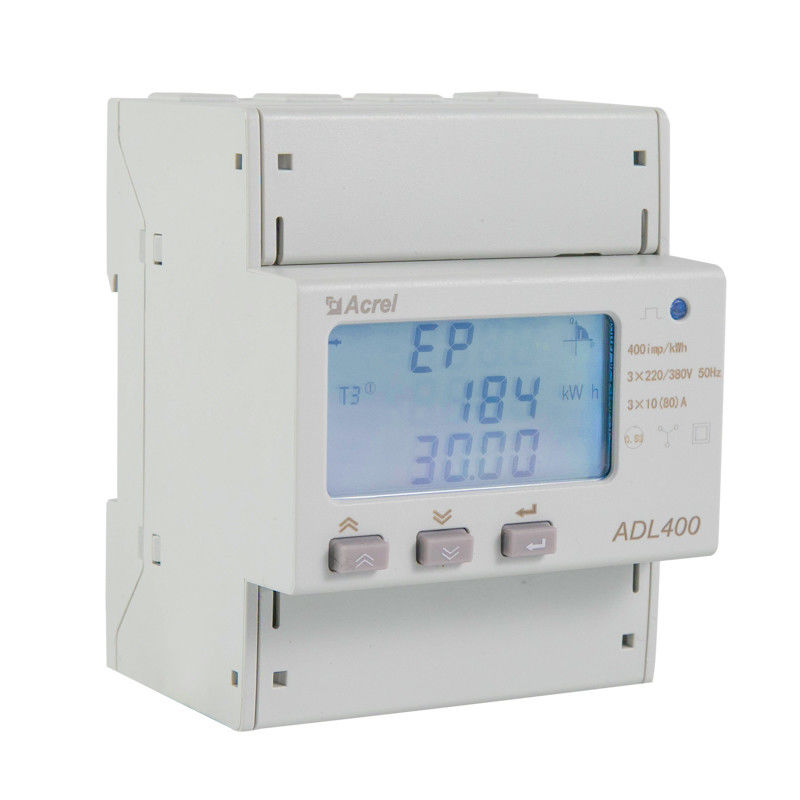

ADL400 Din Rail Three Phase Multi-Function Energy Meter

Contact Now

ADL400 Din Rail Three Phase Multi-Function Energy Meter

Minimum Order Quantity :	1	Price :	USD+15-80+pcs
Packaging Details :	4845.520	Delivery Time :	5-8 work days
Payment Terms :	L/C, T/T	Supply Ability :	6000000+pcs+per year

Place of Origin:	YES	Brand Name:	Acrel
Certification:	ISO/CE	Model Number:	ADL400

Product Description

Product Description

ADL400 din rail energy meter adopts DIN35mm din rail installation with LCD display,it can measure electric parameters and has energy pulse output, RS485 communication,which has the advantages of small size, high precision, good reliability and convenient installation.

● AC 3×220/380V,3×380V,3×57.7/100V,3×100V

● 3×1(6)A,3×10(80)A

● U,I,P,Q,S,PF,kWh,kvarh

● RS485(MODBUS-RTU)

● LCD display

● kWh Class 0.5S,kVarh Class 2

Characteristic

Communication

Display

Rated U and I

RS485
(Modbus-RTU)

12 digits LCD display

U, I, P, Q, PF, kWh and other energy consumption

Power measure (999999.99kWh)

AC 3×100V, 3×380V, 3×57.7/100V

3×220/380V; 3×1(6)A, 3×10(80)A

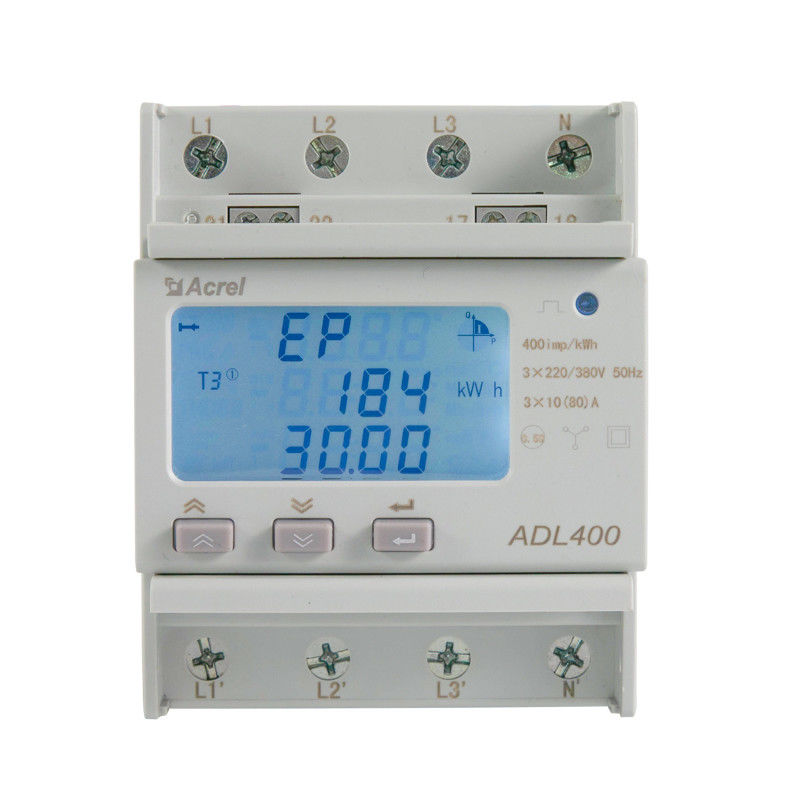

LCD Display

新建 DOCX 文档691.png

Function

Accuracy

kWh: Class 0.5S,kVarh:Class 2

Frequency

50/60HZ(Optional),range: 45~65HZ

Pulse output

Pulse output kWh/kvarh

Consumption

<1VA(Single phase)

Installation

DIN 35mm

Dimension(L*W*H)

90*72*65mm

Switch relay

Magnetic latching relay(ADL3000-E build-in)

Clock

≤0.5s/d

Starting current

Direct connect: 0.01

Connect via CT: 0.001

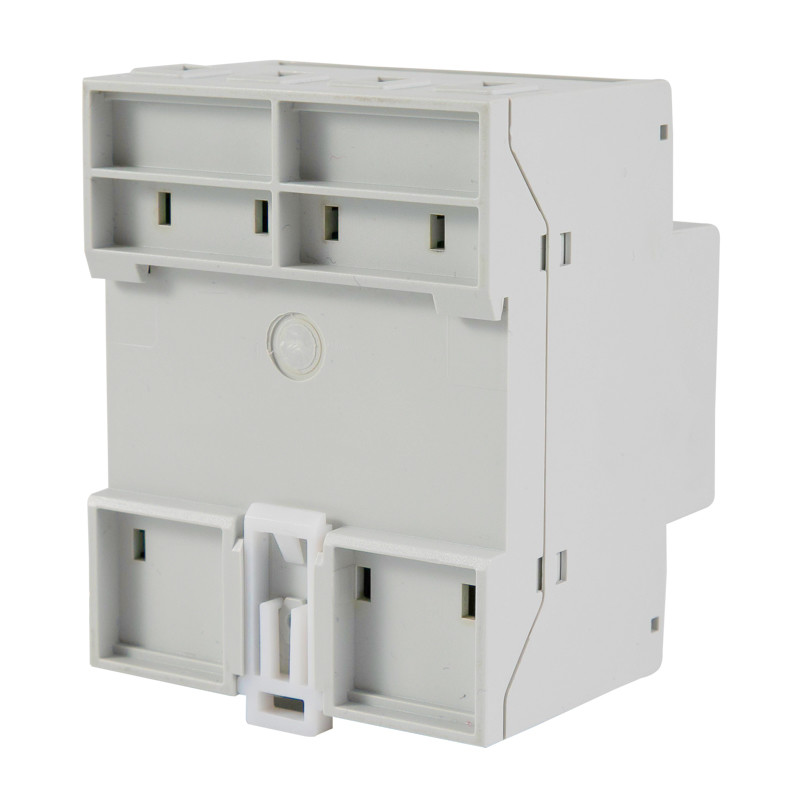

Appearance

Wiring

ADL400 Din Rail Three Phase Multi-Function Energy Meter 9

Typical connection

ADL400 Din Rail Three Phase Multi-Function Energy Meter 10

ADL400 Din Rail Three Phase Multi-Function Energy Meter 11

ADL400 Din Rail Three Phase Multi-Function Energy Meter 12
