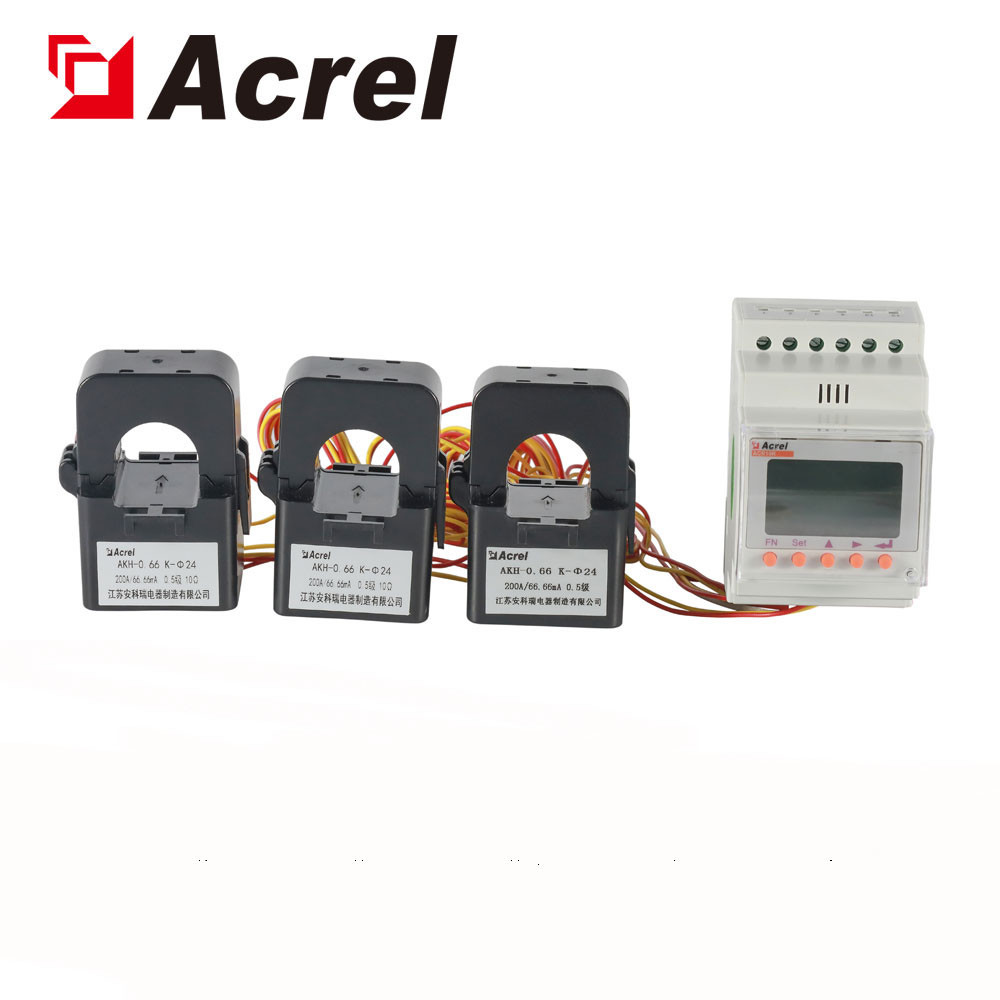

Solar Inverter Energy Meter ACR10R16DTE4 Three Phase Energy Meter

Contact Now

Solar Inverter Energy Meter ACR10R16DTE4 Three Phase Energy Meter

Minimum Order Quantity :	1 Pieces	Packaging Details :	cardboard box
Delivery Time :	2-3 days	Payment Terms :	T/T
Supply Ability :	5000pcs/day

Place of Origin:	China	Brand Name:	Acrel
Certification:	CE	Model Number:	ACR10R16DTE4

Detail Information
Voltage:	Rated Voltage: AC 100V, 400V	Frequency:	45～65Hz
Communication:	RS485	Display:	LCD
Power Supply:	AC85～265V Or DC100～350V
Highlight:	three phase energy meter , Sollis Inverter Energy Meter

Product Description

General

sollis inverter energy meter ACR10R16DTE4 three phase energy meter is suitable for energy-saving renovation projects in high energy consumption industries such as smelting, steel, electric welding, semiconductor, etc. It is also suitable for power monitoring of distributed photovoltaic grid-connected cabinets, power demand side management and other applications .

Technical parameter

Technical parameters		sollis inverter energy meter ACR10R16DTE4 three phase energy meter
Input	Grid	Single-phase
	Frequency	45～65Hz
	Voltage	Rated voltage: AC 100V, 400V
		Overload: 1.2 times the rated voltage(continuous); 2 times the rated voltage lasting for 1 second
		Power consumption: less then 0.2VA
	Current	Rated current: 10A,20A,40A,80A,120A,200A etc. (for details see product specifications)
		Overload: 1.2 times the rated current(continuous);10 times the rated current lasting for 1 second
		Power consumption: less then 0.2VA
Output	Communication	RS485 interface, Modbus-RTU
Output	Display	LCD
Measurement precision		Voltage: 0.2 level, current, power Active energy: 0.5 level,0.01Hz frequency, Reactive energy: 1 level
Power supply		AC85～265V or DC100～350V; power consumption ≤10VA
Safety	Power frequency withstand voltage	AC2kV 1 min between power supply // current input//voltage input and communication AC2kV 1 min between each pair of combinations among power supply, urrent input and voltage input.
Safety	Insulating resistor	Input,output terminal to housing >100MΩ
Environment		Working temperature: -10℃～+55℃;storage temperature: -20℃～+70℃ Relative humidity:5%～95%,non-condensing; altitude:≤2500m

Features

Solar Inverter Energy Meter ACR10R16DTE4 Three Phase Energy Meter 0

sollis inverter energy meter ACR10R16DTE4 three phase energy meter

Used for distributed&centralized Solar PV

● Rogowski Coil for Centralized Solar PV

● Split-core CTs for Distributed Solar PV

● Reflux Monitoring

● Harmonic Monitoring

Bidirectional Power Metering

● Active Power Metering

● Reactive Power Metering

RS485 Communication

● MODBUS-RTU Protocol

● Communicate with Inverter to realize anti-reflux Function

Keypads HMI for Programming

● Parameter Display Setting

● Communication(address, baud rate and etc.)

● Wiring: 3P3W,3P4W

Wiring

Solar Inverter Energy Meter ACR10R16DTE4 Three Phase Energy Meter 5

Application

Solar Inverter Energy Meter ACR10R16DTE4 Three Phase Energy Meter 6
