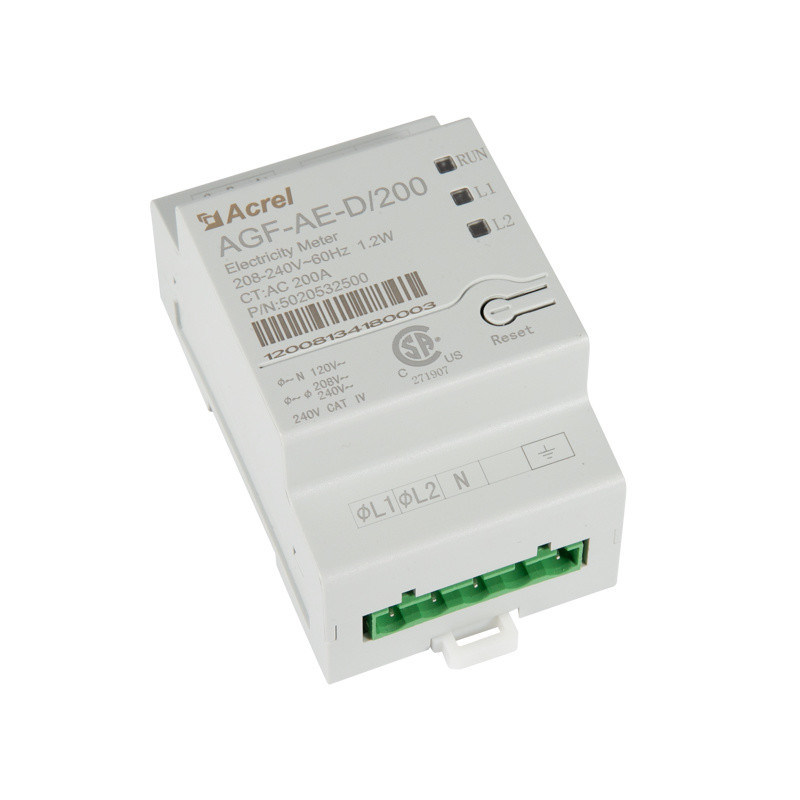

DIN 35mm 60Hz AC Programmable Power Meter Single Phase AGF-AE-D

Minimum Order Quantity :	1 pcs	Price :	USD 74-222/pcs
Packaging Details :	Individually packed in big carton	Delivery Time :	3 days
Supply Ability :	10000/month

Place of Origin:	China	Brand Name:	Acrel
Certification:	CE	Model Number:	AGF-AG-D/200

Detail Information
Accuracy:	AGF-AE-D/100：100A AGF-AE-D/200：200A	Frequency:	60Hz
Power Supply:	AC85～265V Or DC100～350V; Power Consumption ≤10VA	Power Consumption:	≤10VAp>
Power Supply Output:	AC85～265V Or DC100～350V	Input Consumption:	Less Than 0.2VA
Dimension(LWH):	54.1×87.8×52mm	Installation:	DIN 35 Mm
Highlight:	DIN 35mm Programmable Power Meter , 60Hz Programmable Power Meter , 60Hz single phase din rail energy meter

Product Description

In a single inverter system, the meter is connected directly to the inverter. If your inverter has a built-in revenue grade meter (RGM; the inverter is referred to a revenue grade inverter), you can connect an external meter on the same bus as the RGM.

Technical Features

Items		Features
Environment	Temperature	-40℃~125℃
	Humidity	≤95%
	atmospheric pressure	86kPa~106kPa
ATE100M/100/200 Active wireless temperature sensor	Wireless frequency	470MHz
	Communication distance	150m in open area
	Sampling frequency	25s
	Transmitting frequency	25s-5min
	Power source	Battery
	Installation	Magnetic / bolted /Belt
	Range of temperature	-50℃~+125℃
	Precision	±1℃
	Application	Joints in high or low voltage switchgears
	Battery life	≥5 years
400 Passive wireless temperature sensor	Wireless frequency	470MHz
	Communication distance	150m in open area
	Sampling frequency	15s
	Transmission frequency	15s
	Power source	CT-powered, starting current≥5A

	Installation	alloy chip fixing
	Sensor probe	alloy bottom
	Range of temperature	-50℃~125℃
	Precision	±1℃
	Application	Joints in high or low voltage switchgears
ATE100P/200P Outdoor wireless temperature sensor	Wireless frequency	470MHz
	Communication distance	150m in open area
	Sampling frequency	25s
	Transmitting frequency	25s-5min
	Power source	Battery
	Installation	bolted /Belt
	Range of temperature	-50℃~+150℃
	Precision	±0.5℃
	Application	Voltage switchgears
	Battery life	≥5 years
	Protection level	IP68

Writing

DIN 35mm 60Hz AC Programmable Power Meter Single Phase AGF-AE-D 0

Typical Connection

DIN 35mm 60Hz AC Programmable Power Meter Single Phase AGF-AE-D 1
