Home ProductsProgrammable Power MeterAPM800 AC/DC 85V~265V Programmable Power Meter / 3 Phase 3 Wire Energy Meter
APM800 AC/DC 85V~265V Programmable Power Meter / 3 Phase 3 Wire Energy Meter
APM800 AC/DC 85V~265V Programmable Power Meter / 3 Phase 3 Wire Energy Meter APM800 AC/DC 85V~265V Programmable Power Meter / 3 Phase 3 Wire Energy Meter APM800 AC/DC 85V~265V Programmable Power Meter / 3 Phase 3 Wire Energy Meter APM800 AC/DC 85V~265V Programmable Power Meter / 3 Phase 3 Wire Energy Meter
Contact Now

APM800 AC/DC 85V~265V Programmable Power Meter / 3 Phase 3 Wire Energy Meter

Minimum Order Quantity : 1 Piece Price : $355.00 / Piece
Place of Origin: Jiangsu, China Brand Name: Acrel
Model Number: APM800

Detail Information
Display Type: Analog And Digital Phase: Three Phase
Measuring Energy Range: AC/DC 85V~265V Or AC/DC 115~415V Accuracy Class: 0.5
Output Voltage: AC/DC 85V~265V Or AC/DC 115~415V Operating Temperature: -20~65℃
Dimensions: 96*96*65mm Communication: RS485 Port MODBUS-RTU Protocol
Display: LCD Display Certificate: CE ISO9001
Frequency: Range:45-65Hz Installation: Panel Mounted
Accuracy: Voltage,current And Power:class 0.5S Auxiliary Power Supply: AC/DC 85V~265V Or AC/DC 115~415V
Consumption: Voltage:Power Consumption:<0.5VA Relay: 3A/AC250V 3A/DC30V
Starting Current: 0.1% Selling Units: Single Item
Single Package Size : 9.2X9.2X9.6 Cm Single Gross Weight: 0.800 Kg
Package Type: It Is Packed In A Crash Bag And Then Put Into A Cardboard Box.
High Light:

APM800 Programmable Power Meter

,

APM800 3 Phase 3 Wire Energy Meter

,

265V Programmable Power Meter

Product Description

APM800 AC/DC 85V~265V Programmable Power Meter / 3 Phase 3 Wire Energy Meter 0
APM800 AC/DC 85V~265V Programmable Power Meter / 3 Phase 3 Wire Energy Meter 2

APM800 Multifunction Meter
● True RMS Measurements

● Unbalance & Phase Angles

● Demands and Multi-Tariff energy

● Max/Min Log with Timestamp

● Alarms and SOE Logs

● External Option module
Characteristic
APM800 AC/DC 85V~265V Programmable Power Meter / 3 Phase 3 Wire Energy Meter 3



Communication
Standard: RS485(Modbus-RTU)
Optional: Profibus(Profibus-DP), Ethernet(Modbus-TCP,HTTP,DHCP)
APM800 AC/DC 85V~265V Programmable Power Meter / 3 Phase 3 Wire Energy Meter 4



Display
LCD display U, I, P, Q, PF, kWh and other energy consumption, power measurement, harmonic content
APM800 AC/DC 85V~265V Programmable Power Meter / 3 Phase 3 Wire Energy Meter 5



Rated U and I
Voltage:AC 100V,110V,400V,690V；Current:AC 1A, 5A, support 2 mm2 line access;
Technical parameters
Connection

3 phase 3 wire,3 phase 4 wire
Frequency

50Hz
Input voltage
Rated current
AC 100V,110V,400V,690V

Overload
1.2 times rated value(continuous)；2 times rated value(1 second)

Consumption
＜0.5VA
Input current
Rated current
AC 1A,5A

Overload
1.2 times rated value(continuous)；10times rated value(1 second)

Consumption
＜0.5VA
Accuracy
voltage,current and power
Class 0.5S(APM800,APM801)
Class 0.2S(APM801,APM830)

Active power


Reactive power
Class 2

harmonic
1%(2-42nd),2%(43-63rd)
Switch inputs

Passive contact inputs,built-in power supply
Relay outputs

Contact type:open contact in main part,changeover contact in module
Pulse capacity;3A/AC250V 3A/DC30V
Pulse output of energy

Output mode:Optocoupler pulse with open collector
Pulse constant:4000(5A),8000(1A)imp/kWh
Analog outputs

DC0-20mA,4-20mA,0-5V,1-5V output,accuracy class 0.5%,
Load resistance≤500Ω
Analog inputs

DC0-20mA,4-20mA,0-5V,1-5V output,accuracy class 0.5%
Storage card

Standard capacity:4G,TF card up to 32G capacity
Communication

RS485(Modbus-RTU)
Auxiliary power supply

AC/DC 85-265V or  AC/DC 115-415V
Environment
Operating temperature
-20~65℃

Storing temperature
-20~70℃

Humidity
≤95%

Altitude
≤2500m
LCD display
APM800 AC/DC 85V~265V Programmable Power Meter / 3 Phase 3 Wire Energy Meter 6
Function
APM800 AC/DC 85V~265V Programmable Power Meter / 3 Phase 3 Wire Energy Meter 2
Accuracy
Voltage,current and power:class 0.5S
Active power:class 0.5S
Reactive power: class 2

Frequency
Range:45-65Hz

Auxiliary power supply
AC/DC 85V～265V or AC/DC 115～415V

Pulse output
Output mode: Optocoupler pulse with open collector;
Pulse constant:4000(5A),8000(1A) imp/kWh；

Consumption
Voltage:Power consumption:<0.5VA;
Current:Power consumption:< 0.5VA;
Auxiliary power supply:power consumption≤15VA

Installation
Panel mounted

Dimension(L*W*H)
Panel size(L×W):96*96mm
Cutout(L×W):92*92mm

Relay
3A/AC250V 3A/DC30V

Starting current
0.1%
APM800 AC/DC 85V~265V Programmable Power Meter / 3 Phase 3 Wire Energy Meter 8
Appearance
APM800 AC/DC 85V~265V Programmable Power Meter / 3 Phase 3 Wire Energy Meter 9
APM800 AC/DC 85V~265V Programmable Power Meter / 3 Phase 3 Wire Energy Meter 10
APM800 AC/DC 85V~265V Programmable Power Meter / 3 Phase 3 Wire Energy Meter 11
Wiring
APM800 AC/DC 85V~265V Programmable Power Meter / 3 Phase 3 Wire Energy Meter 12
Typical connection
APM800 AC/DC 85V~265V Programmable Power Meter / 3 Phase 3 Wire Energy Meter 13
APM800 AC/DC 85V~265V Programmable Power Meter / 3 Phase 3 Wire Energy Meter 14
APM800 AC/DC 85V~265V Programmable Power Meter / 3 Phase 3 Wire Energy Meter 15
APM800 AC/DC 85V~265V Programmable Power Meter / 3 Phase 3 Wire Energy Meter 16
APM800 AC/DC 85V~265V Programmable Power Meter / 3 Phase 3 Wire Energy Meter 17

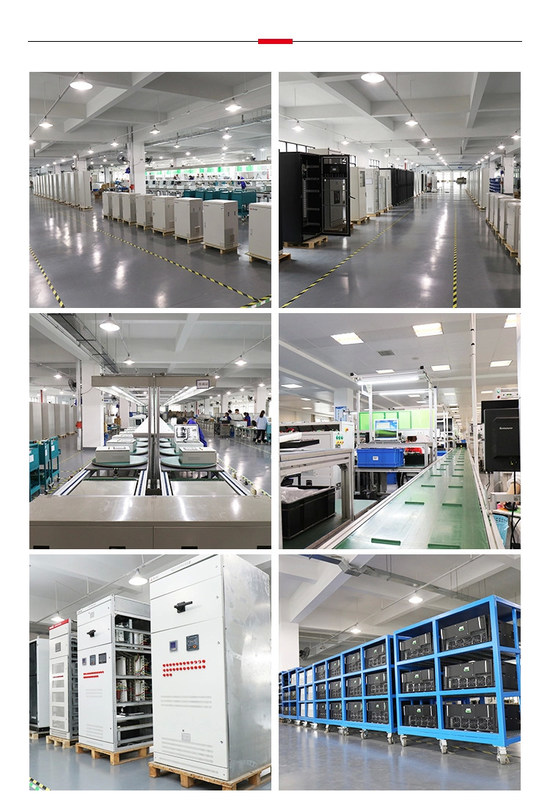

Jiangsu Anke Ruiwei Grid Research Institute Co., Ltd.
baojingjun@email.acrel.cn
Address:No.5,Dongmeng Road,Nanzha Town,Jiangyin City,Jiangsu Province.
APM800 AC/DC 85V~265V Programmable Power Meter / 3 Phase 3 Wire Energy Meter 18
FAQ

1. Q: Where is your factory located ? How can I visit here ? Can your factory arrange transportation for me?

A: Our production base is located in Jiangyin City, Jiangsu Province, China; Which will take about 2 hours by car from Shanghai to our factory. We can arrange our driver to pick you up from your hotel when you arrive Shanghai.

2. Q: Does your factory have the design and development capabilities, can you factory accept customized products?

A: The staffs in our R&D department are well experienced in the Electric industry, with more than 10 years’ experience. We can make customized products especially for you; please kindly contact us for more

3. Q: How long could I get my order?

A: Stock Products: shipping within 5 days.
B: Customized products: usually 10-15 days. It depends on your design and quantity.

4. Q: How is your production management and quality control system?

A: All our product process follows up ISO9001. The strict implementation of ISO9001 assures to provide error–free products to our customers. We will show you these in our workshop during your visiting.

5. Q: How can I get a sample to check the quality?

A: We are glad to offer you samples for test. Leave us message of the item you want and your city address. We will offer you detail sample packing information, and select the best way to deliver it.
