AMC16-DETT 48V energy meter

Minimum Order Quantity : 1 Pieces Packaging Details : It is packed in a crash bag and then put into a cardboard box.
Delivery Time : 2-3 days Payment Terms : T/T
Supply Ability : 8000 Piece/Pieces per Day
Place of Origin: Jiangsu, China Brand Name: Acrel
Certification: CE Model Number: AMC16L-DETT

Detail Information

Output Voltage: 200A/5V Operating Temperature: -20℃~+60℃
Product: AMC16-DETT 48V Energy Meter Communication: RS485 Port
Installation: Din Rail Rated Voltage: -40V~-60VDC

Product Description

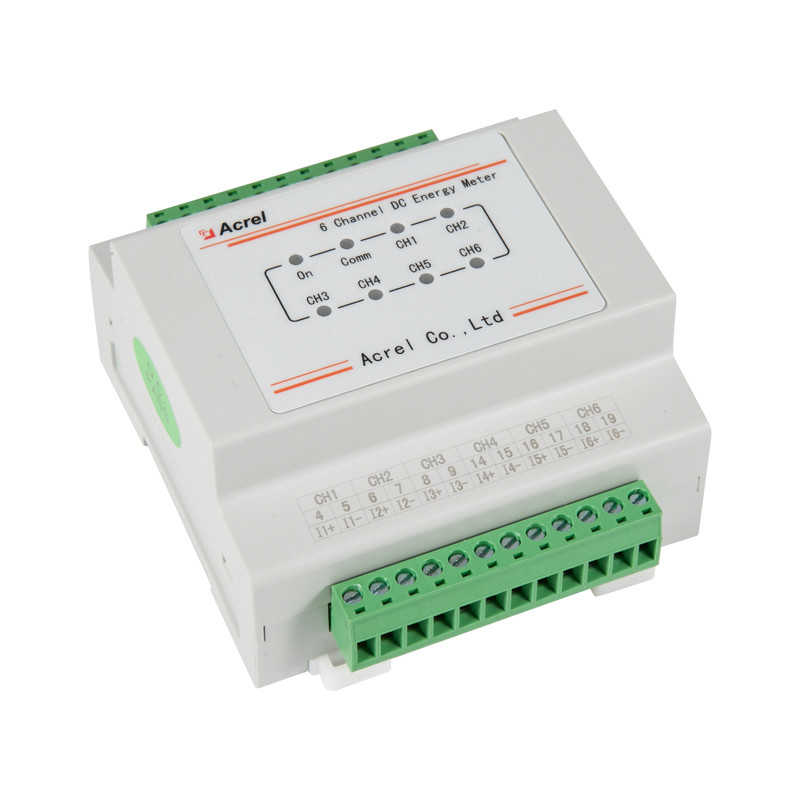

AMC16-DETT 48V energy meter

AMC16-DETT DC power meter is mainly designed for measurement of electric energy in base stations where require load sharing and have no sub-metering function. It is capable of metering 6 circuits DC power, providing working current for Hall-effect sensor, and achieving zero-drift calibration by computer software. This energy meter is an ideal sub-metering solution that allows three operators to efficiently measure energy usage of base stations, significantly reducing operating cost.

AMC16-DETT 48V energy meter 0



AMC16-DETT 48V energy meter

●DC rated voltage: 1 channel: -48VDC



●Accuracy:1%In≤I≤10%In error±2.5%; I>10%In error±2%



●RS485(MODBUS-RTU)



●LED display



●DIN 35 mm



Parameter

Input DC voltage 1 channel: -48VDC
DC current 6 channel hall current sensor,total DC200A/5V,Telecom, Mobile,Unicom and the 1st channel reserve 50A/5V, 2nd
channel reserve 100A/5V.
Grid power monitoring 1 channel: 0-5VDC
Overload capacity Voltage:1.2times continued,2 times continued 1s;
Current: 1.2 times continued,10 times continued 1s.
Accuracy (superposition hall sensors) 1%In≤I≤10%In error±2.5%; I>10%In error±2%
resolution Voltage output accuracy 0.01V; current output accuracy 0.01A;
power output accuracy 0.01kw; energy output accuracy 0.01kwh
Functions Basic function Monitor device system time, total voltage, output total current, power, energy, each channel voltage, current, power, energy; LED indicator display;485 communication
  Metering function Start current: under rated voltage, when the load current value of the meter doesn’t exceed 1% of the max. current, the meter starts.
Shunt running current: when there is no current in the current circuit of the meter, and 85%-125%of the rated voltage is applied on the voltage circuit, the calculator shall not have more than
  Alarm function DC low voltage output alarm,DC high voltage output alarm,one power down alarm, module voltage loss alarm, metering branch error alarm, internal program error alarm, clock error alarm, memory failure alarm and AC input power failure alarm
  Timing function support broadcast timing, could remote timing to the meter by RS485
  Hall CT power supply Power supply output:+12V/100Ma, -12V/50mA
  Clock accuracy ≤0.5s/d(23℃),≤1s/d(-20℃~60℃)
Powe supply for ther meter -40VDC~ -60VDC
Power consumption ≤2W



Typical connection--AMC16-DETT Telecom Station Dc Power Consumption Meter Kwh 6 Channels

AMC16-DETT 48V energy meter 1



Wiring

AMC16-DETT 48V energy meter 2

Certification

AMC16-DETT 48V energy meter 3

Company profile

AMC16-DETT 48V energy meter 4

ACREL CO., Ltd. was founded in 2003 and successfully listed on GEM in 2012. ACREL is a high-tech enterprise that integrats R&D, production, sales and service. since its establishment, it committed to provide users with energy efficiency management and power security system solutions. Acrel Electric has a complete production line from cloud platform software to sensors.

AMC16-DETT 48V energy meter 5

Since the listing in 2012, our company has maintained steady growth. The company will adhere to the concept of "innovation, efficiency, unity, integrity", adhere to steady operation and continuous innovation, and provide more high-quality products, services and solutions for power system users and micro-grid.



AMC16-DETT 48V energy meter 6AMC16-DETT 48V energy meter 7



At Vietnam Power Equipment and Technology Exhibition, many customers from all over the world, our Acrel team has carried out detailed analysis and explanation of a series of difficult problems raised by customers. Under the enthusiasm of our technical team and sales team, the customer gave us a high evaluation of our products and services.

Acrel Co.,LTD [Stock Code:300286.SZ ] attended HANNOVER MESSE, is one of the few leading companies who provides various systematic of power monitoring, power control, energy management and electrical safety for smart grid users. Since 2003, we have been focused on the research, production and sales of intelligent electric meters and current sensors.

AMC16-DETT 48V energy meter 8

If you have any special requirements, for example another current ratio or special size ,please feel free to Contact Us.
