ISO9001 Certified 0~999kwh DC Energy Meter For Solar System

Contact Now

ISO9001 Certified 0~999kwh DC Energy Meter For Solar System

Name: ISO9001 Certified 0~999kwh DC Energy Meter For Solar System
Brand: Acrel
SKU: DJSF1352-RN
Price: 133.00 USD
Availability: InStock
Rating: 4.6 (109 reviews)

Minimum Order Quantity :	1 Piece	Price :	$133.00 / Piece

Place of Origin:	Jiangsu, China	Brand Name:	Acrel
Model Number:	DJSF1352-RN

Detail Information
Display Type:	Analog And Digital	Phase:	DC Meter
Measuring Energy Range:	0~999kwh	Accuracy Class:	Class 1
Output Voltage:	DC 0-1000V	Operating Temperature:	-25℃~65℃
Dimensions:	717287.8mm	Product Name:	DJSF1352-RN Rail-Mounted DC Power Meter
Communication:	RS485 Modbus RTU	Display:	LCD Display
Certificate:	CE ISO9001	Installation:	35mm DIN Rail Installation
Accessories:	3pcs CT	Switch Relay:	DC 30V/3A AC 220V/3A
Input Consumption:	Voltage: ≤0.2VA Current ≤0.1VA	Operation Temperature:	-25~65℃
Dimension:	717287.8mm	Selling Units:	Single Item
Single Package Size :	7.2X7.2X8.73 Cm	Single Gross Weight:	0.800 Kg
Package Type:	It Is Packed In A Crash Bag And Then Put Into A Cardboard Box.
High Light:	999kwh DC Energy Mete , ISO9001 DC Energy Meter , 999kwh dc multifunction meter

Product Description

DJSF1352-RN Rail-Mounted DC Power Meter

● RS485 communication interface
● Supports Modbus-RTU protocol
● Relay alarm output and digital input function
● Set the ratio, alarm, and communication through the meter panel keys according to different requirements
● Event recording of switch (Modbus protocol), programming and event setting records, instantaneous and timing freeze function of
data, maximum and minimum value recording function of voltage and current power

Characteristic

Communication

RS485(Modbus-RTU)

DL/T 645-2007

Display

LCD display

Rated U and I

Voltage: DC 0-1000V

Current: Shunt:0-75mV, Hall sensor:0-20mA,4-20mA,0-5V,0-10V

3×1(6)A,3×10(80)A

LCD Display

Function

Accuracy
Class 1
Frequency:/
Power Supply(self supply)
AC/DC 85-265V or DC24V(±10%) or DC48V(±10%)
Pulse output:/
Input consumption:
Voltage: ≤0.2VA current ≤0.1VA

Dimension(L*W*H)

72*73*89.8mm

Installation

standard DIN35mm rail mounted

Clock

Switch relay

DC 30V/3A AC 220V/3A

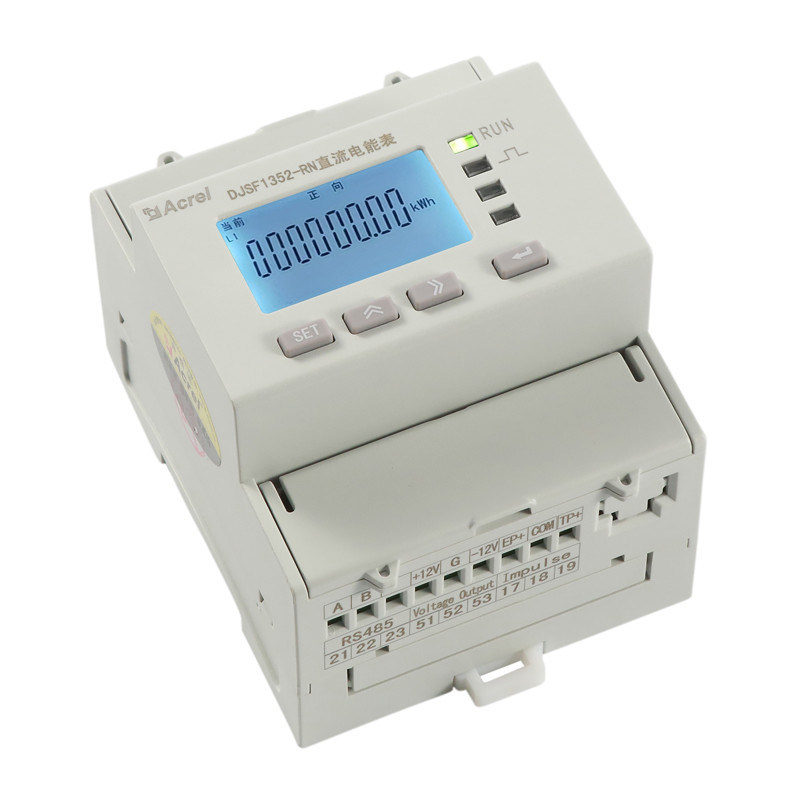

Appearance

Technical Parameters

Technical parameters			Index
Input	Nominal value	Voltage input range	Current input
				_{DC 0-1000V}	Shunt:0-75mV Hall sensor:0-20mA,4-20mA,0-5V,0-10V and so on.
		^Overload	^{1.2times rated(continuous);2times rated/1 second}
		Power consumption	Voltage:≤0.2VA,Current≤0.1VA
Accuracy			Class 1
Function	Display	8-bit segment LCD screen(LCD)
		Communication interface	RS485,infrared
		Communication protocol	Modbus-RTU,DL/T 645-2007
		_Switch	^{Switch output}	2 relay outputs,2A/30VDC or 2A/250VAC
				Switch input	2 dry contact inputs
		^{Pulse output}	A second pulse output,an energy pulse output
				See the SYS->PLUS display in the meter menu settings. For example:The meter displays 100,which is 100imp/kWh
Power supply	Voltage range	AC/DC 85-265V or DC24V(±10%)or DC 48V(±10%)
		Power consumption	≤3W
Power frequency withstand voltage			Power supply/Voltage input/Current input/Relay output and switch input/Communication interface/Pulse output 3kV/1min
Insulation resistance			≥400MΩ
Average barrier-free working hours			≥50000h
Environment	Temperature	Normal operating temperature:-25℃~65℃;Limit
		Humidity	≤93%RH,no condensation,no corrosive gas
		Altitude	≤2500m

Wiring
