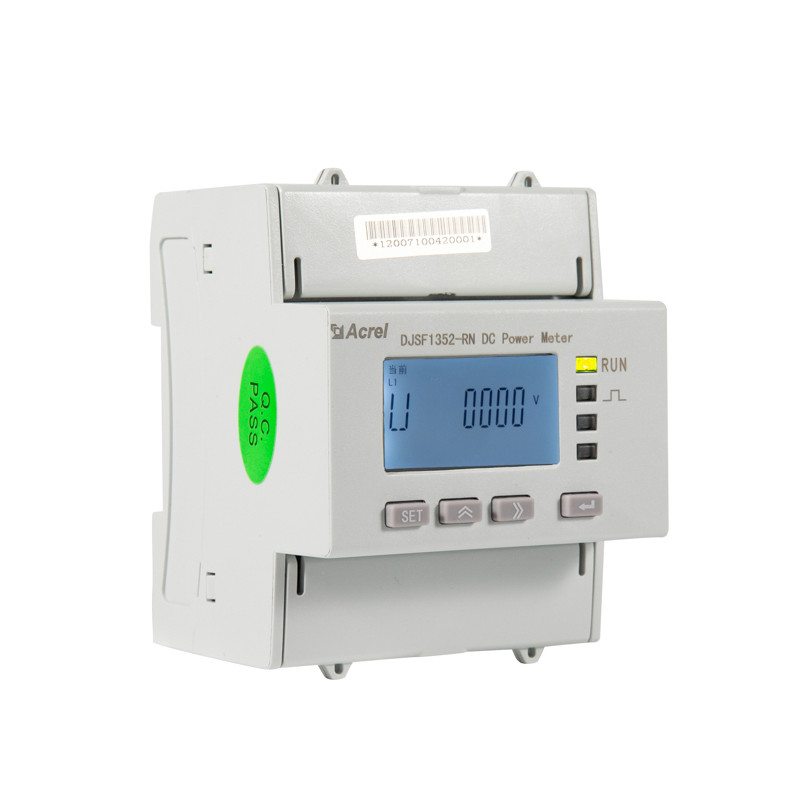

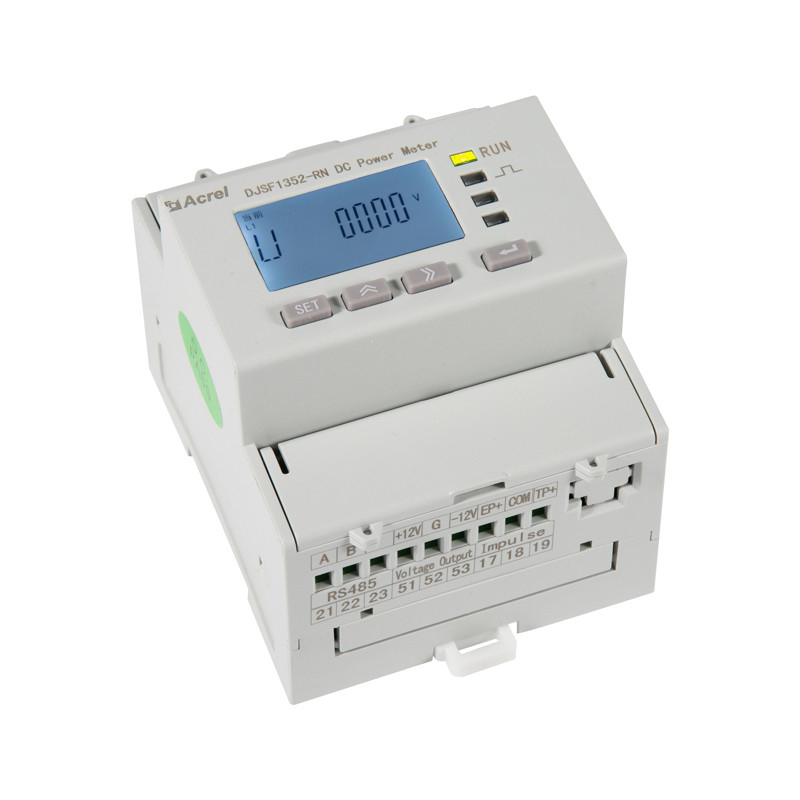

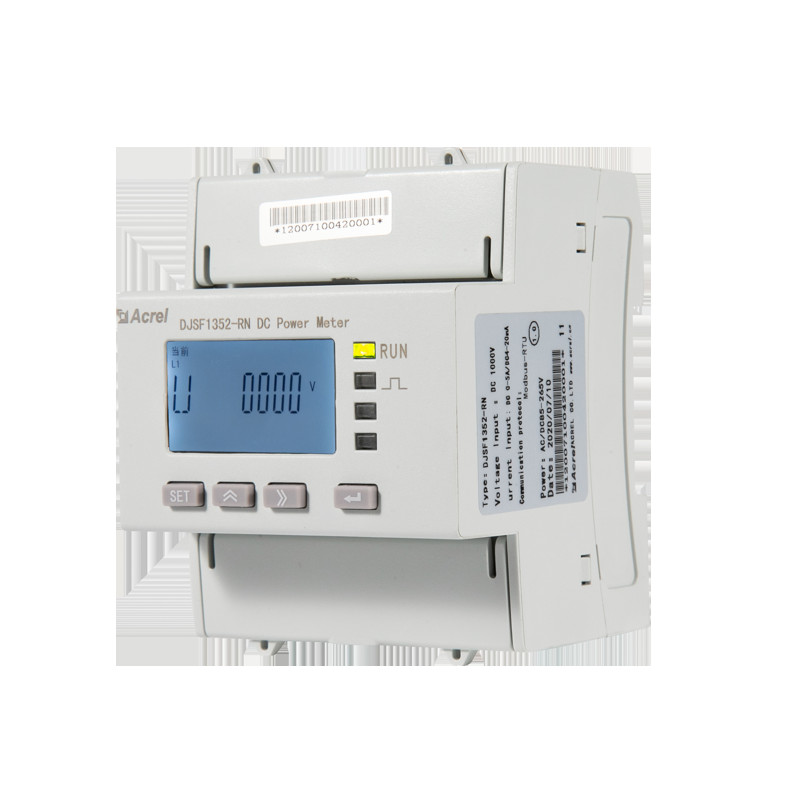

DC Dual Circuits Monitoring DIN Rail Energy Meter DJSF1352-RN

Contact Now

DC Dual Circuits Monitoring DIN Rail Energy Meter DJSF1352-RN

Minimum Order Quantity :	1	Delivery Time :	5-8 work days
Payment Terms :	T/T

Place of Origin:	CHINA	Brand Name:	Acrel
Certification:	UL	Model Number:	DJSF1352-RN

Detail Information
Dimension:	908853mm	Measurement Range:	0-9999kWh
Measure:	KWH Voltage Current Power	Measurement:	1-circuit DC KWh, KVarh, U, I, P
Nominal Value:	DC 0-1000V	Accuracy Class:	Class 1
Voltage Rating:	0~1000V DC	Certifications:	CE, RoHS
Frequency:	45~65Hz	Dimensions:	90mm X 72mm X 65mm
Analog Input:	PT100,DC4-20ma Or DC0-10V	Accuracy:	Class 1.0
Input Frequency:	45~60Hz	Rated Voltage:	1000V DC
Input Consumption:	Voltage: ≤0.2VA Current ≤0.1VA
Highlight:	DIN Rail Energy Meter , DJSF1352-RN Energy Meter , DC Dual Circuits Monitoring Energy Meter

Product Description

DJSF1352-RN UL certified DC Dual-circuits Monitoring DIN Rail Energy Meter

● Measurement: kWh, kVarh, Power, Current, Voltage and etc

● Current Rating: -/75mV (with Shunt); -/4~20mA (with Hall Sensor)

● Voltage Rating: 0~1000V DC

● Application: DC Battery; Charging Pile; Solar PV and etc

● Communication: RS485 (MODBUS-RTU)

● Extra Function: Dual DC Circuits Monitoring; Secondary RS485 (MODBUS-RTU); Built-in Bipolar Power Source (for Hall Sensors); DO/DI Function

● Display: LCD Display

● Dimension: 72*71*87.8mm (L*W*H)

● Installation: 35mm DIN Rail

● Power Supply: 85~265V AC/DC; 24V(±10%) DC; 48V(±10%) DC

● Standard&Certificate: CE

Features

Dual Independent DC Circuits Monitoring ● For Twin EV Charger&Battery ● Voltage Input:DC 0~1000V ● Current Input (by Shunt): 0~75mV ● Current Input (by Hall Sensor): 0~5V, 0~10V, 0~20mA, 4~20mA
Built-in Bipolar Power Source ● Power Supply for Hall Effect CT ● Range: DC -12V ~ DC +12V
Optional Dual RS485 Communication ● Protocol: MODBUS-RTU ● 1 RS485 (standard)
DO/DI Function ● 2 DO (2A/30V DC; 2A/250V AC) ● 2 DI (dry contact)
LCD Display ● Parameter Display ● Programming Interface
Keypads HMI for Programming ● Parameter Display Setting ● Communication

Display Sample

Wiring Illustration

Wiring with Shunt

Wiring with Hall Sensor

Practical Application

Solar PV Power Distribution Monitoring Solution

Practical Application in Solar PV with Energy Storage Inverter

DC Dual Circuits Monitoring DIN Rail Energy Meter DJSF1352-RN 12

Practical Application in Solar PV with on-grid Inverter

Practical Application in Twin EV Charger
