ADL10-E Single Phase Electric Energy Meter
Contact Person : Dina Huang
Phone Number : 18761502682
WhatsApp : +8618761502682
| Minimum Order Quantity : | >=1 Pieces | Price : | $105.00 |
|---|---|---|---|
| Packaging Details : | It is packed in a crash bag and then put into a cardboard box. | Supply Ability : | 100000 Piece/Pieces per Month |
| Place of Origin: | Jiangsu, China | Brand Name: | Acrel |
|---|---|---|---|
| Model Number: | DJSF1352-RN |
|
Detail Information |
|||
| Display Type: | Digital Only | Phase: | Single Phase |
|---|---|---|---|
| Measuring Energy Range: | 0-999999.99kwh | Accuracy Class: | 0.5 |
| Output Voltage: | 220V | Operating Temperature: | -10℃-45℃ |
| Dimensions: | 72*93.8*71mm | Display: | LCD Display |
| Input Voltage: | DC1000V | Frequency: | 45~65Hz |
| Communication: | RS485 And Infared | Port: | Shanghai |
| High Light: | 1000V DC Energy Meter,65Hz DC Energy Meter,1000V DC electric meter |
||
Product Description
|
Model
|

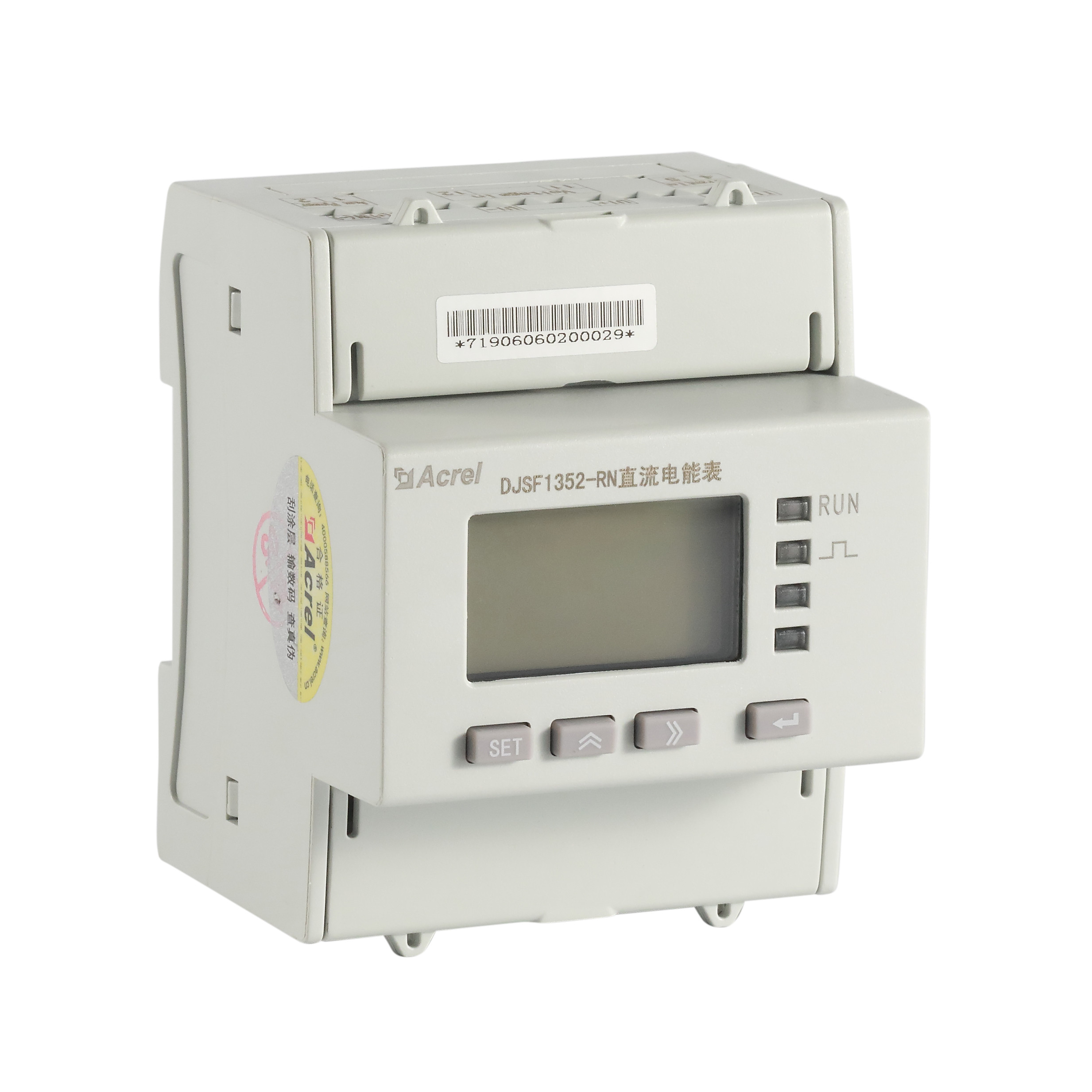

DJSF1352-RN
|
|
|
Input
|
|
|
|
Input DC voltage range
|
DC 0~1000V
|
|
|
Input DC current
|
75mV shunt or hall current sensor(0-20mA; 4-20mA; 0-5V; 0-10V)
|
|
|
Power consumption
|
Voltage: ≤0.2VA, current ≤0.1VA≤2VA
|
|
|
Overload
|
1.2 times sustainable work, 2 times lasts a second
|
|
|
Function
|
|
|
|
Display
|
8-bit segment LCD
|
|
|
Communication
|
RS485 Modbus RTU, infared
|
|
|
Switch input
|
2 relay outputs, 2A/30VDC or 2A/250VAC
|
|
|
Switch output
|
2 dry contact inputs
|
|
|
Pulse output
|
1 second pulse output and another energy pulse output
|
|
|
Optional function
|
|
|
|
Dual channel DC input(D)
|
|
|
|
Power module(DC24V or 48V)P1
|
|
|
|
Digital input and output(K)
|
|
|
|
Power supply
|
|
|
|
AC/DC 85-265V or DC24V(±10%) or DC48V(±10%)
|
|
|
