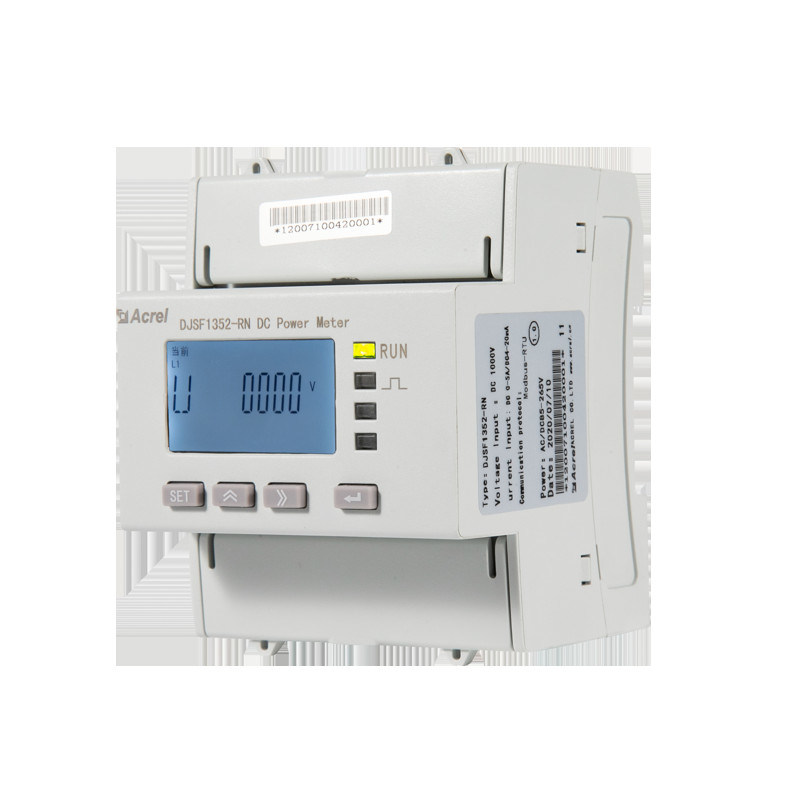

DJSF1352-RN/D-P1 Energy Meter

Minimum Order Quantity : 1 Pieces Price : 3usd/pc
Delivery Time : 2-3 days Payment Terms : T/T
Supply Ability : 5000pcs/day
Place of Origin: China Brand Name: Acrel
Certification: UL Model Number: DJSF1352-RN/D-P1

Detail Information

Measurement: KWh, KVarh, Power, Current, Voltage Current Rating: -/75mV (with Shunt); -/4~20mA (with Hall Sensor)
Voltage Rating: 0~1000V DC Communication: RS485 (MODBUS-RTU)
Display: LCD Display Dimension: 72*71*87.8mm (L*W*H)
Installation: 35mm DIN Rail Power Supply: 85~265V AC/DC; 24V(±10%) DC; 48V(±10%) DC
High Light:

DJSF1352-RN/D-P1 Energy Meter

,

RN/D-P1 Energy Meter

Product Description

General


DJSF1352-RN rail-mounted DC power meter with double DC input channels, designed for telecommunications base stations, DC charging piles, solar photovoltaic and other applications, this series of meters can measure the voltage, current, power and forward and reverse energy and so on in the DC system.

Features




Dual Independent DC Circuits Monitoring

● For Twin EV Charger&Battery

● Voltage Input:DC 0~1000V

● Current Input (by Shunt): 0~75mV

● Current Input (by Hall Sensor): 0~5V, 0~10V, 0~20mA, 4~20mA

DJSF1352-RN/D-P1 Energy Meter 0



Built-in Bipolar Power Source

● Power Supply for Hall Effect CT

● Range: DC -12V ~ DC +12V

DJSF1352-RN/D-P1 Energy Meter 1



Optional Dual RS485 Communication

● Protocol: MODBUS-RTU

● 1 RS485 (standard)

DJSF1352-RN/D-P1 Energy Meter 2



DO/DI Function

● 2 DO (2A/30V DC; 2A/250V AC)

● 2 DI (dry contact)

DJSF1352-RN/D-P1 Energy Meter 3



Keypads HMI for Programming

● Parameter Display Setting

● Communication

DJSF1352-RN/D-P1 Energy Meter 4



Technical parameter


Technical parameters

Indicators

Input Nominal value Voltage input range Current input

DC 0-1000V

See the physical wiring diagram

Shunt:0-75mV;

Hall sensor:0-20mA,4-20mA,0-5V,0-10V and so on.

Overload Overload

1.2 times rated (continuous); 2 times rated/1 second;

Power consumption Power consumption Voltage: ≤0.2VA, current ≤0.1VA
Accuracy class Class 1
Function Display 8-bit segment LCD screen (LCD)
Communication Interface

RS485, infrared

Communication protocol Modbus-RTU,DL/T 645-2007
Switch Switch output 2 Relay outputs, 2A/30VDC or 2A/250VA
Switch input 2 dry contact inputs
Pulse output A second pulse output, a energy pulse output

See the SYS->PLUS display in the meter menu setting

For example: The meter displays 100, which is 100imp/kWH

Power Supply Voltage range AC/DC 85-265V or DC24V(±10%) or DC48V(±10%)
Power consumption ≤ 3W
Power frequency withstand voltage Power supply // Voltage input // Current input // Relay output and switch input // Communication interface / / Pulse output 3kV/1minPower supply // Relay output // Voltage input // Current input 3kV/1minPulse output // Communication interface // Switch input 2kV/1min
Insulation resistance

≥ 40M Ω

Average barrier-free working hours

≥50000h

Environment

Temperature

Normal operating temperature: -25 °C ~ +65 °C;

Limit working temperature: -40 °C ~ +70 °C;

Storage temperature: -40℃~+80℃

Humidity

≤93%RH, no condensation, no corrosive gas

Altitude ≤2500m



Wiring


DJSF1352-RN/D-P1 Energy Meter 5

with shunt

DJSF1352-RN/D-P1 Energy Meter 6

with sensor



Certification


DJSF1352-RN/D-P1 Energy Meter 7
