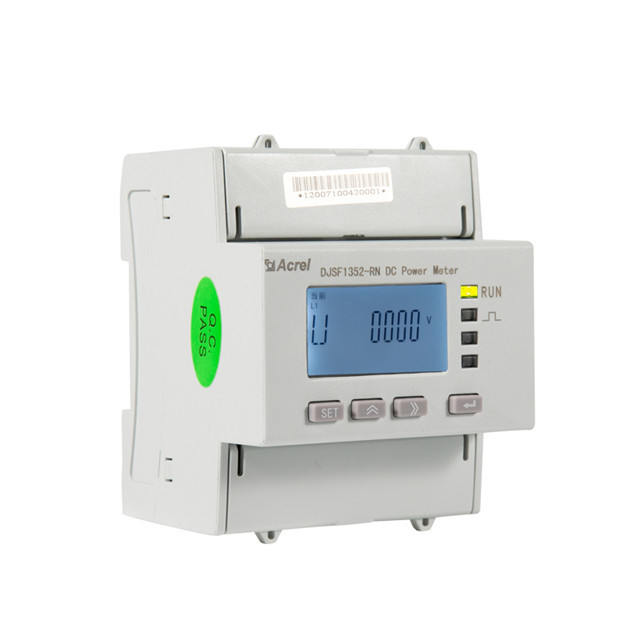

Acrel DJSF1352-RN Din Rail Dc Voltage Meter Acrel Dc Measurement Dc Dual-circuits Monitoring

Minimum Order Quantity : 1pc Packaging Details : carton
Delivery Time : 2-3 work days Payment Terms : T/T
Supply Ability : 5000pc/day
Place of Origin: China Brand Name: Acrel
Certification: CE Model Number: DJSF1352-RN

Detail Information

Input Frequency: 45~60Hz Accuracy: Class 1
Communication: RS485/Modbus-RTU Power Consumption: ≤ 3W
Altitude: ≤2500m
High Light:

dual-circuits monitoring dc voltage meter

,

Acrel din rail dc voltage meter

,

Acrel dc measurement dc voltage meter

Product Description

DJSF1352 DC energy meter Din rail


  • LCD diasplay
  • RS485 communication interface
  • Modbus-RTU, DL/T 645-2007 communication protocol
  • Functions of energy measurement, data processing, real-time monitoring, multi-rate electric energy statistics, etc.
  • Set the ratio, alarm and communication through the meter panel keys according to different requirements



Technical parameters


Technical  parameters Index

Input

Rated value Voltage input Current input
DC 0-1000V

Shunt: 0-75mV

Hall sensor: 0-20mA,4-20mA,0-5V, 0-10V etc.

Overload 1.2 times rated (continuous); 2 times rated/1 second
Power consumption Voltage: ≤0.2VA, current≤0.1VA
Accuracy class Class 1, Class 0.5
Function Display 8-bit segment LCD screen (LCD)
Communication Interface RS485, infrared
Communication protovol Modbus-RTU, OL/T 645-2007
Switch Switch output 2 Relay outpus, 2A/30VDC or 2A/250VAC
Switch input 2 dry contact inputs
Pulse output A second pulse output, a energy pulse output
See the SYS->PLUS display in the meter menu settings.
  For example: The meter displays 100, which is 100imp/kWH
Powe Supply Voltage range AC/DC 85-265V or DC24V(±10%) or DC48V(±10%)
Power consumption ≤3W
Environment Temperature Normal operating temperature: -25℃ ~ +55℃
Limit working temperature: -10℃ ~ +45℃
Storage temperature: -40℃ ~ +70℃
Humidity ≤93%RH, no condensation, no corrosive gas
Altitude ≤2000m





DC Battery                                            Wiring and dimensions










Acrel DJSF1352-RN Din Rail Dc Voltage Meter Acrel Dc Measurement Dc Dual-circuits Monitoring 0

Acrel DJSF1352-RN Din Rail Dc Voltage Meter Acrel Dc Measurement Dc Dual-circuits Monitoring 1





48/24/12V DC; 85-265V AC Power Supply                    Application






Acrel DJSF1352-RN Din Rail Dc Voltage Meter Acrel Dc Measurement Dc Dual-circuits Monitoring 2

Acrel DJSF1352-RN Din Rail Dc Voltage Meter Acrel Dc Measurement Dc Dual-circuits Monitoring 3



Base station                                                               Certificate


Acrel DJSF1352-RN Din Rail Dc Voltage Meter Acrel Dc Measurement Dc Dual-circuits Monitoring 4Acrel DJSF1352-RN Din Rail Dc Voltage Meter Acrel Dc Measurement Dc Dual-circuits Monitoring 5



Manufacturer Exhibition


Acrel DJSF1352-RN Din Rail Dc Voltage Meter Acrel Dc Measurement Dc Dual-circuits Monitoring 6





Manufacturer Factory

Acrel DJSF1352-RN Din Rail Dc Voltage Meter Acrel Dc Measurement Dc Dual-circuits Monitoring 7





Energy meter/Current sensor/Solutions, please Contact us.Acrel DJSF1352-RN Din Rail Dc Voltage Meter Acrel Dc Measurement Dc Dual-circuits Monitoring 8

Acrel DJSF1352-RN Din Rail Dc Voltage Meter Acrel Dc Measurement Dc Dual-circuits Monitoring 9
