Acrel PZ72L-D series dc energy meter pv telecom power meter dc measurement dc digital power meter dc power consumption
Contact Person : Dina Huang
Phone Number : 18761502682
WhatsApp : +8618761502682
| Minimum Order Quantity : | 1 Pieces | Price : | 62 |
|---|---|---|---|
| Packaging Details : | It is packed in a crash bag and then put into a cardboard box. | Delivery Time : | 2-3 days |
| Payment Terms : | T/T | Supply Ability : | 8000 Piece/Pieces per Day |
| Place of Origin: | Jiangsu, China | Brand Name: | Acrel |
|---|---|---|---|
| Certification: | IEC | Model Number: | AMC16-DETT |
|
Detail Information |
|||
| Accuracy Class: | 1.0 | Output Voltage: | 200A/5V |
|---|---|---|---|
| Operating Temperature: | -20℃~+60℃ | Product: | Acrel AMC16-DETT Telecom Station DC Kwh Consumption 6 Channels Meter |
| Communication: | RS485 Port | Certificate: | IEC |
| Installation: | Din Rail | Rated Voltage: | -40V~-60VDC |
| High Light: | AMC16-DETT,AMC16-DETT energy meter,AMC16-DETT power meter |
||
Product Description

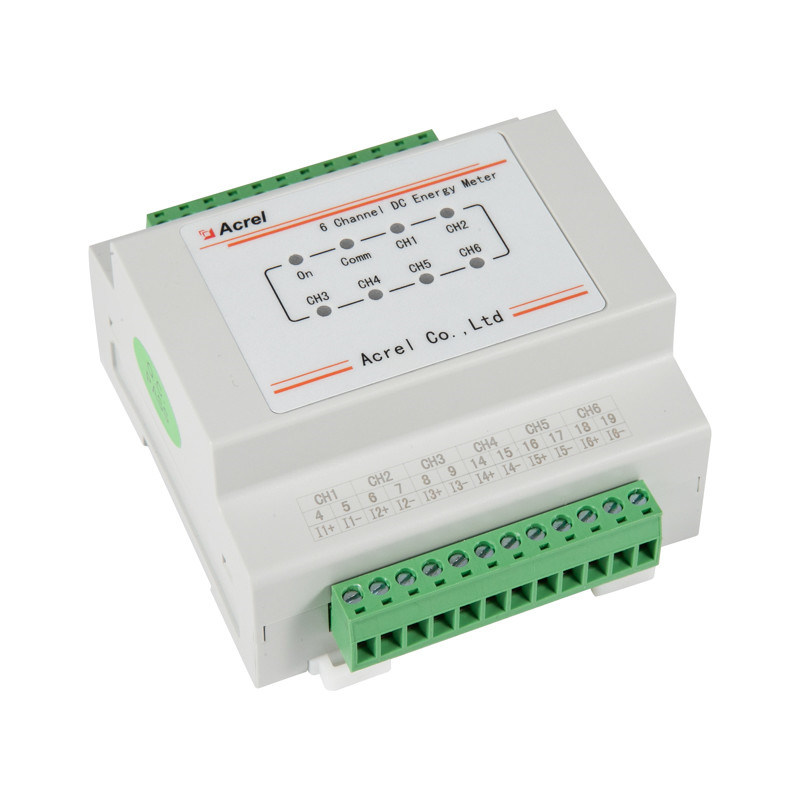

AMC16-DETT Base Station DC Energy Meter
Base station dedicated DC energy meter AMC16-DETT is specially designed for base stations where have sharing requirements, and switch power supply is without the function of sub-user metering. The meter could measure 6 circuits DC energy, and supply working current to the matched hall sensors. Meanwhile, it can realize zero drift calibration by upper computer software. have the functions of telemetering,teleindication,teleadjusting, metering at real time, energy quality abnormal alarm, data storage and processing, data interaction. This meter can measure DC power consumption of three operators, providing detail datas for base station.
Acrel AMC16-DETT telecom station DC kwh consumption 6 channels meter
●DC rated voltage: 1 channel: -48VDC
●Accuracy:1%In≤I≤10%In error±2.5%; I>10%In error±2%
●RS485(MODBUS-RTU)
●LED display
●DIN 35 mm
Parameter
| Input | DC voltage | 1 channel: -48VDC |
| DC current | 6 channel hall current sensor,total DC200A/5V,Telecom, Mobile,Unicom and the 1st channel reserve 50A/5V, 2nd channel reserve 100A/5V. |
|
| Grid power monitoring | 1 channel: 0-5VDC | |
| Overload capacity | Voltage:1.2times continued,2 times continued 1s; Current: 1.2 times continued,10 times continued 1s. |
|
| Accuracy (superposition hall sensors) | 1%In≤I≤10%In error±2.5%; I>10%In error±2% | |
| resolution | Voltage output accuracy 0.01V; current output accuracy 0.01A; power output accuracy 0.01kw; energy output accuracy 0.01kwh |
|
| Functions | Basic function | Monitor device system time, total voltage, output total current, power, energy, each channel voltage, current, power, energy; LED indicator display;485 communication |
| Metering function | Start current: under rated voltage, when the load current value of the meter doesn’t exceed 1% of the max. current, the meter starts. Shunt running current: when there is no current in the current circuit of the meter, and 85%-125%of the rated voltage is applied on the voltage circuit, the calculator shall not have more than |
|
| Alarm function | DC low voltage output alarm,DC high voltage output alarm,one power down alarm, module voltage loss alarm, metering branch error alarm, internal program error alarm, clock error alarm, memory failure alarm and AC input power failure alarm | |
| Timing function | support broadcast timing, could remote timing to the meter by RS485 | |
| Hall CT power supply | Power supply output:+12V/100Ma, -12V/50mA | |
| Clock accuracy | ≤0.5s/d(23℃),≤1s/d(-20℃～60℃) | |
| Powe supply for ther meter | -40VDC~ -60VDC | |
| Power consumption | ≤2W | |
Typical connection--AMC16-DETT Telecom Station Dc Power Consumption Meter Kwh 6 Channels
Wiring
Certification
Company profile
ACREL CO., Ltd. was founded in 2003 and successfully listed on GEM in 2012. ACREL is a high-tech enterprise that integrats R&D, production, sales and service. since its establishment, it committed to provide users with energy efficiency management and power security system solutions. Acrel Electric has a complete production line from cloud platform software to sensors.
Since the listing in 2012, our company has maintained steady growth. The company will adhere to the concept of "innovation, efficiency, unity, integrity", adhere to steady operation and continuous innovation, and provide more high-quality products, services and solutions for power system users and micro-grid.
At Vietnam Power Equipment and Technology Exhibition, many customers from all over the world, our Acrel team has carried out detailed analysis and explanation of a series of difficult problems raised by customers. Under the enthusiasm of our technical team and sales team, the customer gave us a high evaluation of our products and services.
Acrel Co.,LTD [Stock Code:300286.SZ ] attended HANNOVER MESSE, is one of the few leading companies who provides various systematic of power monitoring, power control, energy management and electrical safety for smart grid users. Since 2003, we have been focused on the research, production and sales of intelligent electric meters and current sensors.
If you have any special requirements, for example another current ratio or special size ,please feel free to Contact Us.
