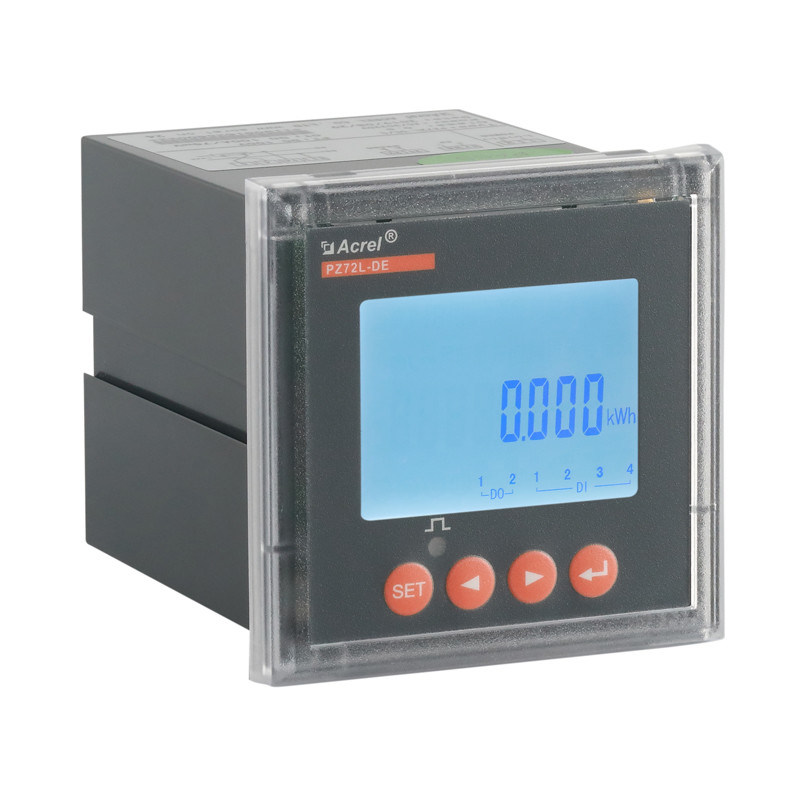

Acrel PZ72L-D series dc energy meter pv telecom power meter dc measurement dc digital power meter dc power consumption
Contact Person : Dina Huang
Phone Number : 18761502682
WhatsApp : +8618761502682
| Minimum Order Quantity : | 1 pcs | Price : | USD 133/pcs |
|---|---|---|---|
| Packaging Details : | Individually packed in big carton | Delivery Time : | 3 days |
| Supply Ability : | 10000/month |
| Place of Origin: | China | Brand Name: | Acrel |
|---|---|---|---|
| Certification: | CE | Model Number: | PZ72(L)-DE |
|
Detail Information |
|||
| Accuracy: | Class 0.5 | Frequency: | 50/60Hz |
|---|---|---|---|
| Power Supply: | 85～265VAC/DC,20～60VDC,100～350VDC | Power Consumption: | ≤2W |
| Input Voltage: | 0～100V,0～500V,0～1000V | Dimension(L*W*H): | 75*75*98mm |
| Installation: | DIN 35 Mm | DI/DO: | 2DI/2DO |
| High Light: | DIN 35mm DC Energy Meter,2DO DC Energy Meter,DIN 35mm dc electric meter |
||
Product Description
PZ series DC power meter is designed for solar power, DC screen, telecom base station and other applications. It can measure various power parameters in DC system.
Technical Features
| Items | Features | |
|
Environment |
Temperature | -40℃~125℃ |
| Humidity | ≤95% | |
| atmospheric pressure | 86kPa~106kPa | |
|
ATE100M/100/200 Active wireless temperature sensor |
Wireless frequency | 470MHz |
| Communication distance | 150m in open area | |
| Sampling frequency | 25s | |
| Transmitting frequency | 25s-5min | |
| Power source | Battery | |
| Installation | Magnetic / bolted /Belt | |
| Range of temperature | -50℃~+125℃ | |
| Precision | ±1℃ | |
| Application | Joints in high or low voltage switchgears | |
| Battery life | ≥5 years | |
|
400 Passive wireless temperature sensor |
Wireless frequency | 470MHz |
| Communication distance | 150m in open area | |
| Sampling frequency | 15s | |
| Transmission frequency | 15s | |
| Power source | CT-powered, starting current≥5A | |
| Installation | alloy chip fixing | |
| Sensor probe | alloy bottom | |
| Range of temperature | -50℃~125℃ | |
| Precision | ±1℃ | |
| Application | Joints in high or low voltage switchgears | |
|
ATE100P/200P Outdoor wireless temperature sensor |
Wireless frequency | 470MHz |
| Communication distance | 150m in open area | |
| Sampling frequency | 25s | |
| Transmitting frequency | 25s-5min | |
| Power source | Battery | |
| Installation | bolted /Belt | |
| Range of temperature | -50℃~+150℃ | |
| Precision | ±0.5℃ | |
| Application | Voltage switchgears | |
| Battery life | ≥5 years | |
| Protection level | IP68 |
