Product Description

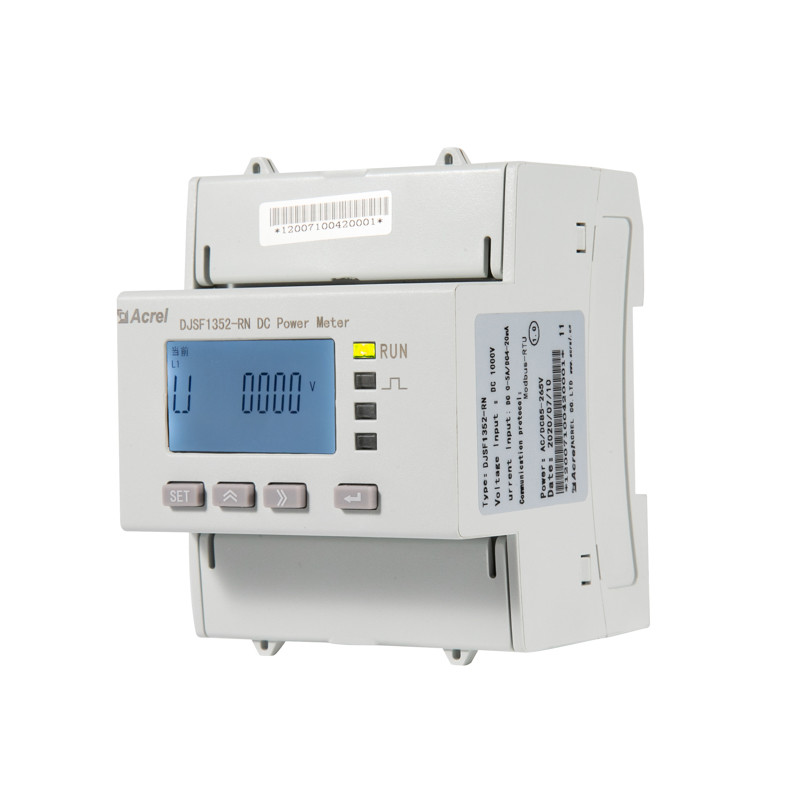

DJSF1352-RN Rail-Mounted DC Power Meter
● RS485 communication interface
● Supports Modbus-RTU protocol
● Relay alarm output and digital input function
● Set the ratio, alarm, and communication through the meter panel keys according to different requirements
● Event recording of switch (Modbus protocol), programming and event setting records, instantaneous and timing freeze function of data, maximum and minimum value recording function of voltage and current power
|
Characteristic |
||
|
|
|
| Communication | Display | Rated U and I |
|
RS485(Modbus-RTU) DL/T 645-2007 |
LCD display |
Voltage: DC 0-1000V Current: Shunt:0-75mV, Hall sensor:0-20mA,4-20mA,0-5V,0-10V 3×1(6)A,3×10(80)A |
Function
Accuracy
Class 1
Power Supply(self supply)
AC/DC 85-265V or DC24V(±10%) or DC48V(±10%)
Input consumption
Voltage: ≤0.2VA current ≤0.1VA
Dimension(L*W*H)
72*73*89.8mm
Installation
DIN35mm rail mounted
Switch relay
DC 30V/3A AC 220V/3A
Technical parameters
LCD Display
Wiring
Typical connection
