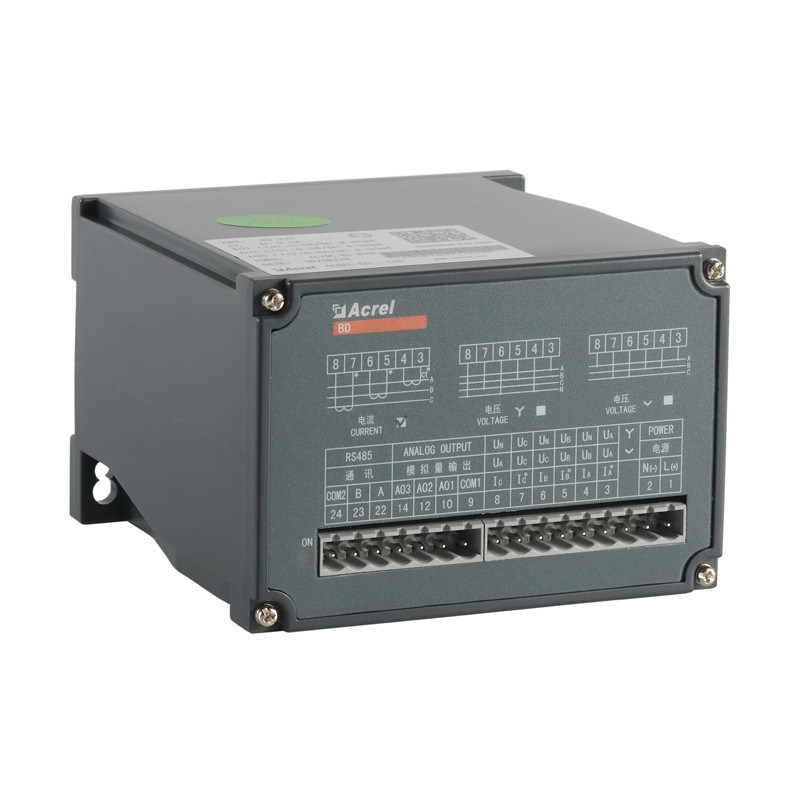

AC Multi Function Transducer BD-4E 3 Phase 4 Wire
AC Multi Function Transducer BD-4E 3 Phase 4 Wire AC Multi Function Transducer BD-4E 3 Phase 4 Wire AC Multi Function Transducer BD-4E 3 Phase 4 Wire AC Multi Function Transducer BD-4E 3 Phase 4 Wire
Contact Now

AC Multi Function Transducer BD-4E 3 Phase 4 Wire

Minimum Order Quantity : 1 Delivery Time : 5-8work days
Payment Terms : T/T
Place of Origin: CHINA Brand Name: Acrel
Certification: CE Model Number: BD-4E

Detail Information
Consumption: ≤1W Output Signal: 4~20mA/0~20mA DC Or 0~5V/0~10V DC Or RS485
Overload: 1.2 Times Of Rated Value Mounting Method: DIN Rail Mounting
Communication: Modbus-RTU Impedance: 0.01Ω
Nominal Value Output: 4~20mA/0~20mA DC Or 0~5V/0~10V DC Or RS485 (MODBUS-RTU) Application: Industrial Automation
Weight: ≤300g Storage Temperature: -40℃ To 85℃
Isolation Voltage: ≥2500VAC Input Current: AC 1/5A
Theory: Current Sensor Phase: Three
Standard: GB/T13850
Highlight:

3 Phase AC Multi Function Transducer

,

4 Wire AC Multi Function Transducer

,

BD-4E AC Multi Function Transducer

Product Description

AC Multi-function Transducer BD-4E (3-phase 4-wire)





● Measurement: 3-phase Current, Voltage, Active&Reactive Power, Power Factor, Frequency, kWh, kVarh and etc
● Accuracy: Class 0.5
● Input: 0~1A/0~5A AC and 0~100V/0~220V/0~380V AC
● Output: 4~20mA/0~20mA DC or 0~5V/0~10V DC or RS485 (MODBUS-RTU)
● Power Supply: 85~265V AC(50Hz) or 100~350V DC or 24V/48V DC
● Wiring: 3-phase 4-wire
● Applicaiton: Paired with PLC for Industrial Automation; Used for Metering
● Response Time: ≤400ms
● Installation: 35mm DIN Rail/Screw fixed
● Standard&Certificate: CE

The BD-4E multi-function transducer from Acrel has temperature coefficient of 200ppm/°C, reaction time of 400ms, and accuracy class of 0.5%. It can be mounted using a 35mm DIN rail or screw fixation and runs on an auxiliary power supply of 85V–265V AC, 100V–350V DC, or 24V–48V DC (for some variants).

Series Overview


AC Multi Function Transducer BD-4E 3 Phase 4 Wire 0
