Ba20-AI/I Acrel 12vdc Electric Current Transducers Analog 4-20ma Modbus Rtu
Contact Person : Dina Huang
Phone Number : 18761502682
WhatsApp : +8618761502682
Detail Information |
|||
Auxiliary Power: | DC 12V DC 24V | Through-hole Size: | φ50mm |
---|---|---|---|
Input: | AC 0~(0.1~1)A (limitation Of Leakage Currents) | Output: | DC4-20mA,or 0-20mA,0-5V,0-10V Etc |
Temperature Coefficient: | ≤200ppm/℃ | ||
Highlight: | 1W AC Current Transducer,AC Current Transducer 5V,1W ac current sensor |
Product Description

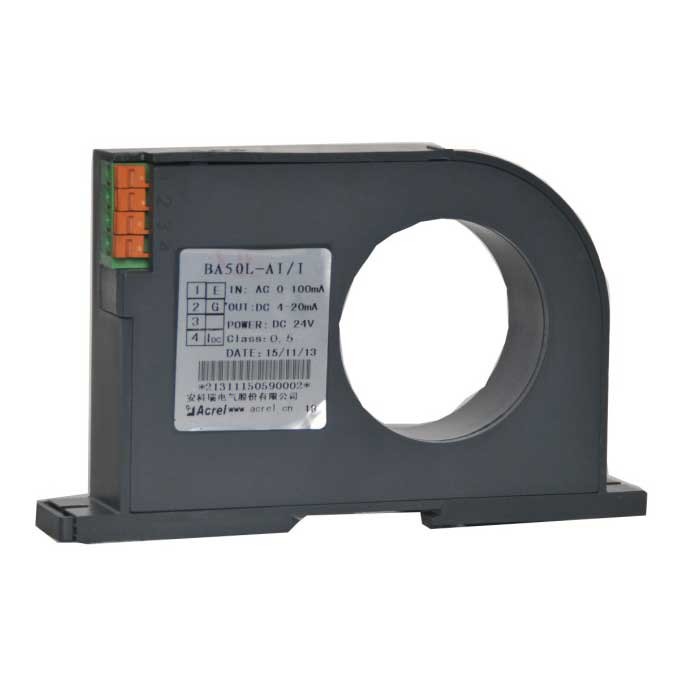

AC Leakage Current Transducer
BA50L AC Leakage Current Transducer is a converter residual current transformer that mainly detects the leakage current of the electrical system. It can grasp the status of electrical circuits and equipment at any time to prevent fires and other accidents caused by leakage.
AC Leakage Current Transducer
BA series products apply the principle of electromagnetic induction to measure the AC current in the power grid in real time, and use constant current and linear compensation technology to isolate and transform it into a standard DC signal output.
Technology parameter
BA05-AI/I(V) | BA10-AI/I(V) | BA20-AI/I(V) | BA50-AI/I(V) | BA50L-AI/I(V) | ||
Auxiliary power |
DC 12V/24V
|
DC 12V/24V | DC 12V/24V | DC 12V/24V | DC 12V/24V | |
Consumption | ≤1W | ≤1W | ≤1W | ≤1W | ≤1W | |
Through-hole size | φ5mm | φ10mm | φ20mm | φ50mm | φ50mm | |
Input | Current | AC 0~(0.5~10)A | AC 0~(8~50)A | AC 0~(40~200)A | AC 0~(60~600)A |
AC 0~(0.1~1)A |
Output | Nominal value | DC4-20mA,or 0-20mA,0-5V,0-10V etc | ||||
Load resistance | Current output≤500Ω,Voltage output≥1kΩ | |||||
Accuracy Class | 0.5% | |||||
Response time | ≤350ms | |||||
Temperature | Operation:-10 to +55℃ Storage:-25 to +70℃ | |||||
Temperature coefficient | ≤200ppm/℃ | |||||
Installation | (Rail)DIN35,fix on cubicle with screws | |||||
Standards | GB/T 13850 |
Selection
Type | Function | ||||
BA05-AI/I | In:0-10A; Out:4-20mA/0-20mA; Powered: DC 24V/12V | ||||
BA05-AI/V | In:0-10A; Out:1-5V/0-5V; Powered: DC 24V/12V | ||||
BA10-AI/I | In:0-50A; Out:4-20mA/0-20mA; Powered: DC 24V/12V | ||||
BA10-AI/V | In:0-50A; Out:1-5V/0-5V; Powered: DC 24V/12V | ||||
BA20-AI/I | In:0-150A; Out:4-20mA/0-20mA; Powered: DC 24V/12V | ||||
BA20-AI/V | In:0-150A; Out:1-5V/0-5V; Powered: DC 24V/12V | ||||
BA50-AI/I | In:0-600A; Out:4-20mA/0-20mA; Powered: DC 24V/12V | ||||
BA50-AI/V |
|
||||
BA50l-AI/I | Measure leakage current, input current AC 0-1A, output:4-20mA or 0-5V |
Certification
Company profile
ACREL CO., Ltd. was founded in 2003 and successfully listed on GEM in 2012. ACREL is a high-tech enterprise that integrats R&D, production, sales and service. since its establishment, it committed to provide users with energy efficiency management and power security system solutions. Acrel Electric has a complete production line from cloud platform software to sensors.
Since the listing in 2012, our company has maintained steady growth. The company will adhere to the concept of "innovation, efficiency, unity, integrity", adhere to steady operation and continuous innovation, and provide more high-quality products, services and solutions for power system users and micro-grid.
At Vietnam Power Equipment and Technology Exhibition, many customers from all over the world, our Acrel team has carried out detailed analysis and explanation of a series of difficult problems raised by customers. Under the enthusiasm of our technical team and sales team, the customer gave us a high evaluation of our products and services.
Acrel Co.,LTD [Stock Code:300286.SZ ] attended HANNOVER MESSE, is one of the few leading companies who provides various systematic of power monitoring, power control, energy management and electrical safety for smart grid users. Since 2003, we have been focused on the research, production and sales of intelligent electric meters and current sensors.
If you have any special requirements, for example another current ratio or special size ,please feel free to Contact Us.
