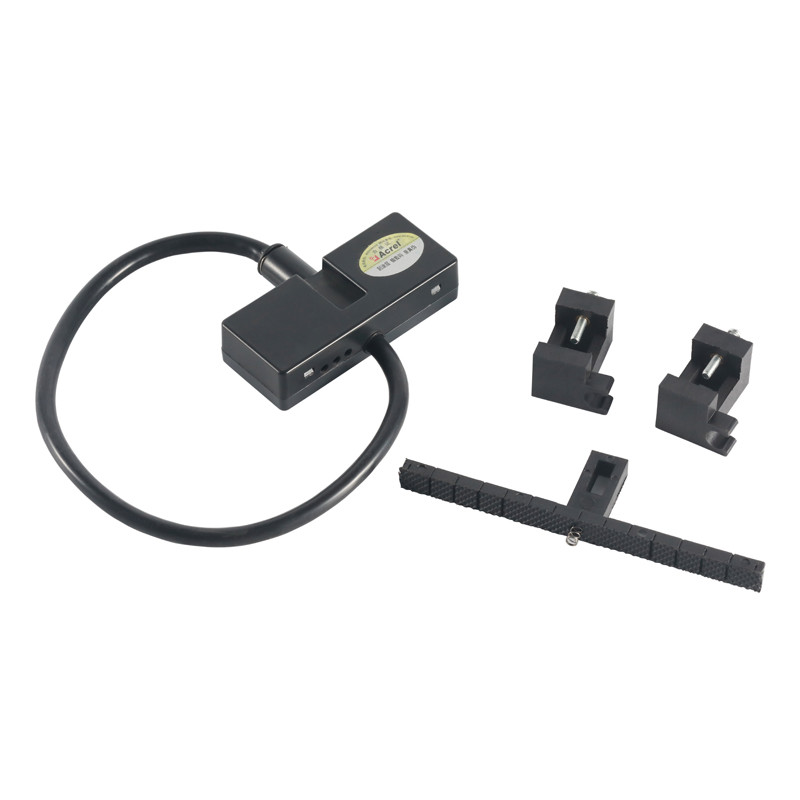

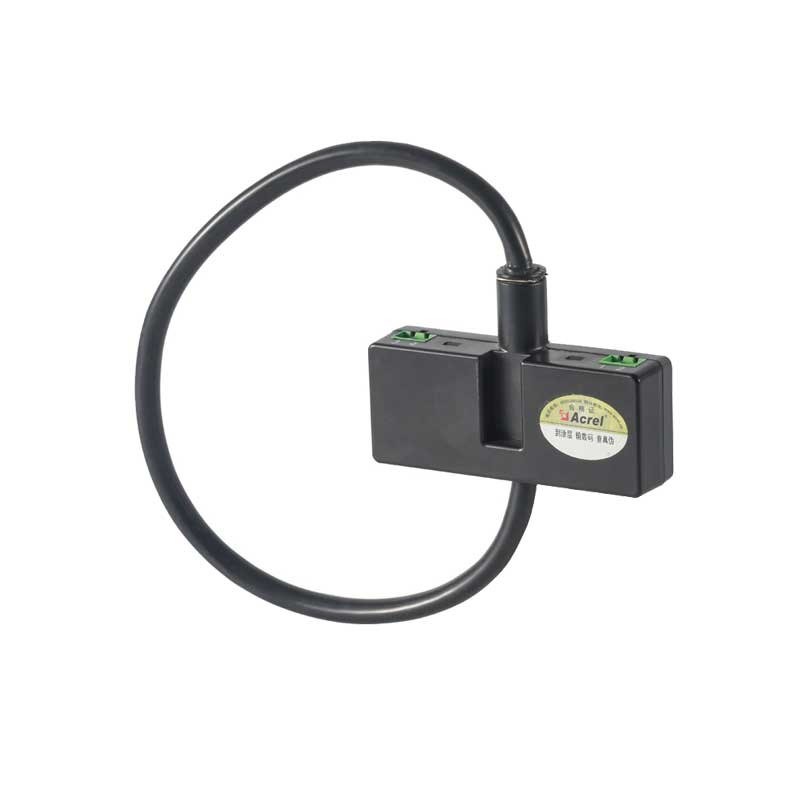

DC24V Rogowski Coil Current Sensor / 30000A Rogowski Current Transducer BR Series

Minimum Order Quantity :	1 pcs	Price :	USD 31-67/pcs
Packaging Details :	Individually packed in big carton	Delivery Time :	3 days
Supply Ability :	10000/month

Place of Origin:	China	Brand Name:	Acrel
Certification:	CE	Model Number:	BR-AI

Detail Information
Auxiliary Power:	DC 24V	Comsumption:	≤1W
Overload:	1.2 Times Of Rated Value	Direct Measurement:	Up To 30000A
Accuracy Class:	0.5%	Application:	Industrial Automation
Temperature Coefficient:	-10-+55℃	Installation:	Bracket
High Light:	DC24V Rogowski Coil Current Sensor , 30000A Rogowski Current Transducer , Rogowski Coil Current Sensor 30000A

Product Description

Rogowski coil and RMS measurement,Super-current measurement, direct measurement up to 30000A, Overload: 1.2 times of rated value.

Technical Features

Technical parameter		ADL100-EY
Voltage	Reference voltage	3*220/380V
	Reference frequency	50Hz
	Consumption	<4VA(Each phase)
Current	Input Current	1(6)A,10(80)A
	Starting Current	Connect directly: 0.004 Ib, connect via CT: 0.002In
	Consumption	<4VA
Measurement performance	Accuracy of measuring	0.5Class
Clock accuracy		Error ≤0.5s/d
Active pulse	Pulse width	80ms±20ms
Active pulse	Pulse constant	6400imp/kWh,400imp/kWh
Communication	Interface	RS485(A+,B-)
	Connection mode	Shielded twisted pair conductors
	Protocol	MODBUS-RTU

Dimension
