Dc Output 4-20ma 0-10v Split Core Type Current Transformer 1W
Contact Person : Dina Huang
Phone Number : 18761502682
WhatsApp : +8618761502682
| Minimum Order Quantity : | 1 | Price : | USD32 |
|---|---|---|---|
| Packaging Details : | 48*45.5*20 | Delivery Time : | 5-8 work days |
| Payment Terms : | L/C, T/T | Supply Ability : | 2000000 pcs per year |
| Place of Origin: | Jiangsu, China | Brand Name: | Acrel |
|---|---|---|---|
| Certification: | ISO/CE | Model Number: | BA20-AI/I |
|
Detail Information |
|||
| Input: | 0-200A | Output: | 4-20mA , 0-5V |
|---|---|---|---|
| Power Supply: | 12VDC, 24VDC | Signal: | Analog |
| Communication: | Modbus-RTU | Name: | Ba20-AI/I Acrel Electric Current Transducers Analog 4-20ma Modbus Rtu |
| High Light: | 12vdc electric current transducers,modbus rtu electric current transducers,acrel electric current transducers |
||
Product Description
Technical Parameter
| Input | AI——AC Single Phase |
| Output | I——Direct Current e.g. 4-20mA ; V——Direct Current Voltage e.g. DC0-5V |
| Power Supply | DC12V or DC24V |
| Measuring Aperture | 20-φ20mm, 50-φ50mm, |
| Communication | RS485 Modbus-RTU |
Dimension
Integrated type
BA20(II)-AI/I(V) BA50(II)-AI/I(V) ; BA50L(II)-AI/I(V)
Split type
BA20(II)-AI/I(V)-F BA50(II)-AI/I(V)-F ; BA50L(II)-AI/I(V)-F
Wiring
Installation Diagram
Integrated Installation
Integrated installation, a rotating structure can be used in the perforated part.
There are Φ20, Φ50 of hole sizes for your selection.
The main body could be connected to the display screen in order to display current and set parameters when integrated installation ( use existing display screen as far as possible).
Split-type Installation

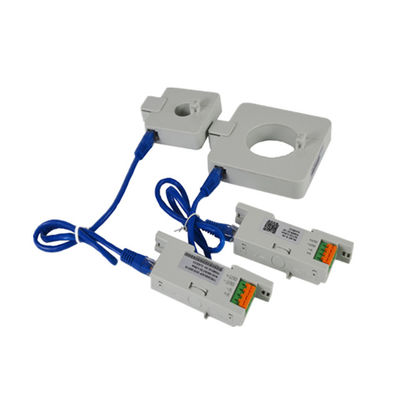

The current transformer is connected to the main body through network cable when using split-type connection.
Other types of Installation
TS3 din-rail mounting, or fix it on the cabinet with screws.
