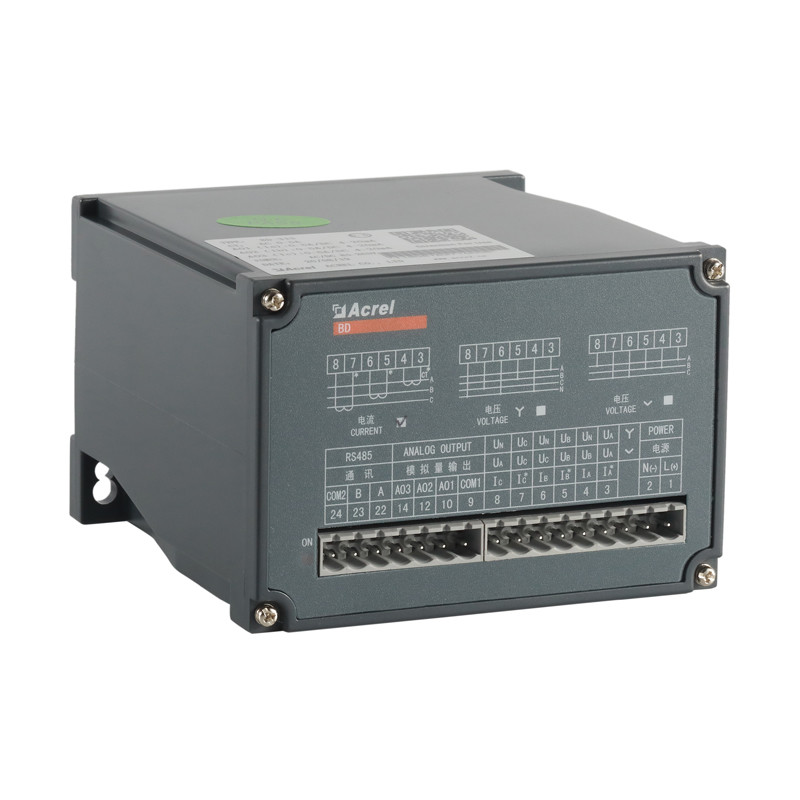

GB/T 13850 Standards 50Hz Electric Current Transducers BD-3P Series

Minimum Order Quantity :	1 pcs	Price :	USD 53-248/pcs
Packaging Details :	Individually packed in big carton	Delivery Time :	3 days
Supply Ability :	10000/month

Place of Origin:	China	Brand Name:	Acrel
Certification:	CE	Model Number:	BD-3P

Detail Information
Direct L-L:	Up To 480V AC	Direct L-N:	Up To 276V AC
Direct Current:	Up To 5A AC	Analog Output:	DC 5-10V,0-10V,0-20mA.4-20mA
Accuracy Class:	0.5%	Auxiliary Power:	85-265V,AC/DC,DC24V,DC48V
Temperature Coefficient:	-10 To +55℃	Standards:	GB/T 13850
Highlight:	GB/T 13850 Electric Current Transducers , 50Hz Electric Current Transducers , 50Hz electric current sensor

Product Description

BD-3P series Electricity Transducer can measure Voltage, Current, Power, Power factor, Frequency; 1.2 times of rated value overload; DC 0-5V/0-10V/0-20mA/4-20mA all can be choosed as analog output.

Technical Features

Technical parameter		ADL100-EY
Voltage	Reference voltage	3*220/380V
	Reference frequency	50Hz
	Consumption	<4VA(Each phase)
Current	Input Current	1(6)A,10(80)A
	Starting Current	Connect directly: 0.004 Ib, connect via CT: 0.002In
	Consumption	<4VA
Measurement performance	Accuracy of measuring	0.5Class
Clock accuracy		Error ≤0.5s/d
Active pulse	Pulse width	80ms±20ms
Active pulse	Pulse constant	6400imp/kWh,400imp/kWh
Communication	Interface	RS485(A+,B-)
	Connection mode	Shielded twisted pair conductors
	Protocol	MODBUS-RTU

Dimension

GB/T 13850 Standards 50Hz Electric Current Transducers BD-3P Series 0
