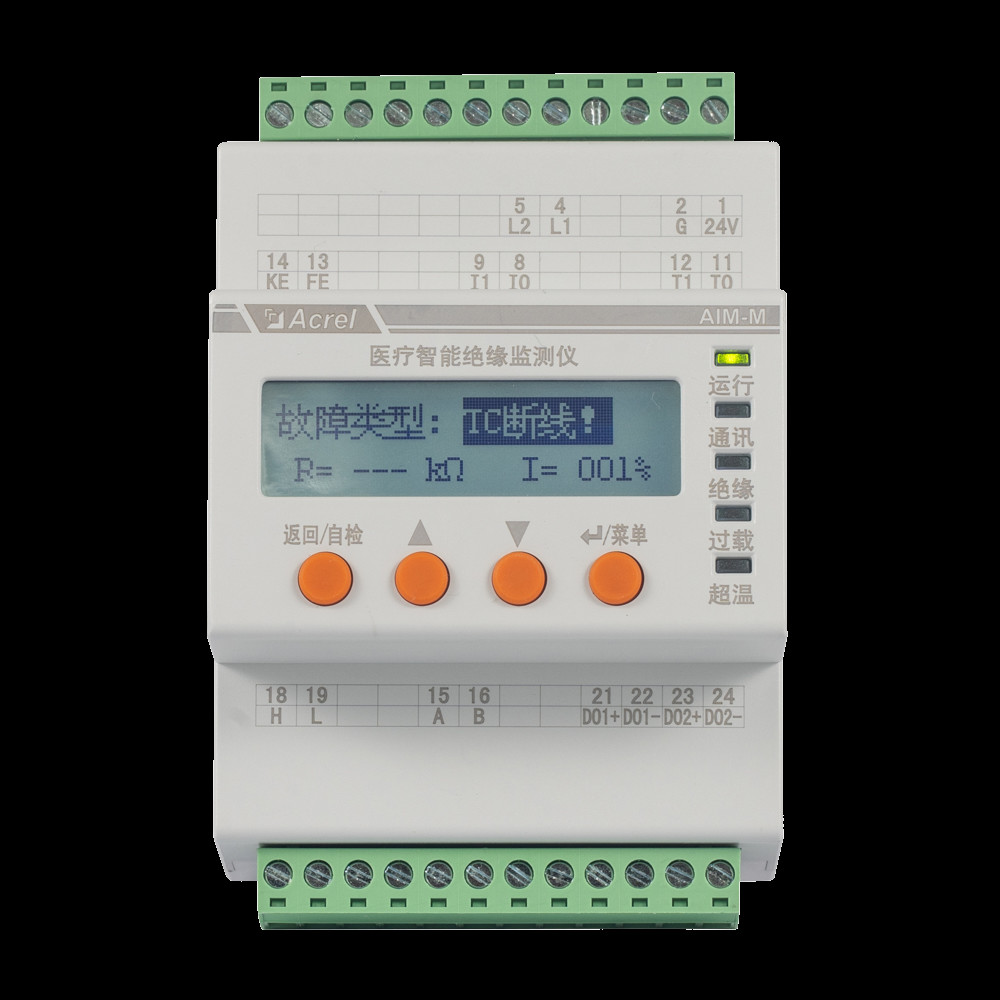

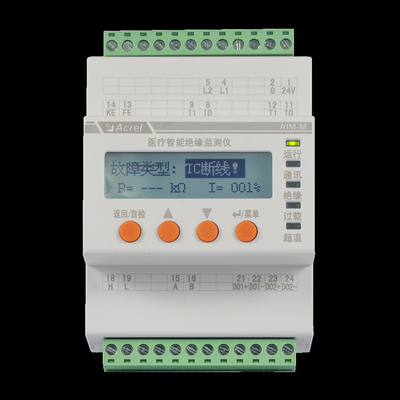

Acrel AIM-M300 Medical Intelligent Insulation Monitor Test Signal Generator Monitor De Aislamiento Para Hospitales

Minimum Order Quantity : 1pc Packaging Details : carton
Delivery Time : 5-8 work days Payment Terms : T/T
Supply Ability : 5000pc/day
Place of Origin: China Brand Name: Acrel
Certification: CE Model Number: AIM-M300

Detail Information

Product Name: Insulation Monitoring Device Display: LCD/LED
Power Supply: DC 18-36V
High Light:

medical intelligent insulation monitor

,

AIM-M300 insulation monitor

Product Description

AIM-M300 series medical intelligent insulation monitor



    AIM-M300 series medical intelligent monitoring device adopts advanced microcontroller technology, which has high integration, compact size, convenient installation and integrates intelligence, digitalization and networking in one. It is suitable for insulation monitoring of isolation power system in Class 2 medical locations 2 such as operating room and intensive care unit.



Function features of AIM-M300 series medical intelligent monitoring device:
 Functions of real-time monitoring and fault alarming of the grounding insulation resistance, transformer load current and transformer winding temperature of the monitored IT system;

 Locating current injector for insulation fault location systems;

 Real-time monitor the line disconnection fault, current sensor disconnectiobn,temperature sensor disconnection fault and the functional grounding line disconnection fault of the monitored system, and give the alarm indication within 2s after the fault occurs. when the fault occurs;
 Relay alarm output, LED alarm indication and other faults indication functions;

 Two kinds of fieldbus communication technology, which are used for centralized alarm and display device, insulation fault locator and upper computer management software communications, and monitoring the operation status of IT system in real time.

 Events logging function, which can record alarm occurrence time and fault type and is convenient for operation personnel to analyze the operation conditions of system and promptly eliminate the faults.



Technical Parameters

AUX Power Voltage DC 18-36V Locate Signal Locate voltage <12V
Power consumption ≤6W Locate current ≤1mA
Insulation Monitoring Resistance range 15-999kΩ Alarm Output Output mode 2 output relay
Response value 50-999kΩ Contact rating AC 250V/3A
DC 30V/3A
Relative uncertainty ±10% Communication
Protocol
Communication 1 RS485, Modbus-RTU
Response time ≤3s Communication 2 CAN, customize
Permissible system
leakage capacitance
≤5μF Environment Operating temperature -10~+55°C
Allowed external
voltage Ufg
≤DC 280V Transport temperature -25~+70°C
Measuring voltage ≤13V Storage temperature -25~+70°C
Measuring current ≤50μA Relative humidity 5-95%, No condensation
lmpedance Zi ≥240kΩ Altitude <2500m
Current Monitoring Measuring Value 2.1-60A Insulation method guide
Measuring Accuracy ±5% Display Method LCD, LED
Alarm Value 5-80A Fault Record 20
Temperature Monitoring Therrnal resistor two Pt100 IP degree IP40
Measuring range 50~+200°C Rated impulse voltage/ pollution degree 4KV/III
Alarm value range 0~+200°C EMC/EMR IEC61326-2-4







Monitor de aislamiento                                    Dimension and wiring


Acrel AIM-M300 Medical Intelligent Insulation Monitor Test Signal Generator Monitor De Aislamiento Para Hospitales 0









Acrel AIM-M300 Medical Intelligent Insulation Monitor Test Signal Generator Monitor De Aislamiento Para Hospitales 1







Acrel AIM-M300 Medical Intelligent Insulation Monitor Test Signal Generator Monitor De Aislamiento Para Hospitales 2





Acrel AIM-M300 Medical Intelligent Insulation Monitor Test Signal Generator Monitor De Aislamiento Para Hospitales 3
