Level Ⅲ Hospital Isolated Power System Seven Pieces Set

Minimum Order Quantity : 1 pcs Price : USD 100-130/pcs
Packaging Details : Individually packed in big carton Delivery Time : 3 days
Supply Ability : 10000/month
Place of Origin: China Brand Name: Acrel
Certification: CE Model Number: Medical IT system

Detail Information

Operating Temperature: -10℃~+55℃ Storage Temperature: -20℃~+70℃
Relative Humidity: ≤ 95% No Condensation Altitude: ≤2500m
Pollution Level: Level Ⅲ Installation Category: Level Ⅲ
High Light:

Level Ⅲ Hospital Isolated Power System


Hospital Isolated Power System Seven Pieces

Product Description

Medical isolation power supply monitoring system is used to centrally monitor the operation of medical IT system in all medical buildings. This centralized monitoring system can be set up in the duty room of hospital electrical operation and maintenance personnel, or integrated in other power monitoring systems. It can be monitored by professional electrical personnel. Once a set of IT system fails, the electrical maintenance personnel can make a judgment in the first time and deal with it according to the situation on the spot.




Level Ⅲ Hospital Isolated Power System Seven Pieces Set 0 AITR Series Medical Isolation Transformer
● isolating transformers for medical IT systems
● Double insulation treatment, Electrostatic shielding layer
● PT100 temperature sensor
● Rated power: 3.15…10KVA
● CE

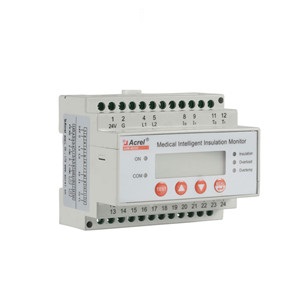

AIM-M200主图4.jpg AIM-M200 Medical Intelligent Insulation Monitor
● Function of real-time monitoring and fault alarming of the monitored IT system;
● Relay alarm output, LED alarm indication and other faults indication functions;
● Events logging function;
Level Ⅲ Hospital Isolated Power System Seven Pieces Set 2 AKH-0.66P26 Current Transformer
● Protective current transformer;
● Support for the Insulation monitor;

● Max current  60A ,the transformation ratio is 2000:1;

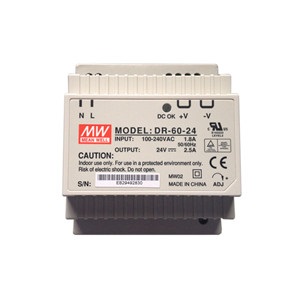

DR-60-24-主图.jpg DR-60-24 DC Stabilized Power Supply
● To employ isolated linear transformer with the characteristics of strong capacity of resisting disturbance and small ripple etc;
● AC 220V input, DC 24V output, with max output power of 3 W;

● Used for the DC 24V power supply for AID series centralized alarm and display instrument and other instruments.;

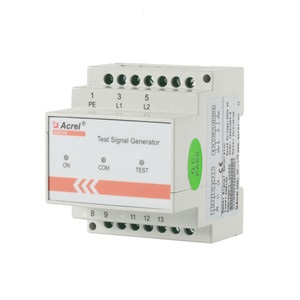

ASG100-主图.jpg ASG100 test signal generator
● Can Bus communication;
● When the monitored IT system has an insulation fault, it can initiate and generate the fault location signal to the system, and realize fault locating function with the help of fault locator;;

● Functions of L1, L2 disconnection detection, and can display the results through the luminous LED;

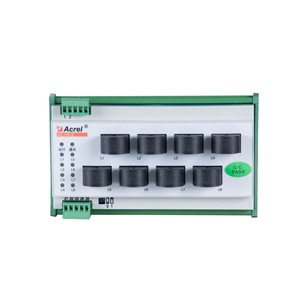

AIL100-8主图3.jpg AIL100-4/AIL100-8 Insulation Fault Locator
● CAN bus technology;

● Cooperate with ASG100 test signal generator to realize fault locating function;

● Can locate 4 or 8 circuits;

● LED display show the fault circuit;

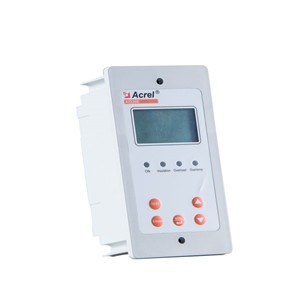

AID200主图2_副本.jpg AID200 Concentrated Alarms and Display Instrument
● Wall mounted installation;
● Can monitor 16 IT systems;

● Sound and light alarm with LCD light;

● Manually eliminate the alarm sound;

● Events logging function;
