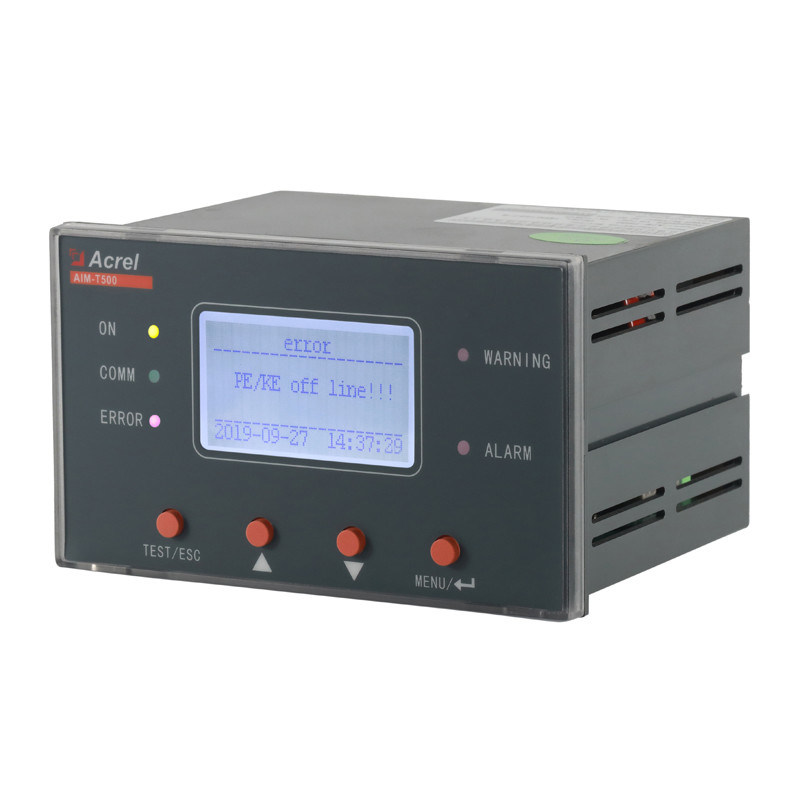

AIM-T500 40~60Hz Insulation Monitoring System Three Phase
AIM-T500 40~60Hz Insulation Monitoring System Three Phase AIM-T500 40~60Hz Insulation Monitoring System Three Phase AIM-T500 40~60Hz Insulation Monitoring System Three Phase AIM-T500 40~60Hz Insulation Monitoring System Three Phase AIM-T500 40~60Hz Insulation Monitoring System Three Phase
Contact Now

AIM-T500 40~60Hz Insulation Monitoring System Three Phase

Minimum Order Quantity : 1 Piece Price : $1,850.00 / Piece
Place of Origin: Jiangsu, China Brand Name: Acrel
Model Number: AIM-T500

Detail Information
Display Type: Analog And Digital Phase: Three Phase
Measuring Energy Range: AC85~265V Accuracy Class: 1.0
Output Voltage: AC85~265V Operating Temperature: -15~50℃
Dimensions: 130*70*105mm Name: AIM-T500 Insulation Monitoring Device
Display: LCD Display Certificate: CE ISO9001
Frequency: 40~60Hz Consumption: <8W
Communication: RS485 Modbus RTU Temperature: -15~50℃
Dimension: 130*70*105mm Humidity: ≤95%
Altitude: <2500M Selling Units: Single Item
Single Package Size : 9.6X9.6X9.2 Cm Single Gross Weight: 0.800 Kg
Package Type: It Is Packed In A Crash Bag And Then Put Into A Cardboard Box.
High Light:

AIM-T500 Insulation Monitoring System

,

60Hz Insulation Monitoring System

,

60Hz insulation monitoring device

Product Description

AIM-T500 40~60Hz Insulation Monitoring System Three Phase 0
AIM-T500 40~60Hz Insulation Monitoring System Three Phase 2


AIM-T500 Insulation Monitoring Device
● AC, DC main circuits

● AC/DC main circuits with directly connected DC components, such as rectifiers

● Systems with switch-mode power supplies

● Systems with high leakage capacitances

Specification
Type

AIM-T300
AIM-T500
Aux power supply
Voltage
AC85-265V DC120V-370V


Power Consumption
8W

IT system
Voltage
＜450V
＜800V

Frequency
40-60Hz

Insulation monitoring
Measuring range
1kΩ-5MΩ
1kΩ-10MΩ

Alarm range
10kΩ-5MΩ
10kΩ-10MΩ

Accuracy
±10%

Communication

RS485(Modbus-RTU)

Standard

IEC61326-2-4

Operating alarm

-20-60℃
-15-55℃
Characteristic
AIM-T500 40~60Hz Insulation Monitoring System Three Phase 3



Communication
RS485
(Modbus-RTU)
AIM-T500 40~60Hz Insulation Monitoring System Three Phase 4



Display
128x64Bit LCD with 5 LEDs
AIM-T500 40~60Hz Insulation Monitoring System Three Phase 5



Applicable system voltage range
Up to 800V (AC,DC,AC&DC)
LCD Display
AIM-T500 40~60Hz Insulation Monitoring System Three Phase 6
Appearance
AIM-T500 40~60Hz Insulation Monitoring System Three Phase 7
AIM-T500 40~60Hz Insulation Monitoring System Three Phase 8
AIM-T500 40~60Hz Insulation Monitoring System Three Phase 9
Wiring
AIM-T500 40~60Hz Insulation Monitoring System Three Phase 10
Typical connection
AIM-T500 40~60Hz Insulation Monitoring System Three Phase 11

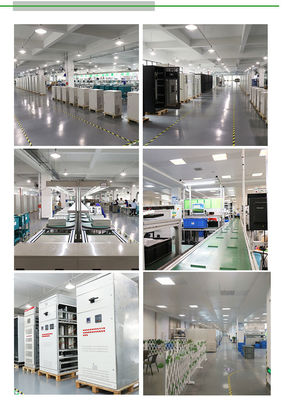

Company Profile
