class 1.0 AIM-T300 Hospital Isolated Power System Insulation Monitoring Device

Contact Now

class 1.0 AIM-T300 Hospital Isolated Power System Insulation Monitoring Device

Name: class 1.0 AIM-T300 Hospital Isolated Power System Insulation Monitoring Device
Brand: Acrel
SKU: AIM-T300
Price: 1 USD
Availability: InStock
Rating: 4.9 (121 reviews)

Minimum Order Quantity :	1 Piece	Price :	$1,480.00 / Piece

Place of Origin:	Jiangsu, China	Brand Name:	Acrel
Model Number:	AIM-T300

Detail Information
Display Type:	Analog And Digital	Phase:	Three Phase
Measuring Energy Range:	AC85~265V	Accuracy Class:	1.0
Output Voltage:	AC85~265V	Operating Temperature:	-20~60℃
Dimensions:	969676mm	Name:	AIM-T300 Insulation Monitoring Device
Display:	LCD Display	Certificate:	CE ISO9001
Frequency:	40~60Hz	Consumption:	<8W
Communication:	RS485 Modbus RTU	Temperature:	-20~60℃
Dimension:	969676mm	Humidity:	≤95%
Altitude:	<2500M	Selling Units:	Single Item
Single Package Size :	9.6X9.6X7.6 Cm	Single Gross Weight:	0.800 Kg
Package Type:	It Is Packed In A Crash Bag And Then Put Into A Cardboard Box.
High Light:	AIM-T300 Hospital Isolated Power System , AIM-T300 Insulation Monitoring Device , Class 1.0 Insulation Monitoring Device

Product Description

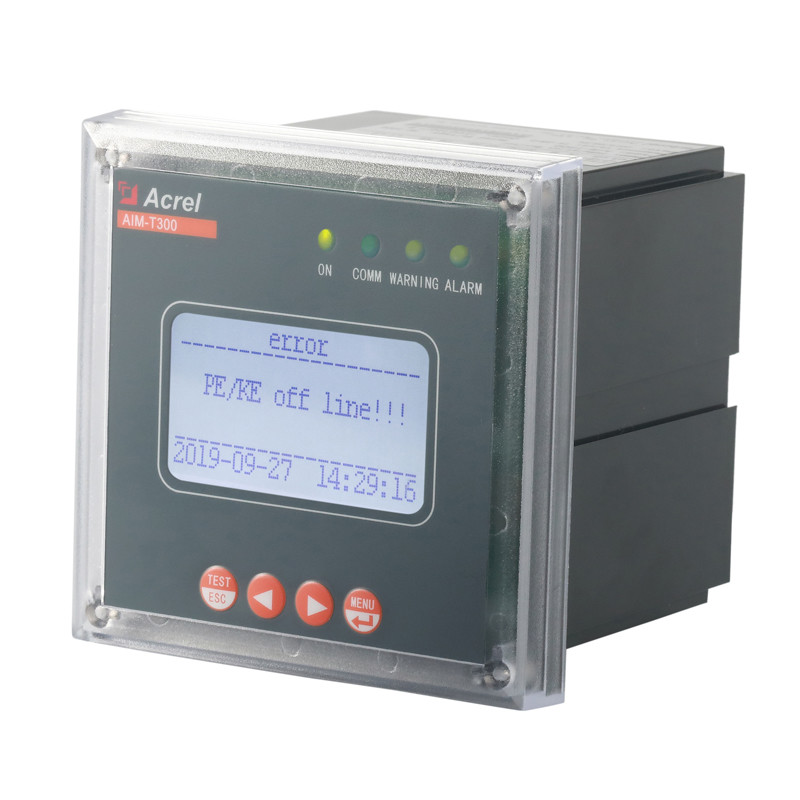

AIM-T300 Insulation Monitoring Device

● AC, DC main circuits

● AC/DC main circuits with directly connected DC components, such as rectifiers

● Systems with switch-mode power supplies

Specification

Type			AIM-T300	AIM-T500
Aux power supply	Voltage	AC85-265V
Aux power supply		Power Consumption	8W
IT system	Voltage	＜450V	＜800V
IT system		Frequency	40-60Hz
Insulation monitoring	Measuring range	1kΩ-5MΩ	1kΩ-10MΩ
		Alarm range	10kΩ-5MΩ	10kΩ-10MΩ
		Accuracy	±10%
Communication			RS485(Modbus-RTU)
Standard			IEC61326-2-4
Operating alarm			-20-60℃	-15-55℃

Characteristic

LCD Display

Appearance

Wiring

Typical connection

Company Profile

Jiangsu Anke Ruiwei Grid Research Institute Co., Ltd., the manufacturer base located in Jiangyin, Wuxi City, is a pioneer
enterprise integrates the informatization and industrialization of Jiangsu province. It has a multiple function product test
center(CNAS certified), which can carry out a variety of tests on environment, electromagnetic compatibility, safety and
reliability. The production relies on the advanced information management system and strictly follow the ISO9001 management standard, which provide a guarantee for industrialization and large-scale implementation of the products. The annual capacity of the electrical meter is 2 million sets, 1.5 million power transformers and 10,000 sets of energy-saving cabinets. Acrel Co., Ltd.[stock code: 300286.sz] is a high-tech enterprise integrates R&D, production, sales and service, since its establishment, it committed to provide users with energy efficiency management and power security system solutions. Acrel Electric has a complete production line from cloud platform software to sensors. At present, more than 8,000 sets of various solutions are running all over the country, help users to realize the visual management of energy consumption, provide users the energy data services, and escort users an efficient and safe energy consumption.
