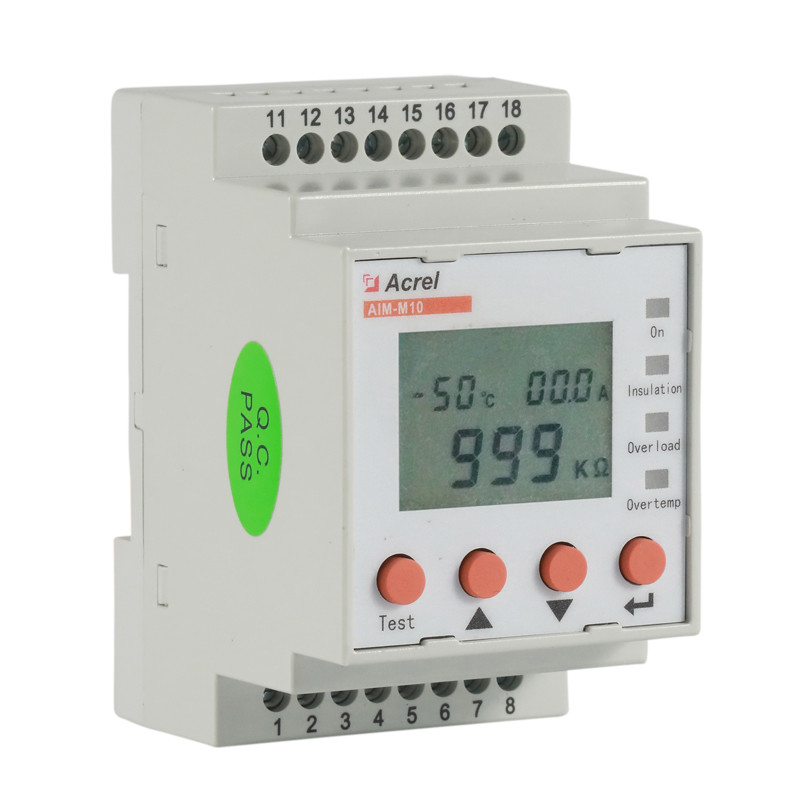

Acrel AIM-M10 Medical Intelligent Insulation Monitoring Instrument With Relay Alarm Output

Contact Now

Acrel AIM-M10 Medical Intelligent Insulation Monitoring Instrument With Relay Alarm Output

Minimum Order Quantity :	1pc	Packaging Details :	carton
Delivery Time :	5-8 work days	Payment Terms :	T/T
Supply Ability :	5000pc/day

Place of Origin:	China	Brand Name:	Acrel
Certification:	CE	Model Number:	AIM-M10

Detail Information
Voltage:	AC220V±10%	Frequency:	50/60Hz
Alarm Value:	10—995kΩ	Dimension:	85x54x63.6
Power Supply Output:	DC24V
Highlight:	medical intelligent insulation monitoring instrument , relay alarm output insulation monitoring instrument , Acrel AIM-M10 insulation monitoring instrument

Product Description

General

Hospital IPS monitor system insulation monitor AIM-M10 with CE approval

Medical intelligent insulation monitoring instrument adopts advanced microcontroller technology, which has high integration,
compact size, convenient installation and integrates intelligence, digitalization and networking in one. It is ideal selection for
insulation monitoring of isolation power system in Class 2 medical locations such as operating room and intensive care unit.

Features

* real-time monitoring and fault alarming of the ground insulation resistance,
* transformer load current and transformer winding temperature of the monitored IT system,
* be used with insulation fault locator, remotely starting fault-locating and displaying locating results when there are
insulation faults,
* real-time monitor the line disconnection fault, temperature sensor disconnection fault and the functional grounding line
disconnection fault of the monitored system, and give the alarm indication within 2S after the fault occurs,
* relay alarm output, LED alarm indication and other faults indication functions,
* used for centralized alarm and display instrument, test signal generator, insulation fault locator and upper computer management
software communications, and can monitor the operation status of IT system in real time.
* Events logging function, which can record alarm occurrence time and fault type and is convenient for operation personnel to
analyze the operation conditions of system and promptly eliminate the faults.

Technical parameters

Model		AIM-M10	AIM-M100	AIM-M200
Power supply	Voltage	AC220V±10%	AC220V±10%	DC24V±25%
	Frequency	50/60Hz	50/60Hz	-
	Max power consumption	<5W	<8W	<3W
Insulation monitoring	Insulation resistance measuring range	10-999kΩ
	Relative percentage accuracy	0—±10%
	Alarm value range	10—995kΩ	50—999kΩ	50—999kΩ
	Response time	<2s
	Measuring voltage	<12V
	Measuring current	<42uA	<50uA	<50uA

Current monitoring	Measuring range	2.1-50A
	Alamm value range	5-50A
	Measurement accuracy	≤±5%
Temperature monitoring	Thermal resistor	PT100
	Measuring range	-50—+200℃
	Alarm value range	0—+200℃
Alarm output	Output type	1 channel relay output	2 channels relay output(programmable)	2 channels relay output
	Contact rating	AC 250V/3A DC 30V/3A	AC 250V/3A DC 30V/3A	AC 250V/3A DC 30V/3A
Environment	Working temperature	-10—+55℃
	Storage temperature	-20—+70℃
	Relative humidity	5%-95%,non-condensing
	Altitude	≤2500m
Communication		RS485 interface,Modbus-RTU protocol	RS485 interface,Modbus-RTU protocol	CAN interface, custom protocol, RS485 interface, Modbus-RTU protocol

Dimension

Wiring

Typical connection
