Product Name: Insulation Monitoring Device Display: LED
Power Supply: DC24V Communication: RS485/CAN
Certificate: IEC60364-7-710:2002;IEC62020-1:2020; EMC
High Light:

Accurate Insulation Monitoring Device

,

Hospital Insulation Monitoring Device

,

Relay Output Insulation Monitoring Device

Product Description

General


    The AlM-M200 monitors the insulation resistance of medical IT system, At the same time, the load current and temperature of the IT system transformer are monitored. In combination with ASG100 AIL100series insulation fault locators and the appropriate measuring current transformers, the AlM-M200 is designed to support insulation fault location.

Acrel AIM-M200 Hospital Insulation Monitoring Device Accurate Insulation Resistance Monitoring Prompt Alarm Relay Output 0



Technical parameters



Model AIM-M10 AIM-M100 AIM-M200
Power supply Voltage AC220V±10% AC220V±10% DC24V±25%
  Frequency 50/60Hz 50/60Hz -
  Max power consumption <5W <8W <3W
Insulation monitoring Insulation resistance measuring range 10-999kΩ
  Relative percentage accuracy 0—±10%
  Alarm value range 10—995kΩ 50—999kΩ 50—999kΩ
  Response time <2s
  Measuring voltage <12V
  Measuring current <42uA <50uA <50uA
Current monitoring Measuring range 2.1-50A
  Alamm value range 5-50A
  Measurement accuracy ≤±5%
Temperature monitoring Thermal resistor PT100
  Measuring range -50—+200℃
  Alarm value range 0—+200℃
Alarm output Output type 1 channel relay output 2 channels relay output(programmable) 2 channels relay output
  Contact rating

AC 250V/3A

DC 30V/3A

AC 250V/3A

DC 30V/3A

AC 250V/3A DC 30V/3A
Environment Working temperature -10—+55℃
  Storage temperature -20—+70℃
  Relative humidity 5%-95%,non-condensing
  Altitude ≤2500m
Communication RS485 interface,Modbus-RTU protocol RS485 interface,Modbus-RTU protocol

CAN interface, custom protocol,

RS485 interface, Modbus-RTU protoco

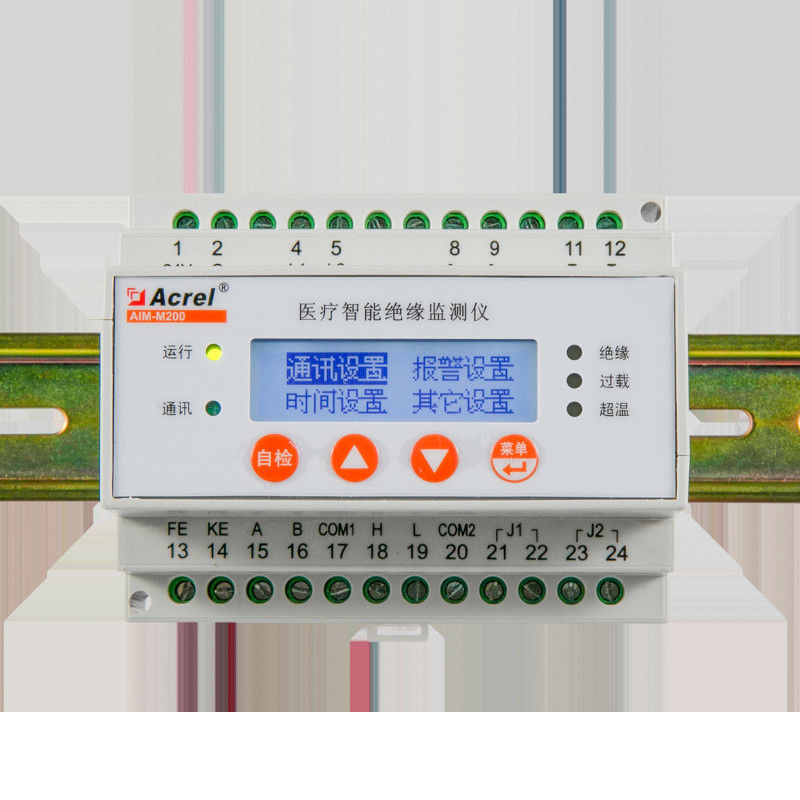

Display sample of AIM-M200 Hospital Insulation Monitoring DeviceWiring diagram of AIM-M200 Hospital Insulation Monitoring DeviceInsulation measurement LCD displayAMI-M200 monitor load and temperature of insulation transformer LCD display and relay output  terminal of AIM-M200 Hospital Insulation Monitoring DeviceKeypads HMI illustrationPractical application of AIM-M200 Hospital Insulation Monitoring Device in hospital IT power supply system
