Product Description

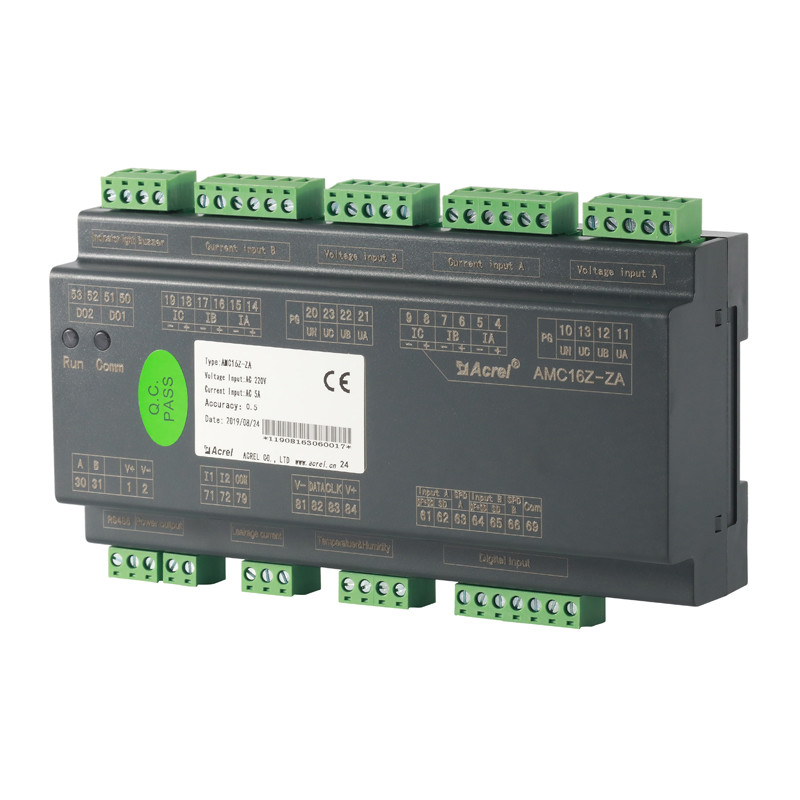

AMC16Z-ZA Dual-circuit Data Center Energy Meter
AMC16Z series AC precision power distribution monitoring device is specially designed for data center server power management.The device designed exquisite, can provide A + B 2 incoming and 96 outgoing’s electrical parameters, the input and output switch and the state of lightning protection device with real-time monitoring. All alarm threshold of measurement channels can be set in separate. Over-outgoing triggers system acoustooptic warning immediately. Highly integrated monitoring loop is realized in the volume of traditional instruments.
AMB16Z-ZA can monitor the full power parameters of A+B double-way three-phase AC incoming circuit, 6-way switch state monitoring, 2-way alarm output, 2-way leakage monitoring, 1-way temperature and humidity detection, 1-way RS485 communication, and phase-sequence detection.
Terminals
Technical Parameters
| Instrument model | AMC16Z-ZA | |
| Measured parameters | Voltage, current, frequency, active power, reactive power, power factor,active power, reactive power | |
| Zero ground voltage, neutral line current, total harmonic content (THD), 2-63 harmonics, current and voltage unbalance degree, current K coefficient (KF), voltage crest coefficient (CF),telephone waveform factor (THFF), peak voltage, voltage and current sequence quantity,environmental temperature and humidity. | ||
| Busbar voltage | Rated | 220VAC |
| Measurement | ±20% | |
| Overload | Instant voltage 2times/second | |
| Current incoming circuit | Rated | Twice 5A |
| Range | 0～6A | |
| Overload | Duration 1.2 times, instantaneous 10 times/second | |
| Temp &humidity | Temp range | -40℃～+99℃ |
| humidity range | 20%～90% | |
| Input frequency | 45～60Hz | |
|
Measurement precision |
Inlet wire | Voltage/current level 0.2, active power/electric energy level 0.5, reactive power/electric energy level 1 |
| Temp | ±1℃ | |
| Humidity | ±5% | |
| Auxiliary power supply | Take electric signal(≤15W) | |
| Environment | Temp | Working:-15℃～55℃ Storage:-25℃～70℃ |
| Humidity | Relative humidity ≤93% | |
| Altitude | ≤2500m | |
| Switch output | 2-way 3A 250VAC/3A 30VDC | |
| Switch input | 6-way dry contact | |
| Communication | RS485/Modbus-RTU | |
| Installation method | DIN35mm Guide rail or bottom plate mounting | |
| IP grade | IP20 | |
| Class of pollution | 2 | |
| Safety | Insulation | All terminals and the insulation resistance between the conductive pieces not less than 100MΩ |
| Withstand voltage |
A-way voltage and current signal, B-way voltage and current signal, switch output and other ports should meet AC 2KV 1min in pairs, the switch input and other ports should meet ac 0.5KV 1mim, leakage current should be less than 2mA, no breakdown or flashover |
|
| Electromagnetic compatibility | Anti static interference | Level 4 |
| Electrical fast transient pulse group | Level 3 | |
| Anti-surge interference | Level 4 | |
| Resistance to radiation of Radio frequency electromagnetic field | Level 3 | |
Wiring diagram
