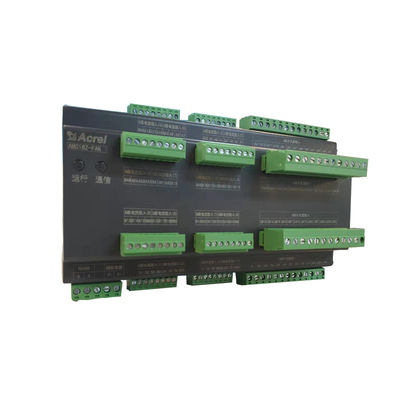

Acrel DIN Rail Type Multi Circuit Energy Meter 65Hz Data Center Monitor

Minimum Order Quantity : 1 Pieces Packaging Details : cardboard box
Delivery Time : 2-3 days Payment Terms : T/T
Supply Ability : 5000pcs/day
Place of Origin: China Brand Name: Acrel
Certification: CE Model Number: AMC16Z-FAK48

Detail Information

Measurement: U, I, P, Q, S, PF, KWh, Kvarh Reference Frequency: 45~65Hz
Accuracy: KWh Class 0.5 Communication: RS485 Modus Rtu
Warranty: 2years Installtion Type: DIN Rail Mounting Energy Meter
Rated Voltage: 3*220V/380V
High Light:

DIN Rail Multi Circuit Energy Meter


65Hz Monitor Multi Circuit Energy Meter


DIN Rail Mounting Energy Meter

Product Description


With the rapid development of data center, the energy consumption problems about the data center have become increasingly serious, and energy management and the design of power supply and distribution have become hot problems; efficient and reliable power distribution system scheme for data center is an effective method to improve the power utilization efficiency of the data center and reduce the energy consumption of equipment. In order to achieve the energy conservation of data center, firstly it is necessary to accurately monitor each electricity load, but there are many loading circuits in the data center, and the traditional measuring instruments are incapable of satisfying the requirements for cost, volume, installation, construction and the like; hence, it is necessary to apply multi-circuit monitoring device applicable to the centralized monitoring requirements of data center.
AMC16 series multi-circuit monitoring device of Acrel Company is a measuring device designed
specifically for the power supply management of server in the data center. Such device is small and exquisite in design, capable of centralized monitoring on various electric parameters and on-off states of dozens of circuits, including incoming line circuit and outgoing line circuit, and it achieves the highly integration of monitoring circuits in volume.


Technical parameter

Technical parameters AMC16Z-FAK24 AMC16Z-FAK48
Measurement parameters Voltage, current, frequency, active power, reactive power, power factor, active
power, reactive power, switching state
2-31 times harmonics
Bus Voltage Rated 220VAC
Measurement ±20%
Overload Instantaneous voltage 2 times/second
Current Rated 50mA
outgoing line loop Range 0.125~60mA
Overload Duration 1.2 times, instantaneous 10 times/second
Input frequency 45~60Hz
Measurement accuracy Outgoing line Voltage/current/active power/active energy level 0.5, reactive power/reactive energy level 1
Auxiliary power supply Power supply by AMC16Z-ZA
Temperature Working:-15℃~55℃ Storage:-25℃~70℃
Humidity Relative humidity
Communication RS485/Modbus-RTU
Installation method
DIN35mm Guide rail or bottom plate mounting
IP grade IP20
Class of pollution 2


Acrel DIN Rail Type Multi Circuit Energy Meter 65Hz Data Center Monitor 0



Acrel DIN Rail Type Multi Circuit Energy Meter 65Hz Data Center Monitor 1
