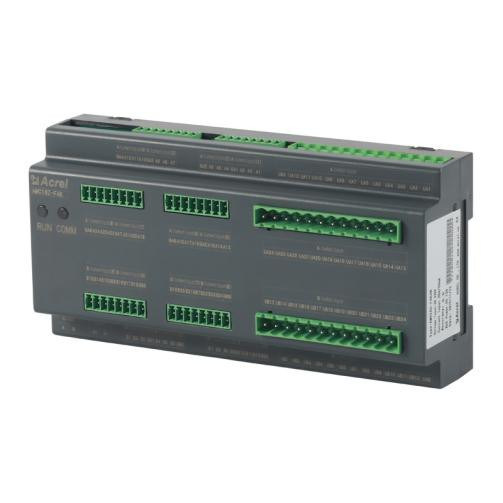

Acrel Class 0.5S Data Center Power Meter Monitor Device AMC16MA
Contact Person : Dina Huang
Phone Number : 18761502682
WhatsApp : +8618761502682
| Minimum Order Quantity : | 1 Pieces | Packaging Details : | cardboard box |
|---|---|---|---|
| Delivery Time : | 2-3 days | Payment Terms : | T/T |
| Supply Ability : | 5000pcs/day |
| Place of Origin: | China | Brand Name: | Acrel |
|---|---|---|---|
| Certification: | CE | Model Number: | AMC16Z-ZA |
|
Detail Information |
|||
| Measurement: | U, I, P, Q, S, PF, KWh, Kvarh | Frequency: | 45~65Hz |
|---|---|---|---|
| Accuracy: | KWh Class 0.5 | Installation: | DIN 35 Mm |
| Communication: | RS485 Modus Rtu | ||
| High Light: | kvarh Multi Channel Energy Meter,65Hz Multi Channel Energy Meter,reactive power Multi Channel Energy Meter |
||
Product Description
AMC16Z series multi channel din rail ac power meter is independently designed to meet the needs of the increasingly high precision power distribution management requirements of the data center. It is suitable for carious all-round inrelligent monitoring of terminal distribution equipment.
Technical parameter
| Technical parameter | AMC16Z-ZA | |
| Measured parameter | Voltage, current, frequency, active power, reactive power, power factor, active power, reactive power |
|
|
Zero ground voltage, neutral line current, total harmonic content (THD), ), peak voltage, voltage and current sequence quantity, |
||
| Busbar voltage | Rated | 220VAC |
| Measurement | ±20% | |
| Overload |
Instant voltage 2times/second
|
|
| Current incoming circuit | Rated | Twice 5A |
| Range | 0～6A | |
| Overload | Duration 1.2 times, instantaneous 10 times/second | |
| Temp &humidity | Temp range | -40℃～+99℃ |
| humidity range | 20%～90% | |
|
Input frequency
|
45～60Hz | |
| Measurement precision | Inlet wire | Voltage/current level 0.2, active power/electric energy level 0.5, reactive power/electric energy level 1 |
| Temp | ±1℃ | |
| Humidity | ±5% | |
| Auxiliary power supply | Take electric signal(≤15W) | |
| Environment | Temp | Working:-15℃～55℃ Storage:-25℃～70℃ |
| Humidity | Relative humidity ≤93% | |
| Altitude | ≤2500m | |
| Switch output | 2-way 3A 250VAC/3A 30VDC | |
| Switch input | 6-way dry contact | |
| Communication | RS485/Modbus-RTU | |
| Installation method | DIN35mm Guide rail or bottom plate mounting | |
