Acrel APM5xx series network power meter fault recording support multiple communication methods comprehensive monitoring
Contact Person : Dina Huang
Phone Number : 18761502682
WhatsApp : +8618761502682
| Minimum Order Quantity : | 1 Pieces | Delivery Time : | 2-3 days |
|---|---|---|---|
| Payment Terms : | T/T |
| Place of Origin: | China | Brand Name: | Acrel |
|---|---|---|---|
| Certification: | CE | Model Number: | AMC72L-E4/KC |
|
Detail Information |
|||
| Measurement: | 3-phase AC KWh, KVarh, I, U, KW, KVar, Hz, Cosφ | Accuracy: | 1% (kWh); 0.5% (Active Power) |
|---|---|---|---|
| Rated Voltage: | 400V AC L-L (direct Connect); 100V AC L-L (via PTs) | Rated Current: | 5A AC Or 1A AC (via CTs) |
| Power Supply: | 85~265V AC/DC; 24V Or 48V DC | Communication: | RS485 (MODBUS-RTU) |
| High Light: | kVar AC Energy Meter,AMC series AC Energy Meter,Direct Connect 265V AC Energy Meter |
||
Product Description

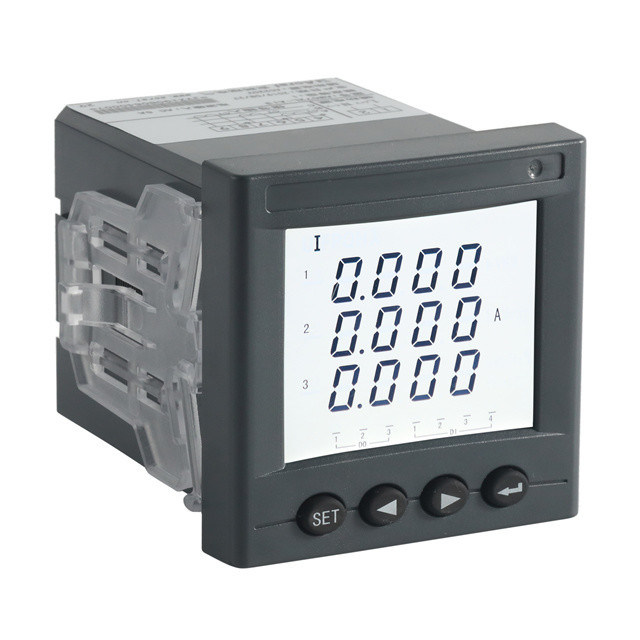

AMC series programmable intelligent meters, adopting AC sampling technology, can directly or indirectly measure electric voltage and current of single-phase or three-phase grid. It can be used for local display, and connecting industrial control devices to form measuring control systems.
Panel overview
| Function | Description&Value | |
| Measurement | Three-phase AC kWh, kVarh, Active Power, Reactive Power, Forward&Reverse Power, Current, Voltage, Zero Sequence Voltage, Zero sequence Current, Voltage-phase Angle, Voltage&Current Unbalance, Power Factor,Harmonic, Frequency | |
| Display | LCD display | |
Communication (Optional) |
RS485,Modbus-RTU protocol;(1 start bit,8 data bit,1 stop bit,no parity) Baud Rate 1200~38400 bps etc. |
|
Alarm Output (Optional) |
1 channel passive relay,contact capacity 3A/30VDC,3A/250VAC, Used for high,low,unbalance alarm etc. |
|
DI/DO Switching (Optional) |
DI (Digital input): 2-channel or 4-channel dry contact digital input with built in power supply DO (Digital output): 2-channel digital output with NO relay contact. Capacity: 3A/30V DC,3A/250V AC |
|
| Input | Rated Voltage |
AC Voltage Input: 400V AC L-L (via direct connetion); 100V AC L-L (via -/100V AC PTs) |
| Rated Current |
AC Current Input: 5A AC or 1A AC (via -/5A AC or -/1A AC CTs) |
|
| Overload | Current&Voltage input overload:1.2 times rated value(continuous); 10 times rated value /1 second | |
| Measuring Accuracy | Voltage | 0.2% |
| Current |
0.2% |
|
| Active Power |
0.5% |
|
| kWh | 0.5% | |
| kVarh | 1.0% | |
| Frequency | ±0.05Hz | |
| Power Supply | Voltage Range | |
| Power Consumption | ||
| Insulation resistance |
≥ 100MΩ |
|
| Power frequency withstand voltage |
Between Power supply//Switching Output// Current Input//voltage Input and Transmitting// Communication //Pulse Output//switching input AC 2 kV 1min; Between Power supply,switching output,Current Input,voltage Input AC 2 kV 1min; Between Transmitting,Communication,Pulse Output,switching input AC 1kV 1 min; |
|
