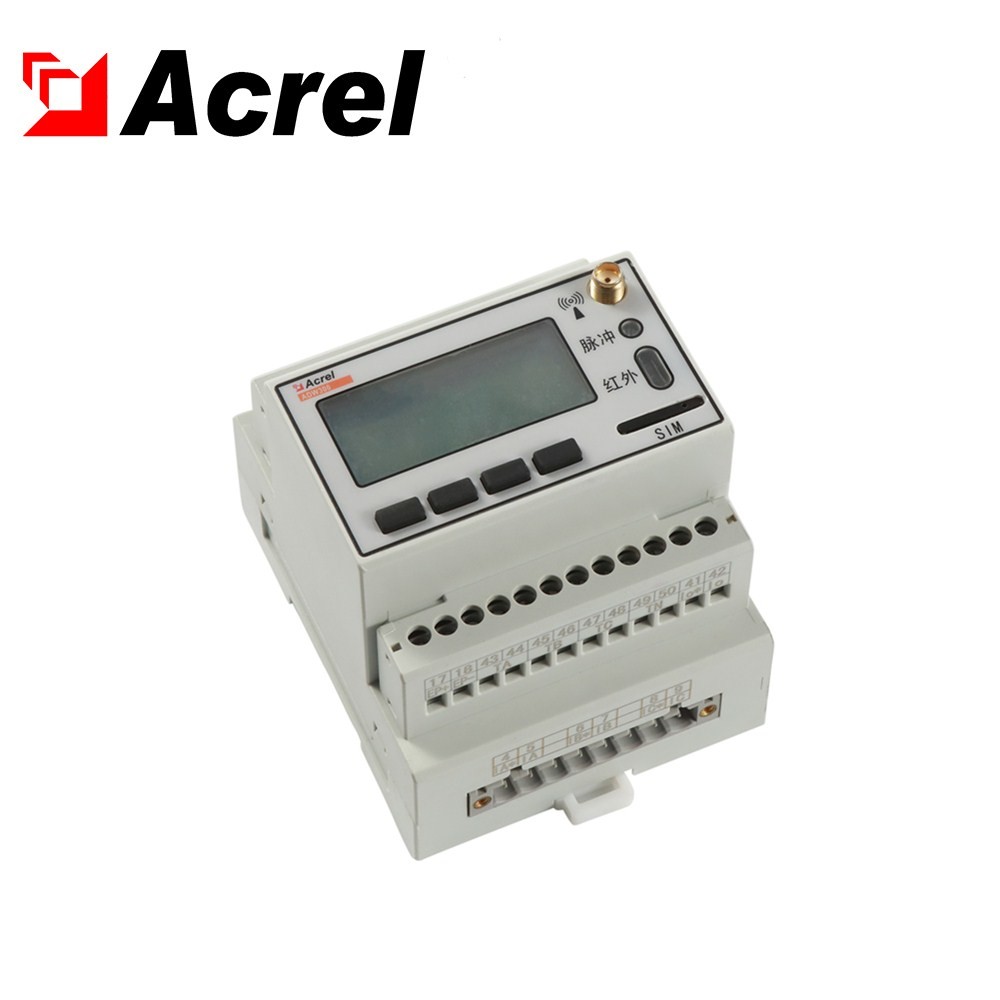

ADW300 wirless three phase Energy Meter fin rail mounted wifi energy meter with IEC Certification

Contact Now

ADW300 wirless three phase Energy Meter fin rail mounted wifi energy meter with IEC Certification

Minimum Order Quantity :	1 Pieces	Packaging Details :	carton
Delivery Time :	2-3 days	Payment Terms :	T/T
Supply Ability :	5000PCS Per Week

Place of Origin:	Cnina	Brand Name:	Acrel
Certification:	CE, IEC, EAC	Model Number:	ADW300

Detail Information
Model:	ADW300	Current:	3x1(6)A AC (via CTs)
Measurement:	3 Phase Voltage,current,power,power Factor	Accuracy:	Class 1
Consumption:	＜10VA Or 2W	Temperature Accuracy:	±2℃
Highlight:	ADW300 Energy Meter , IEC Certification Energy Meter

Product Description

General

adw300 energy meters allow the acquisition of energy meter readings and transmit data over several kilometres for aggregation.

ADW300 wirless three phase Energy Meter fin rail mounted wifi energy meter with IEC Certification 0

Technical parameter

Parameter	Description&Value
Voltage Input	Rated Voltage	3x380~456Vac L-L or 3x660~792Vac L-L (via direct connection) 3x100~120Vac L-L (via PTs)
	Reference Frequency	45~65Hz
	Power Consumption	＜0.5VA (each Phase)
Current Input	Rated Current	3x1(6)A AC (via CTs)
	Starting Current	1% Ib (Class 0.5); 4% Ib(Class 1)
	Power Consumption	＜1VA (each Phase)
Phase Wiring	3P4W	3-phase 4-wire
Phase Wiring	3P3W	3-phase 3-wire
Auxiliar Power Supply	Voltage Range	85~265Vac
Auxiliar Power Supply	Power Consumption	＜2W
Measurement Performance	Standard	IEC 62053-22:2003; IEC 62053-21:2003
Measurement Performance	kWh Accuracy	Class 0.5S
Pulse	Width of Pulse	80±20ms
Pulse	Pulse Constant	6400imp/kWh; 400imp/kWh

Features

Diverse Electricity Parameters Measurement

● kWh (positive and negative)

● kVarh (positive and negative)

● U, I, P, Q, S, PF, Hz

● Harmonic (THDv, 2-31st)

● 3-phase current&voltage imbalance

DO/DI Switch Function

● 2 DO Digital Output

● 4 DI Digital Input

Residual Current Measurement Function

● 1-channel Residual Current

● Paired with Residual Current CTs

Temperature Monitoring Function

● Thermistor: NTC

● Monitoring: 4-channel Cable Temperature (for A,B,C,N)

● Range: -40℃~+99℃

● Accuracy: ±2℃

Display

ADW300 wirless three phase Energy Meter fin rail mounted wifi energy meter with IEC Certification 5

Wiring

ADW300 wirless three phase Energy Meter fin rail mounted wifi energy meter with IEC Certification 6

3-phase 4-wire connection 3-phase 3-wire connection

Dimension

ADW300 wirless three phase Energy Meter fin rail mounted wifi energy meter with IEC Certification 7

Factory

ADW300 wirless three phase Energy Meter fin rail mounted wifi energy meter with IEC Certification 8

ADW300 wirless three phase Energy Meter fin rail mounted wifi energy meter with IEC Certification 9
