AC Multi Function Panel single phase energy meter IP20
AC Multi Function Panel single phase energy meter IP20
AC Multi Function Panel single phase energy meter IP20 AC Multi Function Panel single phase energy meter IP20 AC Multi Function Panel single phase energy meter IP20 AC Multi Function Panel single phase energy meter IP20
Contact Now

AC Multi Function Panel single phase energy meter IP20

Minimum Order Quantity : 1 Delivery Time : 5-8 work days
Payment Terms : T/T
Place of Origin: CHINA Brand Name: Acrel
Certification: CE Model Number: AMC96L-E4/KC

Detail Information
Power Consumption: <0.5VA Warranty: 2 Years
Phase: Single Phase Energy Meter Levels Of Protection: IP20
Current Range: 0-5000A Output Mode: Optocoupler Pulse With Open Collector
Width Of Pulse: 80±20ms Weight: 0.5kg
Type: Panel AC Energy Meter Package Type: Carton Box
Protection Level: Display Panel IP54; (Optionally IP65) Installation: Panel
Working Temperature: -25℃-+60℃ Consumption: ＜10VA Or 2W
Frequency Range: 50/60Hz
Highlight:

single phase energy meter

,

single phase AC Multi Function Panel

,

IP20 AC Multi Function Panel

Product Description

Three-phase AC Multi-function Panel Energy Meter AMC96L-E4/KC





● Measurement: 3-phase AC kWh, kVarh, I, U, kW, kVar, Hz, cosφ and etc
● Accuracy: 1% (kWh); 0.5% (Active Power)
● Rated Voltage: 400V or 660V AC L-L (direct connect); 100V AC L-L (via PTs)
● Rated Current: 5A AC or 1A AC (via CTs)
● Power Supply: 85~265V AC/DC; 24V or 48V DC
● Communication: RS485 (MODBUS-RTU)
● SOE Funciton: Event&Demand&Extremum Record
● Harmonic Measurement: 2~31st and total Harmonic
● Analog Output: 4~20mA DC or 1~5V DC
● DI/DO Function: 2/4-channel DI&2-channel DO
● Standard&Certificate: CE Certificates

Products Overview

AC Multi Function Panel single phase energy meter IP20 0

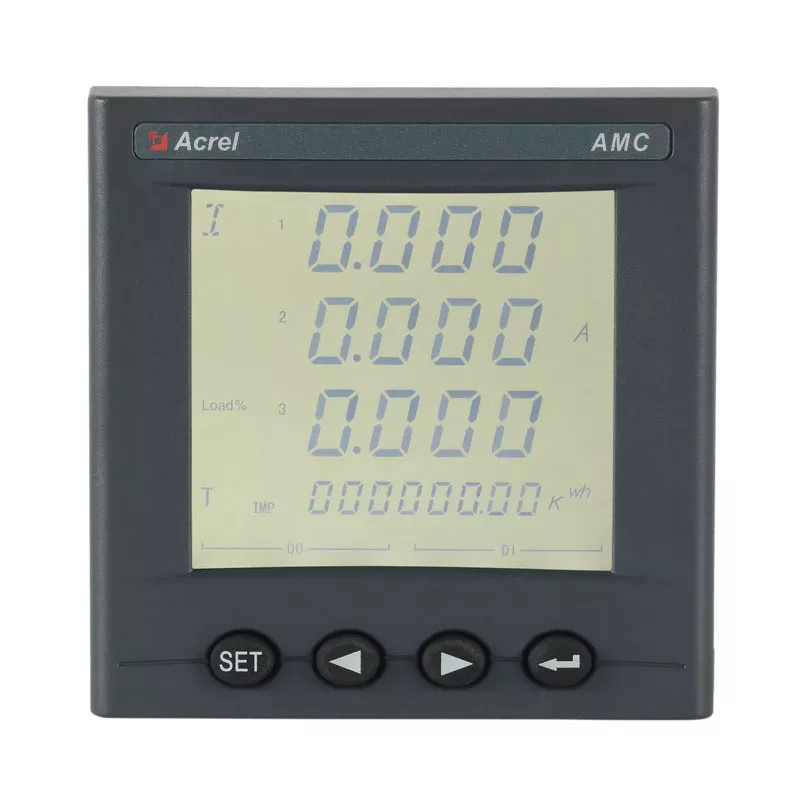

Panel Overview

AC Multi Function Panel single phase energy meter IP20 1

Main Parameters

AC Multi Function Panel single phase energy meter IP20 2


Dimension&Packaging


Outline Dimension

AC Multi Function Panel single phase energy meter IP20 3

Cut-out Dimension

AC Multi Function Panel single phase energy meter IP20 4


Wiring Illustration



AC Multi Function Panel single phase energy meter IP20 5



AC Voltage Signal (400V or 660V AC L-L) Input via direct Connection & AC Current Signal (5A or 1A AC) input via -/5A AC or -/1A AC CTs (3-phase 4-wire)



AC Multi Function Panel single phase energy meter IP20 6

AC Voltage Signal (400V or 660V AC L-L) Input via direct Connection & AC Current Signal (5A or 1A AC) input via -/5A AC or -/1A AC CTs (3-phase 3-wire)



AC Multi Function Panel single phase energy meter IP20 7
