Acrel Class 0.5S Data Center Power Meter Monitor Device AMC16MA
Contact Person : Dina Huang
Phone Number : 18761502682
WhatsApp : +8618761502682
| Minimum Order Quantity : | 1 Pieces | Delivery Time : | 2-3 days |
|---|---|---|---|
| Payment Terms : | T/T |
| Place of Origin: | China | Brand Name: | Acrel |
|---|---|---|---|
| Certification: | CE | Model Number: | ADW210 |
|
Detail Information |
|||
| Measurement: | Up To 4-channel 3-phase KWh, KVarh, Current, Power, 2~31st Harmonic And Etc | Voltage Rating: | 3x220V/380V AC (3P4W) |
|---|---|---|---|
| Current Rating: | 5A, 100A, 400A Or 600A AC (with External CTs) | Frequency: | 45~65Hz |
| Communication: | RS485 (MODBUS-RTU) | Display: | LCD |
| High Light: | IoT Wireless Multi Circuit Energy Meter,Multi Circuit Energy Meter RS485,400A LCD Multi Circuit Energy Meter |
||
Product Description

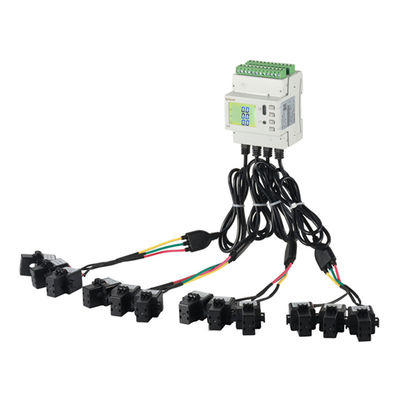

ADW210 Series rail-type multi-loop AC Three Phase Energy Monitor Power Meters are mainly used for the full electrical parameter measurement of multiple three-phase loops and can be connected to the current input of up to four three-phase loops at the same time.
Features
|
Multi-circuits Monitoring ● Monitor up to 4×3-phase circuits in total ● Paired CTs with specs of 5A/1.25mA; 100A/20mA; 400A/100mA or 600A/100mA ● External CTs Connectwith ADW210 Main Body thrrough RJ12 Interface |
|
|
Expanded Communication Module --- AWT100 ● 4G (Global general module) ● WiFi ● LoRaWAN ● LoRa ● NB-IoT |
|
Installation
