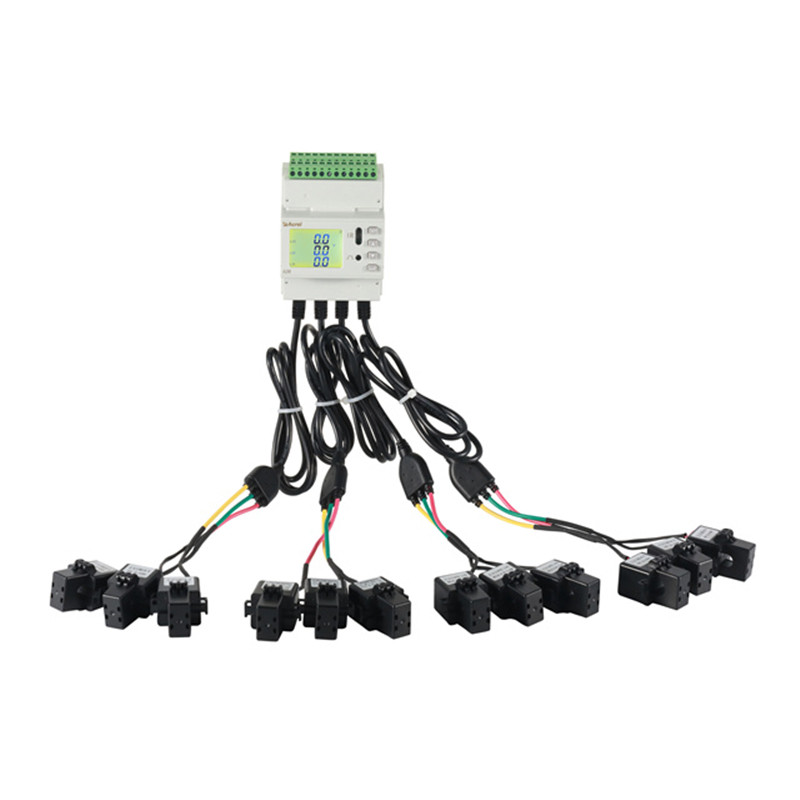

ADW210-D16-4S Multi Circuit Energy Meter For School Management

Minimum Order Quantity : 1 Piece Price : 290/ Piece
Packaging Details : Carton Delivery Time : 2-3 days
Supply Ability : 6000pcs/day
Place of Origin: China Brand Name: Acrel
Certification: CE Model Number: ADW210-D16-4S

Detail Information

Usage: Electric Measure Phase: Three Phase
Auxiliary Power: AC/DC 85~265V; Consumption≤10VA; Frequency: 45~65Hz
Communication: RS485、Modbus-RTU; Baud Rate 1200~38400;
High Light:

school management multi circuit energy meter

,

multi circuit energy meter acrel

,

school management acrel meter

Product Description

Acrel ADW210-D16-4S multi loop wireless power meter 3 phse lora wireless energy meter for school management

ADW210 Series rail-type multi-loop AC Three Phase Energy Monitor Power Meters are mainly used for the full electrical parameter measurement of multiple three-phase loops and can be connected to the current input of up to four three-phase loops at the same time.

ADW210-D16-4S Multi Circuit Energy Meter For School Management 0

ADW210 IoT Wireless Multi-function Smart Energy Meter

● Measurement: Up to 4-channel 3-phase kWh, kVarh, Current, Power, 2~31st Harmonic and etc
● Voltage Rating: 3x220V/380V AC (3P4W)
● Current Rating: 5A, 100A, 400A or 600A AC (with external CTs)
● Frequency: 45~65Hz
● Communication: RS485 (MODBUS-RTU)
● Extra Function: Wireless Communication (4G, WiFi, LoRa and etc); Cable Temperature Measurement; DO/DI Function
● Display: LCD
● Dimension: 87.8*72*97.7mm(L*W*H) --- Main Body
● Wiring: 3-phase 4-wire Connection
● Installation: 35mm DIN Rail
● Standard&Certificate: CE; LVD

ADW210-D16-4S Multi Circuit Energy Meter For School Management 1

Description

Specification 3 phase 3 wires, 3 phase 4 wires
Voltage Rated Voltage 3*220/380V
  Consumption <0.5VA
Current Input Current 5A,100A
  Consumption <0.5VA
Accuracy Current Class 0.5
  Active power Class 1
  Reactive power Class 2
Communication RS485(Modbus-RTU)
Relative Humidit ≤95%(No condensation)
Outline Operating -25~55℃
Storing -40~80℃
Humidity ≤95%(No condensation)
Altitude <2000m



Features

ADW210-D16-4S Multi Circuit Energy Meter For School Management 2

Company profile

ADW210-D16-4S Multi Circuit Energy Meter For School Management 3

ACREL CO., Ltd. was founded in 2003 and successfully listed on GEM in 2012. ACREL is a high-tech enterprise that integrats R&D, production, sales and service. since its establishment, it committed to provide users with energy efficiency management and power security system solutions. Acrel Electric has a complete production line from cloud platform software to sensors.

ADW210-D16-4S Multi Circuit Energy Meter For School Management 4

Since the listing in 2012, our company has maintained steady growth. The company will adhere to the concept of "innovation, efficiency, unity, integrity", adhere to steady operation and continuous innovation, and provide more high-quality products, services and solutions for power system users and micro-grid.



ADW210-D16-4S Multi Circuit Energy Meter For School Management 5ADW210-D16-4S Multi Circuit Energy Meter For School Management 6



At Vietnam Power Equipment and Technology Exhibition, many customers from all over the world, our Acrel team has carried out detailed analysis and explanation of a series of difficult problems raised by customers. Under the enthusiasm of our technical team and sales team, the customer gave us a high evaluation of our products and services.

Acrel Co.,LTD [Stock Code:300286.SZ ] attended HANNOVER MESSE, is one of the few leading companies who provides various systematic of power monitoring, power control, energy management and electrical safety for smart grid users. Since 2003, we have been focused on the research, production and sales of intelligent electric meters and current sensors.

ADW210-D16-4S Multi Circuit Energy Meter For School Management 7

If you have any special requirements, for example another current ratio or special size ,please feel free to Contact Us.



FAQ

Q: Are you trading company or manufacturer ?

A: We are factory. Warmly welcome you to visit and investigate our factory.

Q: How long is your delivery time?

A: Generally it is 3-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for lower price. If you place the order, all or part of the sample charge will be deducted from the goods. Please

contact us.

Q: What is your terms of payment ?

A: Usually, 100%TT in advance. If you have projects for another payment terms, please feel free to contact us.

ADW210-D16-4S Multi Circuit Energy Meter For School Management 8
