Acrel RS485 AC Panel Meter Single Phase Digital 48x48

Minimum Order Quantity : 1 piece Price : $25/ piece
Packaging Details : carton box Delivery Time : 2-3 work days
Payment Terms : T/T
Place of Origin: Jiangsu, China Brand Name: Acrel
Certification: CE Model Number: AMC48L-AI

Detail Information

Phase: Single Phase Energy Meter Dimensions: 48*48
Installation: Panel Certificate: CE/IEC
Display: LCD Display Communication: RS485(Modbus-RTU)
Frequency: 45-65Hz Package Type: Carton Box
Key Word: Acrel AMC48-AI AC Single Phase Digital Digital Multifunction Panel Meter
Highlight:

Single Phase Digital AC Panel Meter

,

RS485 AC Panel Meter

,

48x48 AC Energy Meter

Product Description

Acrel AMC48-AI AC single phase digital Digital Multifunction panel meter

AMC Series programmable intelligent current, voltage meter, adopting AC sampling technology, can directly measure current and voltage of grid. It can be used for local display, and connecting industrial control device to form measuring control system . Meters have RS-485 communication interface, adopt compatible Modbus-RTU protocol; can change electric parameter signal into standard analog output; or with l channel relay alarm output; or with 4 channel(2 channel) switching input/ 2 channel switching output Based on different request, by pressing related keys on instrument panel, parameter setting and control of transformation ratio, alarm, communication etc. can be done.

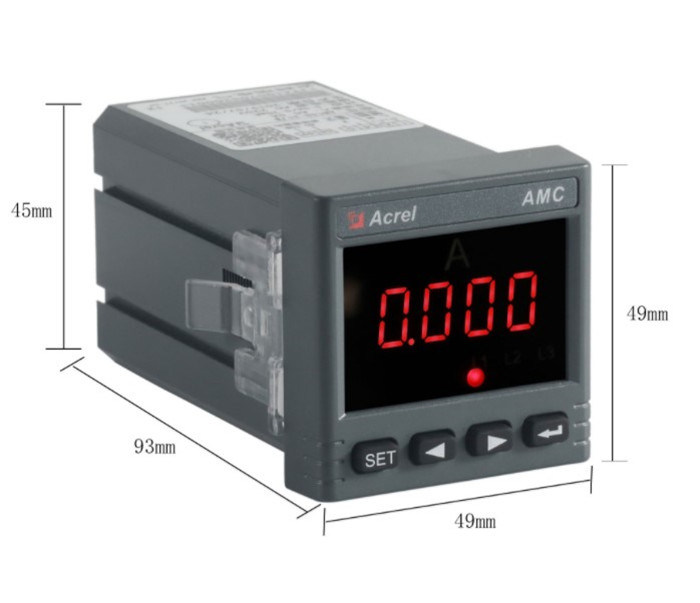

Acrel RS485 AC Panel Meter Single Phase Digital 48x48 0



Acrel AMC48-AI AC single phase digital Digital Multifunction panel meter

Technical Parameter Value
Input Rated value Voltage: AC100V, 220V or 380V, current: AC1A or 5A
Overload Voltage: 1.2 times rated value(continuous)
2 times rated value(1 second)
Current: 1.2 times rated value(continuous)
10 times rated value (1 second)
Frequency 45Hz~65Hz
Power consumption <0.5VA
Accuracy Class 0.5
Function Display LED or LCD
Communication RS485(Modbus-RTU)
Alarm 1 channel passive relay,contact capacity 3A/30VDC, 3A/250VAC
Analog output DC4~20mA( load < 500Ω)
Switching Voltage range AC/DC 85~265V
Power consumption

2 channels switching output, NO relay contact,

capacity 3A/30VDC, 3A/250VAC

Auxiliary power supply Voltage range AC/DC 85~265V
Power consumption <5VA
Insulation resistance ≥100MΩ
Environment Temperature Operating:-10°C~+55°C Storage: -25°C ~+70°C
Humidity ≤93%(no condensation)
Altitude ≤2500m



Auxiliary power supply

AC 220V

Consumption

Current: Power consumption< 0.5VA;
Auxiliary power supply: power consumption≤5VA

Installation

Panel mounted

Acrel RS485 AC Panel Meter Single Phase Digital 48x48 1
