High Accuracy Class 0.5S AC Energy Meter APM810 multi function

Product Description

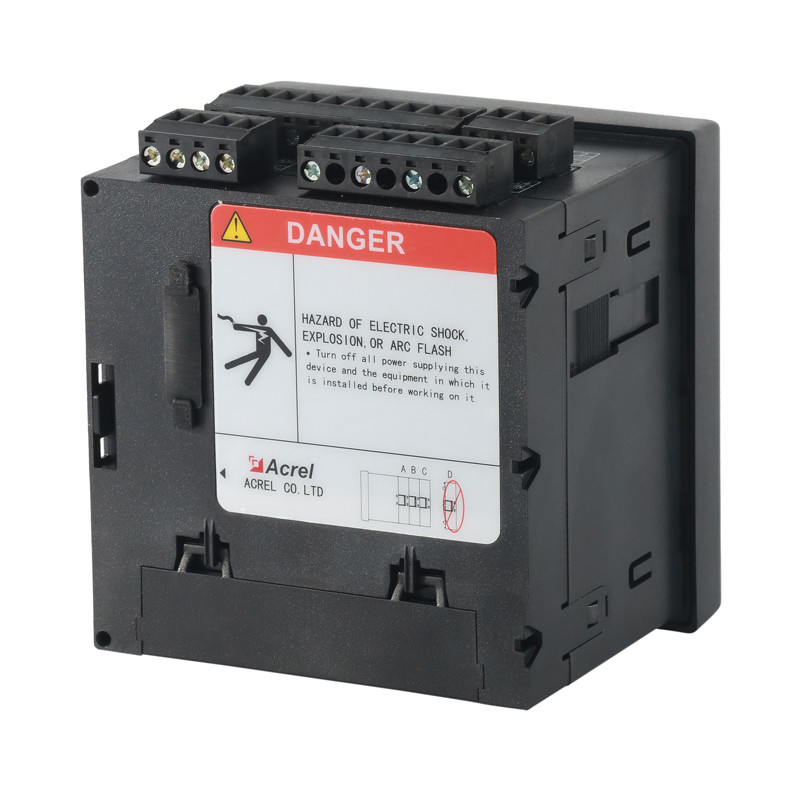

APM800 Multifunction Meter

● True RMS Measurements

● Unbalance & Phase Angles

● Demands and Multi-Tariff energy

● Max/Min Log with Timestamp

● Alarms and SOE Logs

● External Option module

Characteristic
Communication	Display	Rated U and I
Standard: RS485(Modbus-RTU) Optional: Profibus(Profibus-DP) Ethernet(Modbus-TCP,HTTP,DHCP)	LCD display U, I, P, Q, PF, kWh and other energy consumption, power measurement, harmonic content	Voltage:AC 100V,110V,400V,690VCurrent:AC 1A, 5A, support 2 mm2 line access

Function

Accuracy

Voltage,current and power:class 0.5S
Active power:class 0.5S
Reactive power: class 2

Frequency

Range:45-65Hz

Auxiliary power supply

AC/DC 85V～265V or AC/DC 115～415V

Pulse output

Output mode: Optocoupler pulse with open collector;
Pulse constant:4000(5A),8000(1A) imp/kWh；

Consumption

Voltage:Power consumption:<0.5VA;

Current:Power consumption:< 0.5VA;

Auxiliary power supply:power consumption≤15VA

Installation
Panel mounted

Dimension(L*W*H)

Panel size(L×W):96*96mm

Cutout(L×W):92*92mm

Relay
3A/AC250V 3A/DC30V

Starting current
0.1%

LCD Display

Wiring

Typical connection
