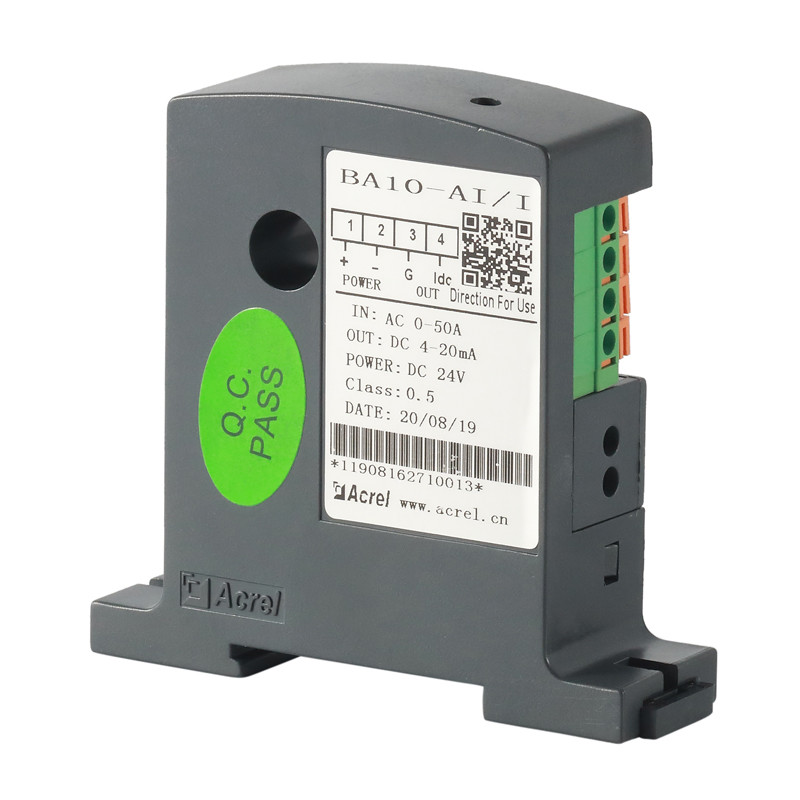

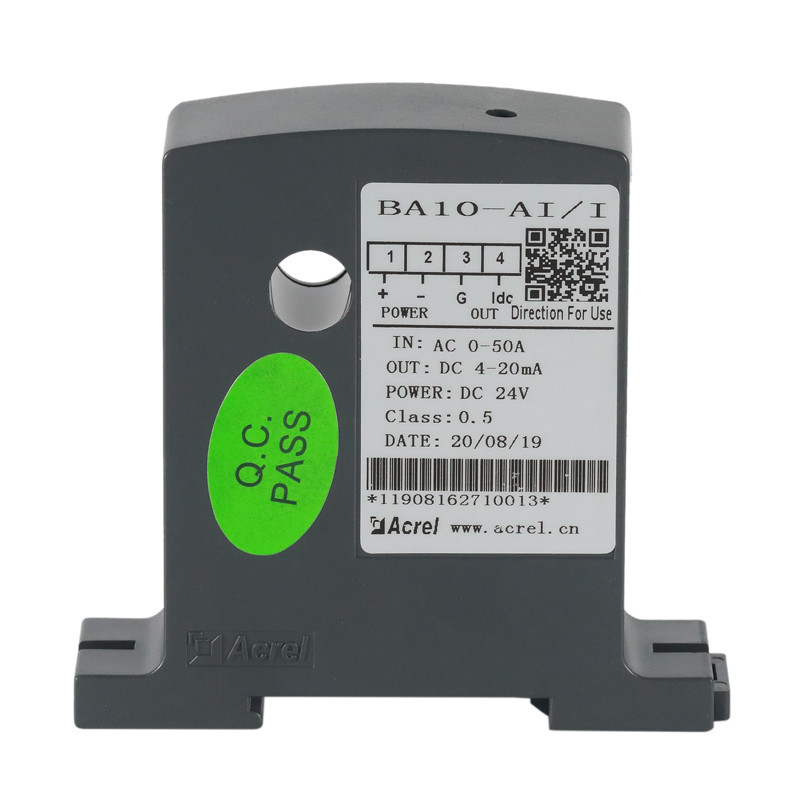

high precision BA10-AI/I Electric Current Sensor φ5mm-50mm Through hole Size

Minimum Order Quantity : 1 pcs Price : USD 31-67/pcs
Packaging Details : Individually packed in big carton Delivery Time : 3 days
Supply Ability : 10000/month
Place of Origin: China Brand Name: Acrel
Certification: CE Model Number: BA10-AI/I

Detail Information

Auxiliary Power: DC 12V/DC 24V Comsumption: ≤1W
Through Hole Size: φ5mm-50mm Output Current: DC 4-20mA 0-20mA 0-5V 0-10Vetc
Accuracy Class: 0.5% Ronsponse Time: ≤350ms
Temperature Coefficient: ≤200ppm/℃ Standards: GB/T 13850
High Light:

BA10-AI/I Electric Current Sensor


Electric Current Sensor 50mm


BA10-AI/I high precision current sensor

Product Description

BA series Current Transducer are mainly used in industrial automation, it can measure AC current up to 600A directly.

Technical Features


Technical parameter ADL100-EY
Voltage Reference voltage 3*220/380V
Reference frequency 50Hz
Consumption <4VA(Each phase)
Current Input Current 1(6)A,10(80)A
Starting Current Connect directly: 0.004 Ib, connect via CT: 0.002In
Consumption <4VA
Measurement performance Accuracy of measuring 0.5Class
Clock accuracy Error ≤0.5s/d
Active pulse Pulse width 80ms±20ms
Pulse constant 6400imp/kWh,400imp/kWh
Communication Interface RS485(A+,B-)
Connection mode Shielded twisted pair conductors





high precision BA10-AI/I Electric Current Sensor φ5mm-50mm Through hole Size 0
